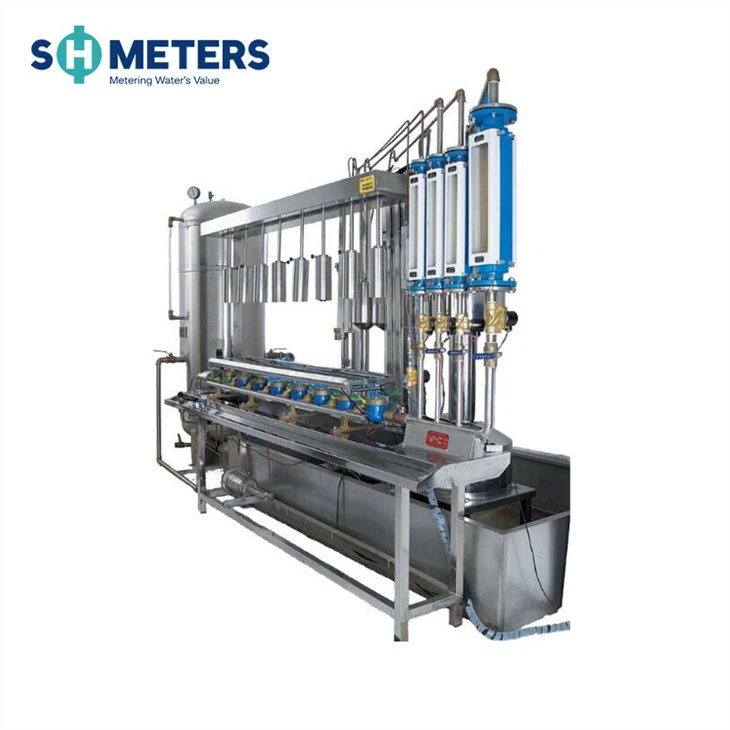

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of woltman water flow meter test bench in China. If you're going to wholesale high quality woltman water flow meter test bench, welcome to get pricelist and quotation from our factory.
Main Characteristics
1. It has the advantages of combining the static mass method with the standard meter method, sharing water source, test pipeline and control system, simple structure, convenient operation, high detection efficiency, economical and practical, and moderate accuracy, to improve the detection reliability of standard meter in normal operation.
2. Rational range ratio makes the accuracy of the whole measurement range better than 0.02%.
3. Using a frequency conversion speed controller, the speed of the pump is stable, improves the stability of the device, and achieves a remarkable energy-saving effect.
4. Hand-controlled pneumatic meter clamp (safety self-locking), electric drain valve, electronically controlled pneumatic commutator, automatic weighing control, static reading automatic conversion to volume value, in order to achieve computer data processing and printing results, detection process programming control.
5. The device is divided into DN50-DN150 mm tube-changing type and a set of independent stations to adapt to the detection of various flow meters.
Size | 3500 mm*1500 mm*2400 mm. |
Weight | 1000KGS. |
Motor | 2.2KW. 380V, 3 phase, 50Hz. |
Performance | 1. Test quantity: DN15 8pcs; DN20 7pcs; DN25 6pcs 2. Accuracy: ≤0.2% |
After-sale Service | ·Warranty Period: 1 year. ·Install Assistant. ·Extra set of wearing parts. |
Feature
2.1 The tester bench accuracy: 0.2.
2.2 Tested water meter size:15, 20, 25.
2.3 Technical criteria for water meter testing: used for full capability test or production and maintenance.
2.4 Instantaneous flow index gauge is adopted glass rotor flowmeter group, the actual measurement accuracy not less than 2.5%.
2.5 Working volume container cubage:
15-25mm,(10L+10L)20L,(50L+50L)100L,(300L+200L)500L.
2.6 Using water source working pressure: 0.3-0.5MPa.
2.7 Clamp equipment flex distance is: 60mm(15-50mm tester).
