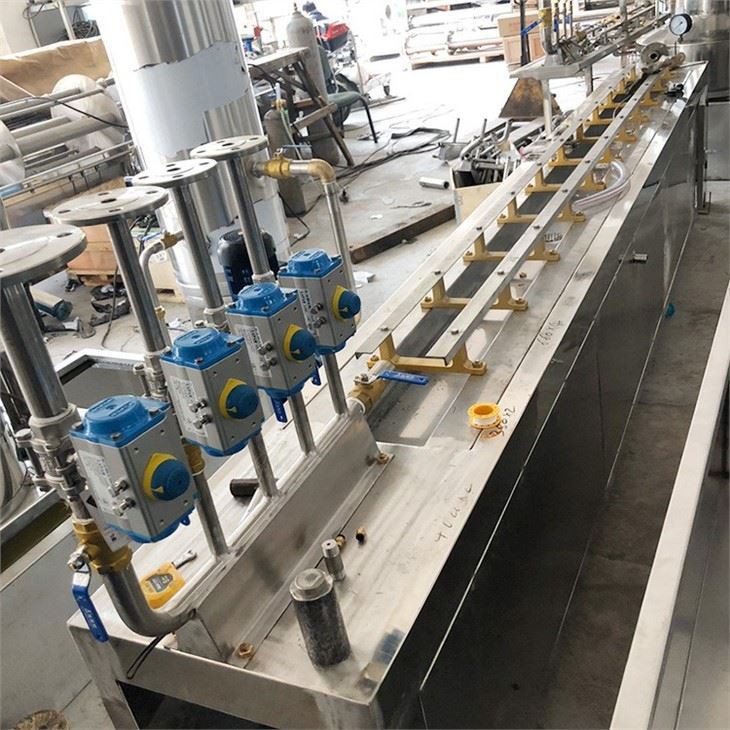

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of single series water meter test bench dn15-dn25 water meter testing machine in China. If you're going to wholesale high quality single series water meter test bench dn15-dn25 water meter testing machine, welcome to get pricelist and quotation from our factory.
Size and Weight
· Size: 3500mm*1500mm*2400mm.
· Weight: 1000KGS.
Component Part
SHM25-1 Single Series with Compression Tester With 1 set 15-25 Straight Tube.
· Measuring device is 2 double gourd structures, SS304 material.
· Work table and water bucket material is 304 stainless steel plate, a thickness of 1.5mm. Integral pressing forming.
0.5 CBM Source Stability Device. SS304 Material, the thickness of 3mm.
Stainless Steel Water Tank 2200x1020x400mm SS304 Material, a thickness of 1.5mm.
Filter.
Piping Pump (support variety of pumps, could choose in your country).
Stainless Steel Pipe Fittings include a Shockproof Soft Connection, flange, and valve (pump to the tank to source stability device to water meter tester).
Motor: 2.2KW. 380V, 3 phase, 50Hz.
Performance
Test quantity: DN15 8pcs; DN20 7pcs; DN25 6pcs Accuracy: ≤0.2%
After-sale Service
·Warranty Period: 1 year.
·Install Assistant.
·Extra set of wearing parts.
This water meter test bench is used to test water meter according to relevant international standard ISO 4064, in order to find out if the water meter is Accepted or Rejected.
Features of Water Meter Test Bench
- optional 1 row, 2 rows, 4 rows
- 6 meters per row dn15, 5 meters per row dn20, 4 meters per row dn25
- each row work independently
- test Qmax, Qn, Qt, Qmin or full error curve
- optional with/without pressure test
