The water meter verification device can perform flow verification on various water meters (ordinary, electronic, and other methods). It is not only suitable for the factory verification of water meters by various water meter manufacturers but also suitable for the routine inspection of water meters by various water meter verification units and water companies. Verification, rapid first inspection, and type verification;
After years of continuous innovation, improvement, testing, and use of S.H.Meters, the company has introduced a large number of advanced technologies, improved manufacturing processes, optimized product design, and performance, accumulated rich practical experiences, and broke through domestic traditions in many aspects (the design idea of the flow verification device);
The device has four automatic meter reading methods: infrared meter reading, MBUS meter reading, RS485 meter reading, and high-speed camera sampling, and can be verified by quality method and standard meter method. Reliability; the device not only has the function of flow verification but also has the functions of pressure test and pressure loss measurement;
The device consists of a flow verification system, an automatic data collection and processing system, an electrical control system, a water meter pressure test device, and a water meter pressure loss test device;

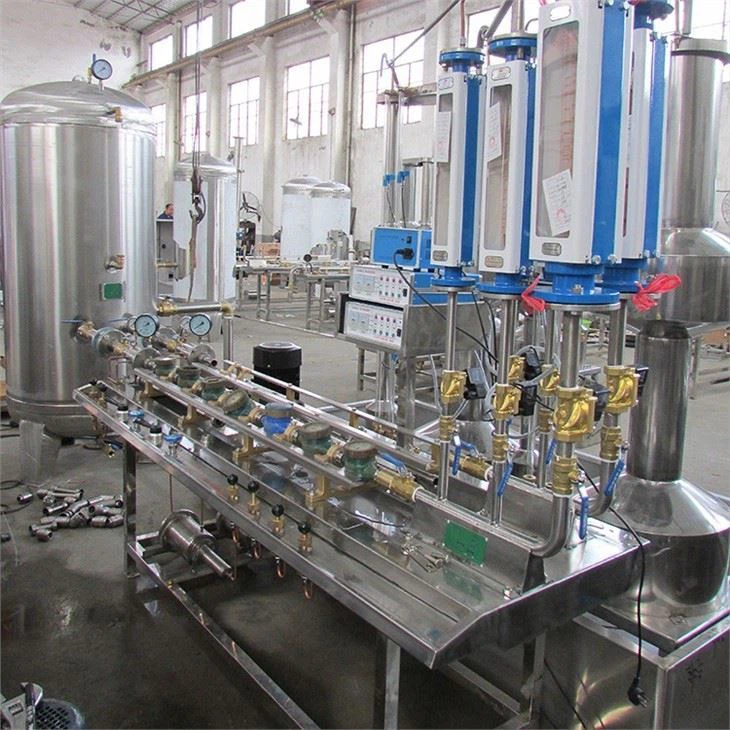

The flow verification system consists of a working water tank, a circulating water pump, a pressure stabilizing tank, a test pipeline system, a flow meter, a flow valve, a temperature measuring system, and an electronic scale. All main components are made of 304 stainless steel;
The automatic data collection and processing system is mainly composed of the upper computer system and the unit control module;
The electrical control system is mainly composed of standard electric control cabinets, switching power supplies, AC contactors, transformers and air switches;
The pressure test device is mainly composed of a booster cylinder, a pressure gauge and a silent air pump;
The pressure loss measurement device is mainly composed of a capacitive differential pressure transmitter and supporting instruments.
Product Performance
Save energy, save water, save electricity, save labor;
Small size: saving space, full automation, shared network, saving auxiliary materials;
Novel structure: 304 stainless steel material, novel appearance;
Features of Water Meter Test Bench
- optional 1 row, 2 rows, 4 rows
- 6 meters per row dn15, 5 meters per row dn20, 4 meters per row dn25 or dn32, 1 meter per row dn40 or dn50
- each row works independently
- test Qmax, Qn, Qt, Qmin, or full error curve
- optional with/without pressure test
Product Details

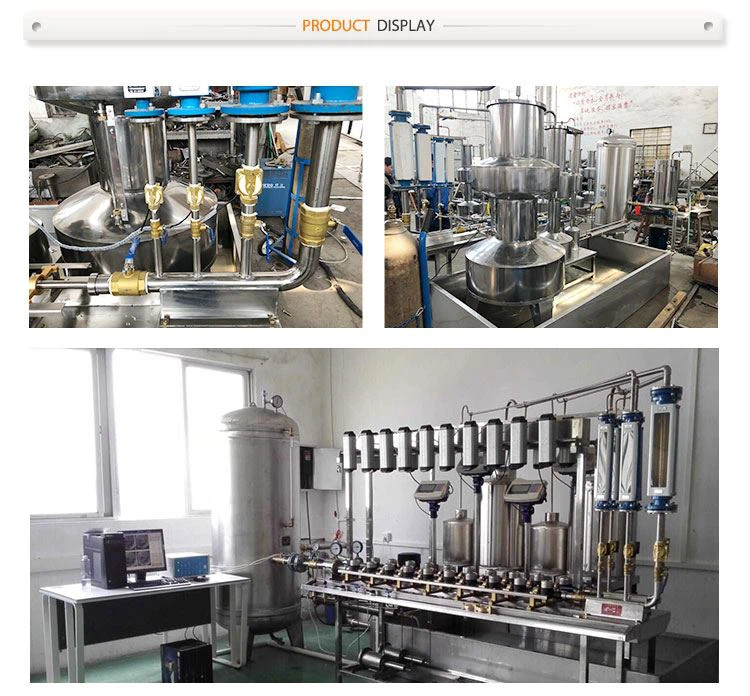

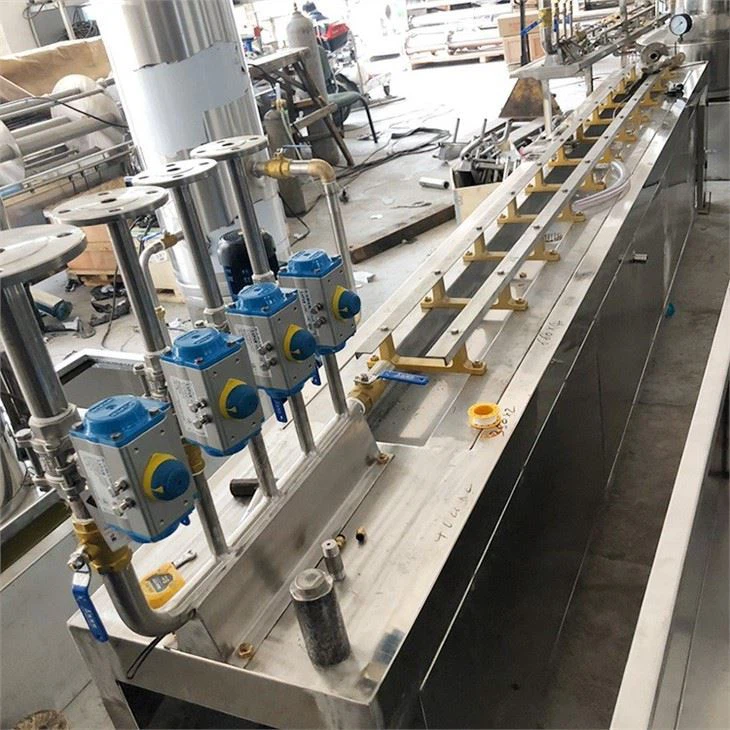

Product Name | Double Series Manual Water Meter Test Bench |
Size | 4000mm*2000mm*2400mm |
Weight | 1150KGS |
Material | SS304 |
Model | SHM25-2 |

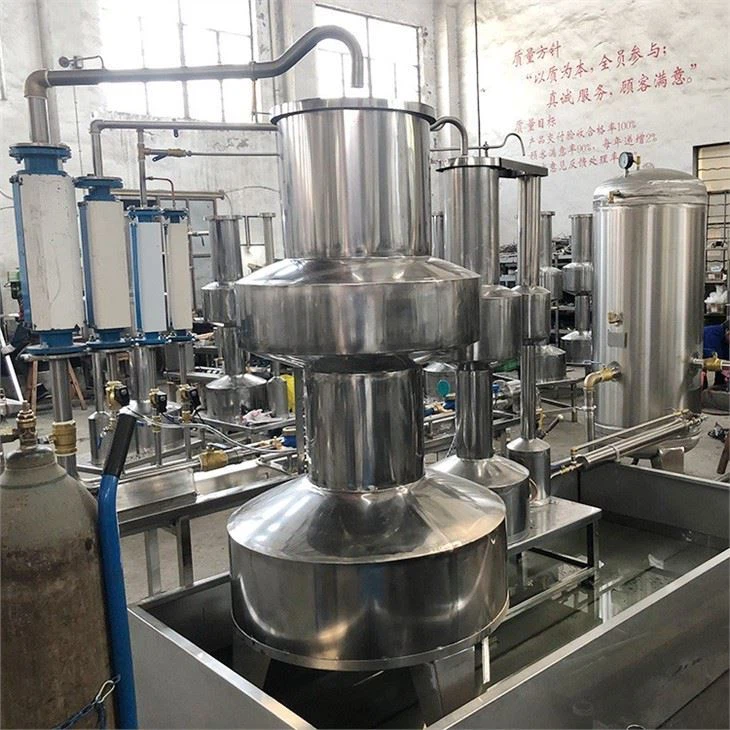

Measuring Device | 4 double gourd structures |
Rotameter Groups | Six flow meters (3 per set) |
Workbench and Bucket materials | 304 stainless steel plate |
Table and Bucket Thickness | 1.5mm |
Telescopic Clamp Meter Device Material | copper, stainless steel |
Pipeline Pump | Support a variety of pumps, you can choose according to your needs |
Stainless Steel Pipe Fittings | Vibration-proof flexible connections, flanges, and valves (pump to tank to source stabilizer to water meter tester) |
Motor | 3KW. 380V, three-phase, 50Hz |
Test Quantity Calibrate | DN15 10*2; DN20 8*2; DN25 7*2 |
Test Quantity Calibrate Q4 | Calibrate 1 row at a time |
Accuracy | ≤0.2% |
Warranty Period | 1 year |
