MULTI-JET TYPE

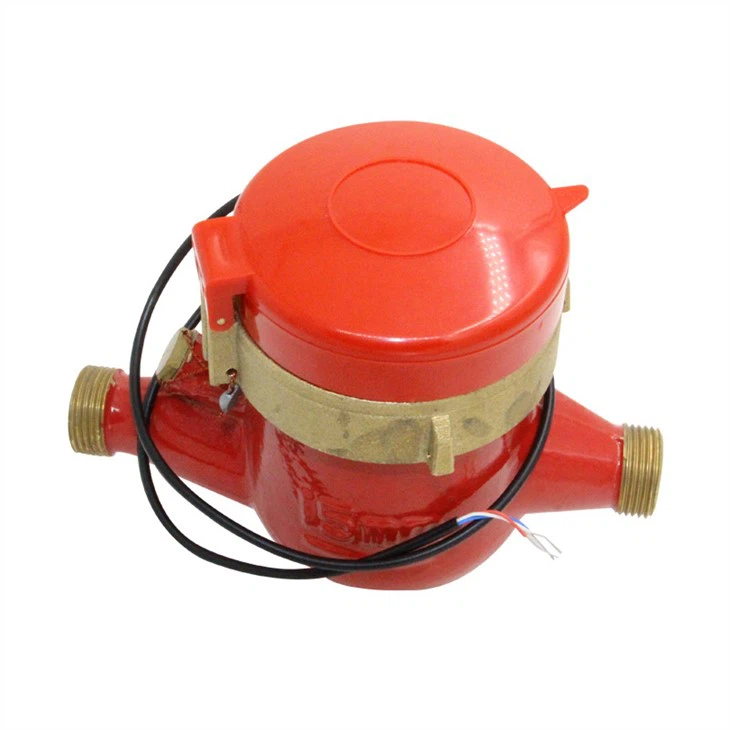

Dry-dial Brass Body Hot Water Meters
Feature of hot domestic multi jet water meter
1. Hot water meter, dry-dial, magnetic drive for dry dial, Resistance to exterior magnet interference.
2. Multi-jet.
3.Steady, reliable function, long life use and nice appearance, universal used.
4. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
5. Measuring accuracy conform to ISO 4064 class B Standard.
6. Inner or outer adjusting device for option.
7. Brass body, high quality
Working Condition:
Water temperature:≤90°C for hot water meter
Working pressure:≤1Mpa
Maximum Permissible error:
a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%
b) If the temperature≤30°C, in the upper zone from Q2 inclusive up to and including Q4 is ±2%
c) If the temperature>30°C, in the upper zone from Q2 inclusive up to and including Q4 is ±3%
Overall Dimension And Weight
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Technical Data
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Q4(l/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |
Q3(l/h) | 2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
R=80 | Q2(l/h) | 50 | 80 | 126 | 200 | 320 | 400 |
Q1(l/h) | 31.25 | 50 | 78.75 | 125 | 200 | 250 | |
R=100 | Q2(l/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
Q1(l/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
R=125 | Q2(l/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 200 |
Q1(l/h) | 20 | 32 | 50.5 | 80 | 128 | ||
R=160 | Q2(l/h) | 22.5 | 40 | 63 | 100 | 160 | 400 |
Q1(l/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 250 | |
Max.Reading(m³) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
Min.Reading(Liter) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max.Pressure(Bar) | 16 | 16 | 16 | 16 | 16 | 16 | |
Pressure Loss | 63 | ||||||
Max.Temperature | T=50/90 | ||||||
Pulse Output Option | Vmax=24V | ||||||
Imax=100mA | |||||||
Pmax=2W | |||||||
Warranty of Hot Domestic Multi Jet Water Meter
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
