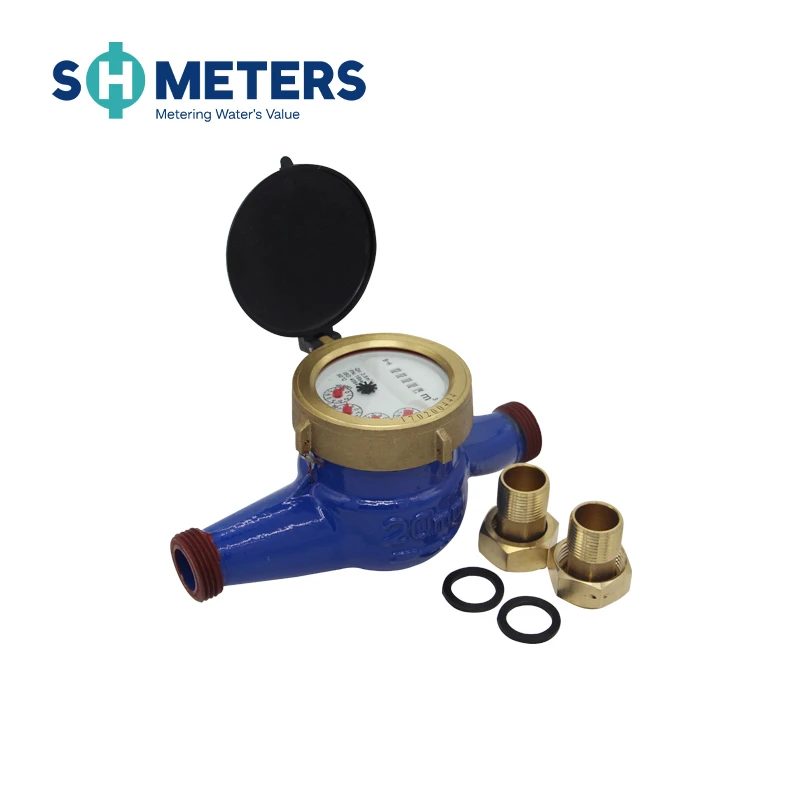

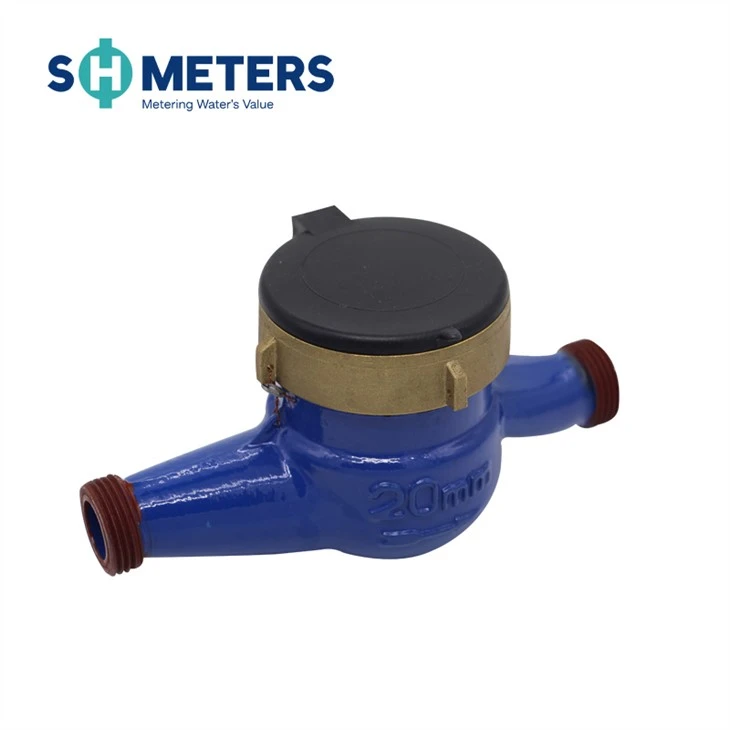

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15~dn50 cold cast iron multi jet water meter in China. If you're going to wholesale high quality dn15~dn50 cold cast iron multi jet water meter, welcome to get pricelist and quotation from our factory.
Features of iron multi jet water meter
* Magnetic drive, lower transmission resistance, frog-resistant.
* Magnetic shield, for external magnetic field protection
* Evacuated and sealed dry dial register ensures clear reading
* Internal strainer, inlet strainer for selecting
* The register can be 5 rollers and 4 pointers or 8 rollers and 1 pointer.
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=80 ; 100; 125; 160;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Cast iron
·Brass working pressure: PN16(16bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
