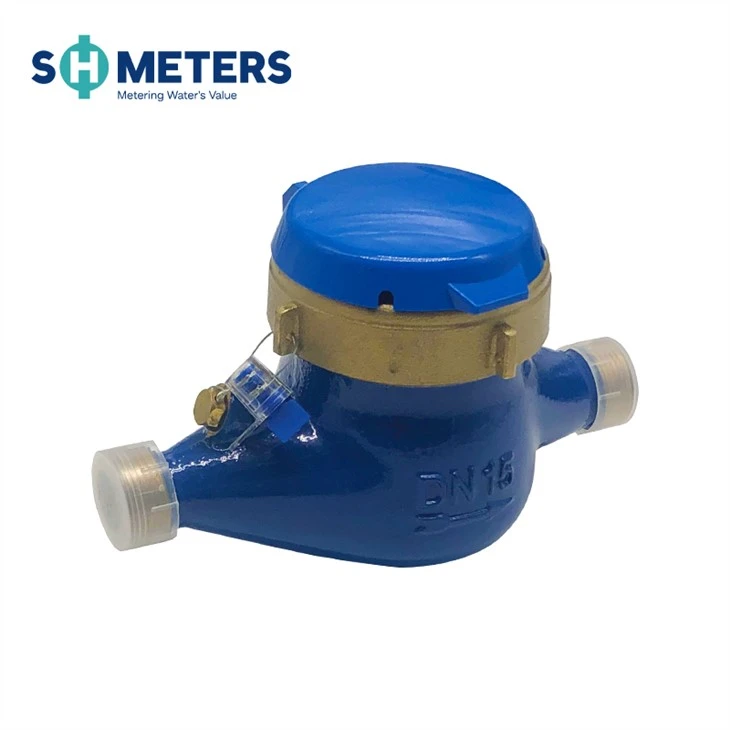

Dry-Dial Brass Body Water Meters
Maximum Permissible Error
· In the lower zone from qmin inclusive up to but excluding qt is ±5%.
· In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
· Water temperature: 0.1℃～50℃ for cold water meter.
· 0.1℃～90℃ for hot water meter.
· Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size (inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length (L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width (W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height (H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B | Flange end |
Weight (kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Central Gear
The center gear is equipped with four samarium cobalt magnets,which are not easy to weathering,degaussing and losing data.This ensures the life of the central transmission part of the water meter and the accuracy of measurement.
Dial Cover
The counter disc is made of POM, white porcelain, clear reading and durable service life. Fixed with screws,easy to replace.With double reed switch design, if one of them is damaged,it can still work normally.
Anti Magnetic Ring
When the reed switch is installed,the anti-magnetic ring is added, the pig iron material is required, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,which ensures the stable output of the pulse signal.
Turbine Component
The impeller shaft is made of stainless steel, agate, bushing and corundum.The service life and accuracy are guaranteed.
Transmission Gear
High precision die,1 million sets will be replaced to ensure small error,high throughput, and ensure the accuracy of water meters and delivery time.
Technical Data
DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
Size (inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Q4(l/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |
Q3(l/h) | 2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
R=80 | Q2 (l/h) | 50 | 80 | 126 | 200 | 320 | 400 |
Q1 (l/h) | 31.25 | 50 | 78.75 | 125 | 200 | 250 | |
R=100 | Q2 (l/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
Q1 (l/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
R=125 | Q2 (l/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 200 |
Q1 (l/h) | 20 | 32 | 50.5 | 80 | 128 | ||
R=160 | Q2 (l/h) | 22.5 | 40 | 63 | 100 | 160 | 400 |
Q1 (l/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 250 | |
Max. Reading (m3) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
Min.Reading (Liter) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max.Pressure (Bar) | 16 | 16 | 16 | 16 | 16 | 16 | |
Pressure Loss (⊿P) | 63 | ||||||
Max.Temperature | T=50 /90 | ||||||
Pulse Output Option | Vmax=24V | ||||||
Imax=100mA | |||||||
Pmax=2W | |||||||
Pulse Output Option
Magnet Position | Liter /Pulse |
* 0.0001 | 1 |
* 0.001 | 10 |
* 0.01 | 100 |
* 0.1 | 1000 |
