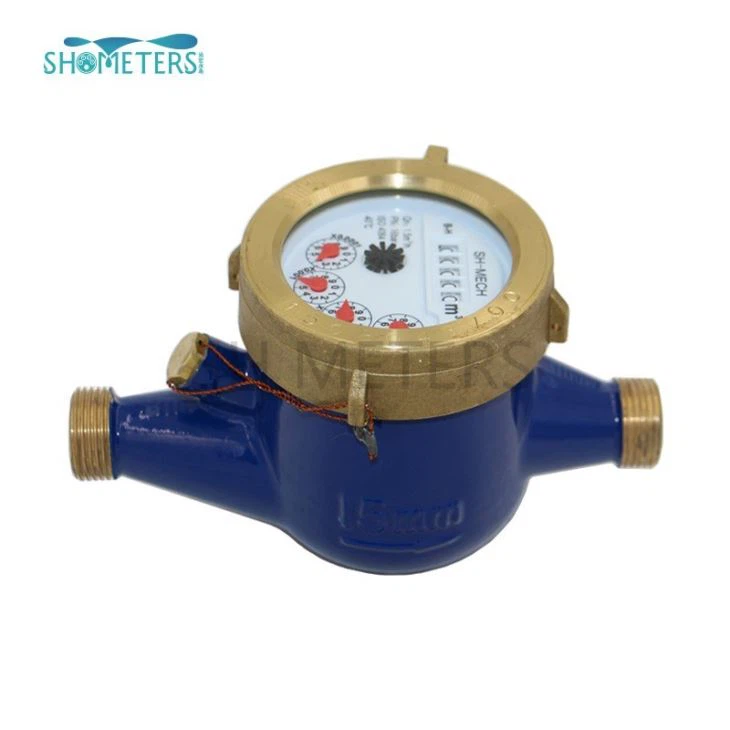

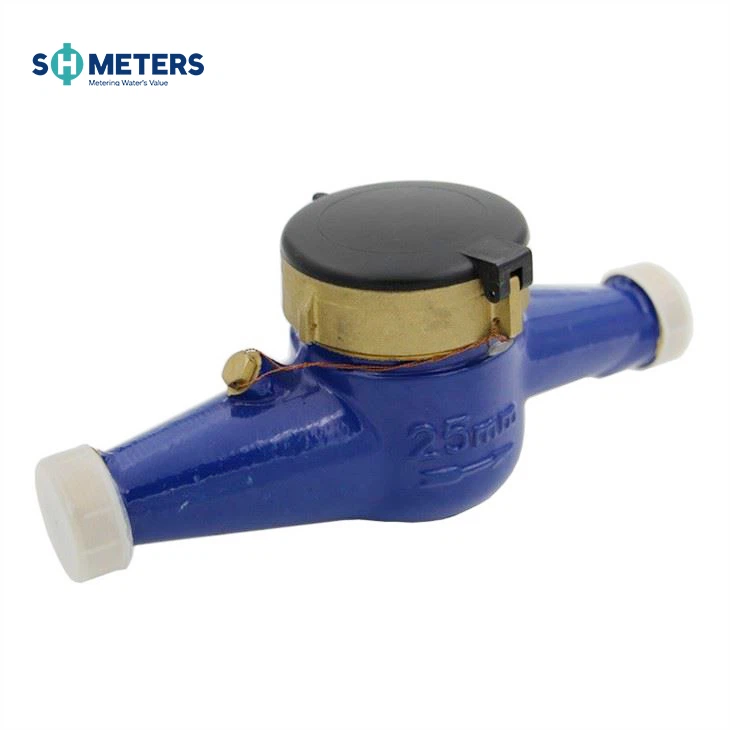

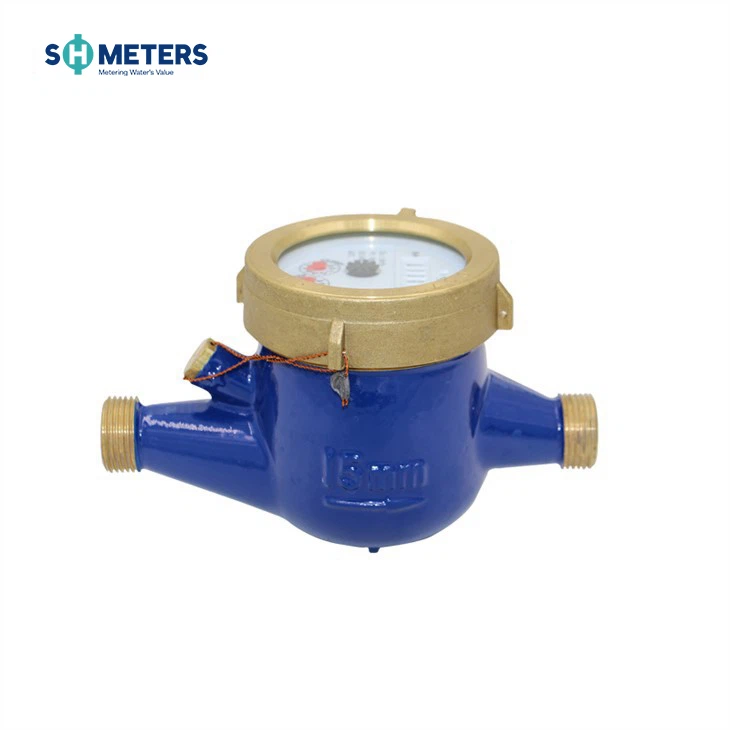

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of brass body multi jet water meter in China. If you're going to wholesale high quality brass body multi jet water meter, welcome to get pricelist and quotation from our factory.

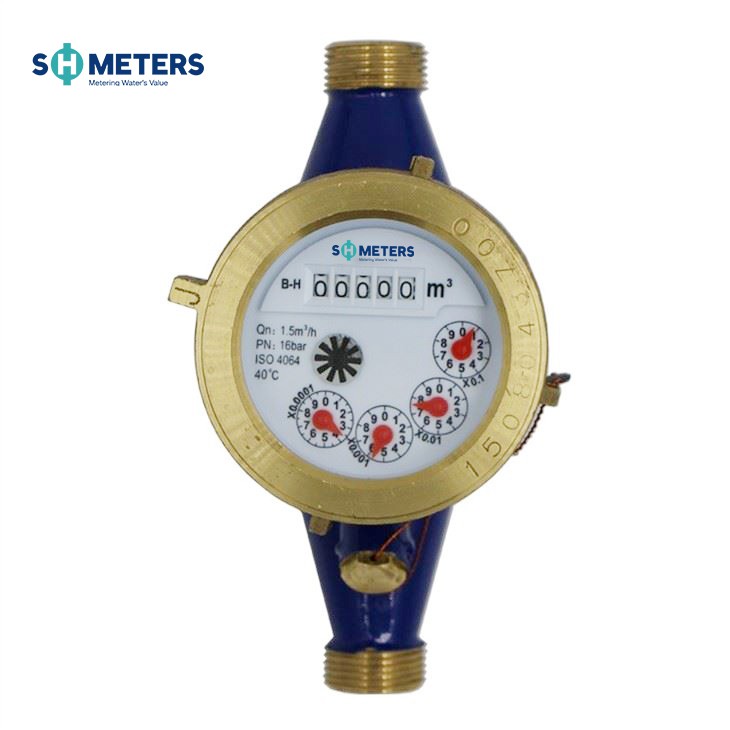

The multi-flow meter is a meter that records the water consumption of the tap water and is installed on the water pipe. When the user releases the water, the pointer or the character wheel on the watch rotates to indicate the amount of water passing through.
Features:
1. Magnetic drive with anti-magnetic function
2. Divided into multiple streams in the water meter
3. Water meter uses high quality materials to make performance more stable and reliable
4. The counter is vacuum sealed, anti-condensation atomization, and can keep readings clear for a long time.
5. Measurement accuracy can reach ISO 4064 Class B standard
6. The water meter has strong versatility and is easy to replace and repair.
M echanism, , Shell （ connections ）, Reed switch
The part that most affects accuracy- the Mechanism, which is divided into counting
part and measuring part.
We have 12 years of export and manufacturing experience, and we will be more professional in product production and system functions. In peacetime, we have a variety of company team building culture, colorful tea parties and book clubs. In a warm and harmonious atmosphere, we will bring you quality service.
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=80 ; 100; 125; 160;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Brass,Brass interface,Brass material
·Brass working pressure: PN16(16bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Pulse Output Option
Magnet Position | Liter/Pulse |
*0.0001 | 1 |
*0.001 | 10 |
*0.01 | 100 |
*0.1 | 1000 |
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
