Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of mid,oiml r160 multi jet water meter for residential in China. If you're going to wholesale high quality mid,oiml r160 multi jet water meter for residential, welcome to get pricelist and quotation from our factory.
Multi-Jet water meter Description
The multi-jet water meter is a meter that records the water consumption of tap water. It is installed on the water pipe. When the user releases water, the pointer or character wheel on the meter rotates to indicate the amount of water passing.
Multi-Jet water meter features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Multi-jet water meter accuracy: R=160.
·Size: 15~20mm.
·Cold water.
·Non-return valve.
·Reed switch option.
·Several lengths and connections available on request.
·Thread end type: BSP / NPT.
·Materials: Brass, Brass interface, Brass material.
·Brass working pressure: PN16(16bar).
·Provide pulse output/RS-485 Modbus/wired remote/pulse splitter/pulse read display.

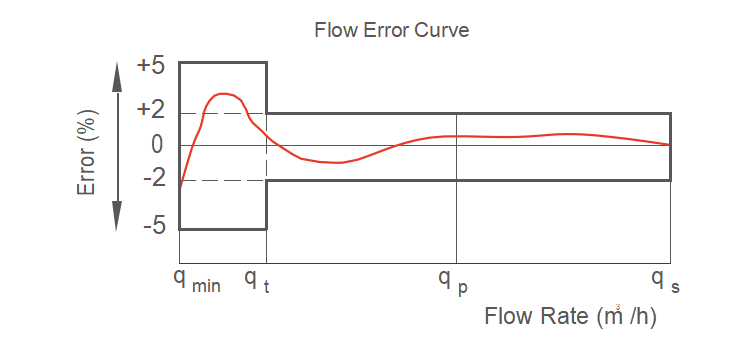

Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for the hot water meter.
Standards Compliance
Technical data conforms to the international standard ISO 4064.
Working Conditions
- Water temperature: 0.1℃~50℃ for the cold water meter.
- 0.1℃～90℃ for the hot water meter.
-
Water pressure: ≤16bar for brass body≤10bar for plastic body
Overall Dimension And Weight
|
DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
50 |
|
Size(inch) |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2" |
|
Length(L) |
165/190 |
190 |
260 |
260 |
300 |
300 |
280 |
|
Width(W) |
98 |
98 |
103.5 |
103.5 |
125 |
125 |
160 |
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
187.5 |
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B |
Flange end |
Multi-jet water meter application
Residential:
Installed on household or building water pipes to measure cold or domestic water consumption.
Multi-jet water meters are highly accurate at low flow rates, making them very suitable for daily household water usage.
Commercial and small industrial water use:
Used in shops, offices, restaurants, factories, and small pipelines.
They require accurate water measurement but have relatively low flow rates, making multi-jet water meters ideal for small to medium-sized pipelines.
Situations requiring high measurement accuracy:
Multi-jet water meters maintain measurement accuracy even at low flow rates, making them more reliable than standard single-jet water meters.
Suitable for applications such as groundwater well outlets, branch pipelines in industrial parks, and billing water meters.
Environments with dirty or abrasive water:
The multi-jet structure distributes impact evenly on the impeller, reducing wear.
