Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi jet household water meter in China. If you're going to wholesale high quality multi jet household water meter, welcome to get pricelist and quotation from our factory.

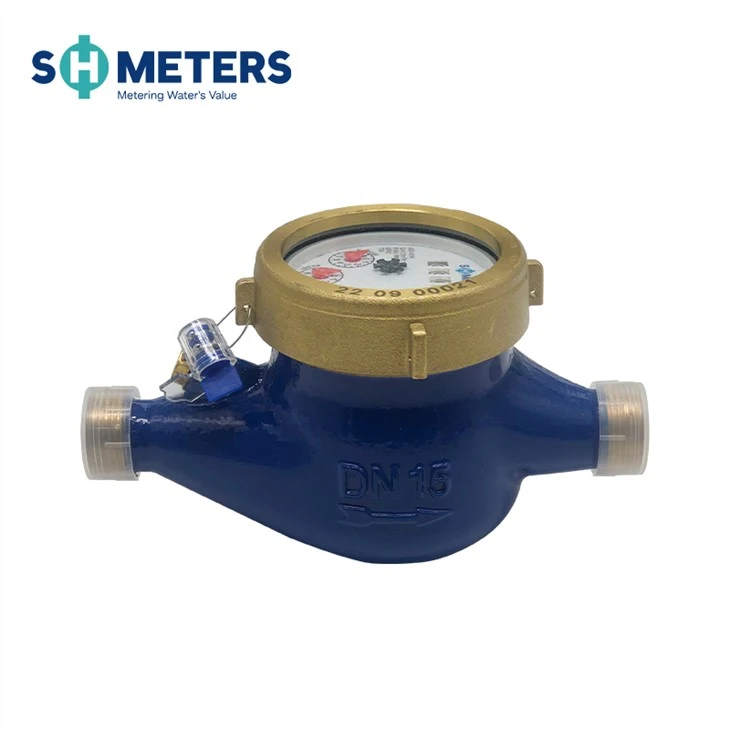

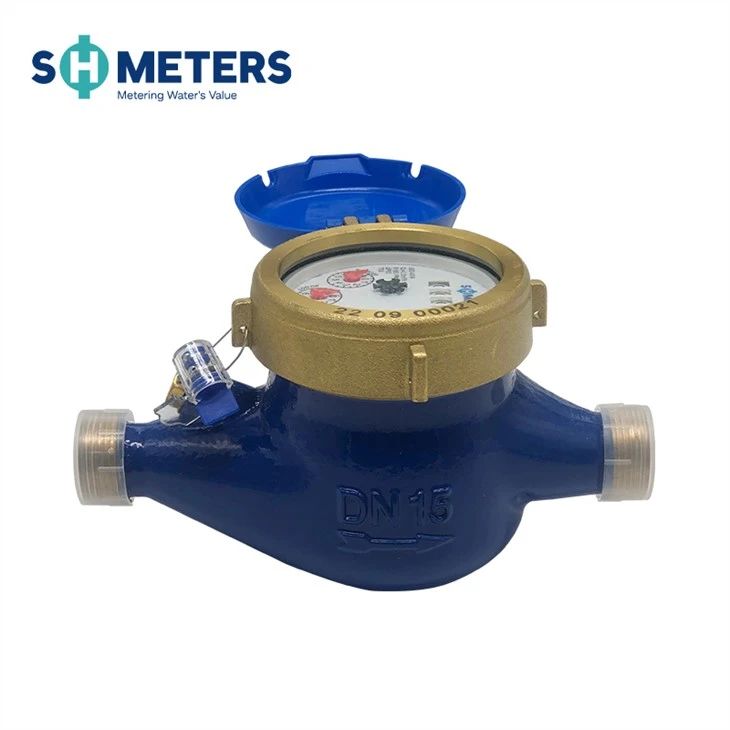

The multi jet household water meter is suitable for residential water. The water meter uses liquid sealing technology, which has a strong waterproof and moisture-proof effect.
Features of multi-flow meters:
1. Smaller initial flow: the initial flow is less than 05L/h.
2. Strong adaptability to water quality: The anti-drip mechanism will not be blocked or stuck by impurities under 4mm in the water.
3. Good anti-stall performance: the sealing of the soft diaphragm and anti-drip mechanism can offset the water hammer pressure, and has good anti-stall performance performance.
4. High measurement accuracy: intermittent measurement in the trace state of 0.5L/h~8L/h, and the measurement error within this trace range is small.
5. Direct transmission is not affected by the magnetic field, the transmission resistance is small, the operation is sensitive and reliable, the range is large, and the measurement accuracy is high.
Product parameters：
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 |
Size(inch) | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 |
Width(W) | 99/104 | 98 | 103.5 | 103.5 | 125 | 125 |
Height(H) | 116/121 | 117 | 124 | 124 | 162 | 162 |
Connecting Thread D | G3/4B | G1B | G1 1/4B | G1 1/4B | G2B | G2 1/2B |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
