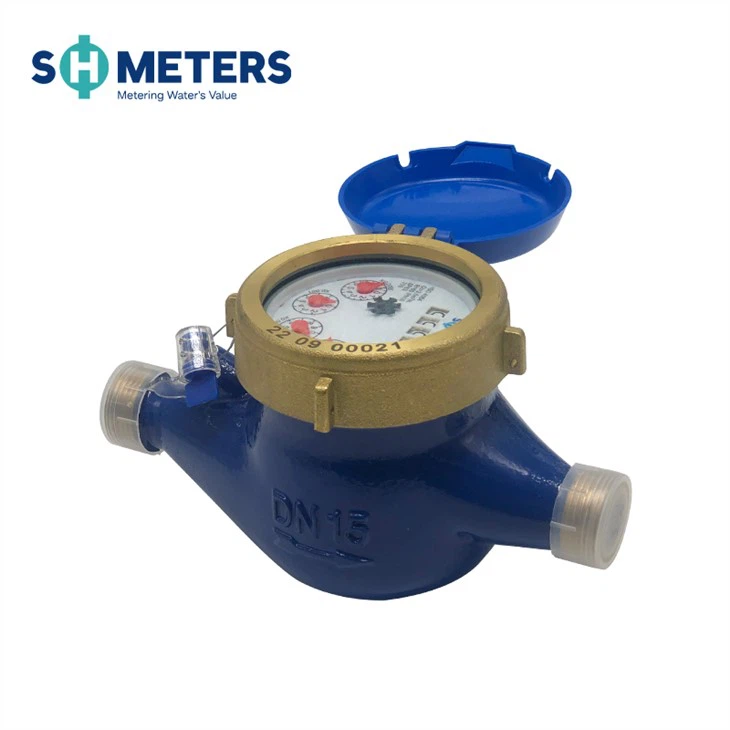

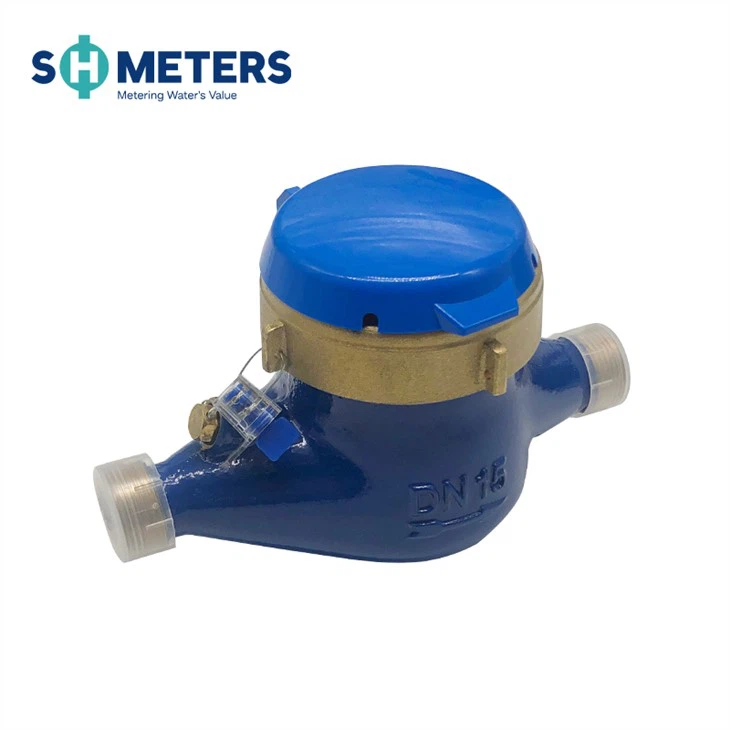

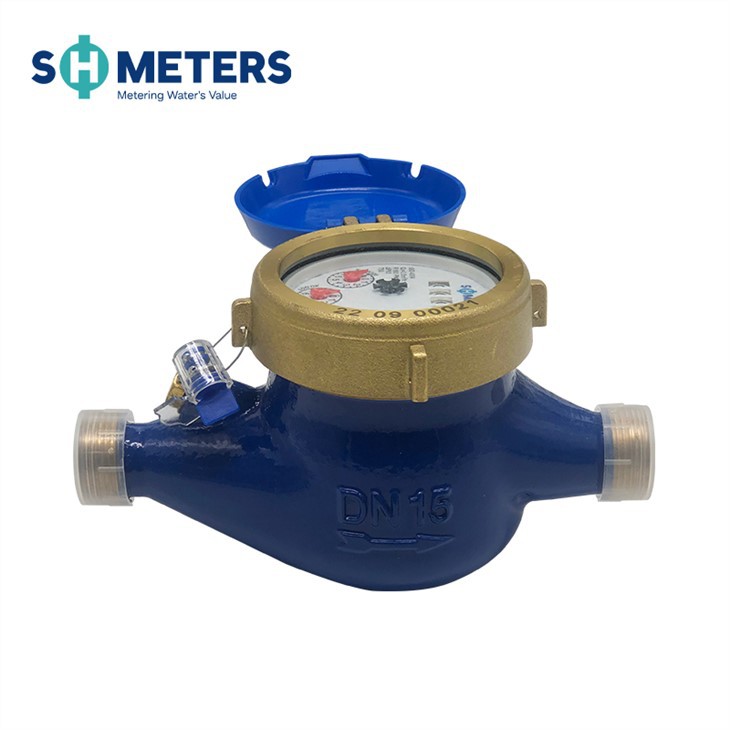

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of MID,OIML Multi Jet Water Meter R200 SH1210 in China. If you're going to wholesale high quality MID,OIML Multi Jet Water Meter R200 SH1210, welcome to get pricelist and quotation from our factory.
Multi-jet water meter Description
The multi-jet water meters from S.H. Meters are not only highly accurate and reliable, but also come with metering solutions to ensure efficient and precise water data collection in various environments. Our metering solutions offer two flexible collection methods to meet different needs:
1. wM- Bus Collection: The wM- Bus Reader connects to an industrial handheld device via Bluetooth to wirelessly collect water meter data, which is then uploaded to the management platform.
2. Image-Based Collection: The handheld device scans the meter's NFC tag for quick identification, captures a photo, and performs smart meter reading using image recognition, with results automatically uploaded to the platform.
Multi-jet water meter features
- S.H. Meters' multi-jet water meters have passed MID and OIML certifications.
- Magnetic Drive, Low Transmission Resistance: The magnetic drive system effectively reduces friction loss, improving the transmission efficiency of the multi-jet water meter, ensuring accurate and stable readings. Additionally, low transmission resistance means that the water meter can maintain high operational efficiency over long-term use, extending the meter's lifespan.
- Magnetic Shielding, Protecting from External Magnetic Fields: The magnetic shielding design ensures that the internal magnetometer of the water meter is not affected by external magnetic fields.
- Sealed Dry Dial, Ensuring Long-term Clear Readings: The sealed dry dial features a sealed design that effectively prevents moisture, dust, and other contaminants from entering, ensuring that the dial remains clear and readable over time.
- Check Valve: The check valve design prevents water from flowing backward, ensuring that the water meter only records forward flow, avoiding errors or double-counting.
- Multiple Lengths and Connection Types Available (Upon Request): Depending on the installation environment and requirements, the multi-jet water meter can offer various lengths and connection types to accommodate different piping systems.
Multi-jet water meter technical
|
Nominal Diameter (mm)
|
15 | 20 | 25 | |
|
Size (inch)
|
1/2"
|
3/4"
|
1"
|
|
|
Q4(l/h)
|
3125 | 5000 | 7875 | |
|
Q3(l/h)
|
2500 | 4000 | 6300 | |
|
R=160
|
Q2 (l/h) | 25 | 40 | 63 |
| Q1 (l/h) | 15.62 | 25 | 39.37 | |
| R=200 | Q2 (l/h) | 20 | 32 | 50.4 |
| Q1 (l/h) | 12.5 | 20 | 31.5 | |
|
Max. Reading (m3)
|
99,999
|
99,999
|
99,999
|
|
|
Min.Reading (Liter)
|
0.05
|
0.05
|
0.05
|
|
|
Accuracy Class
|
Class2
|
|||
|
Temperature Class
|
T30
|
|||
|
Maximum Admissible
Pressure
|
PN16
|
|||
|
Pressure Loss Classes
|
0.63bar
|
|||
|
Pulse Output Option
|
Vmax=24V
|
|||
|
Imax=100mA
|
||||
|
Pmax=2W
|
||||

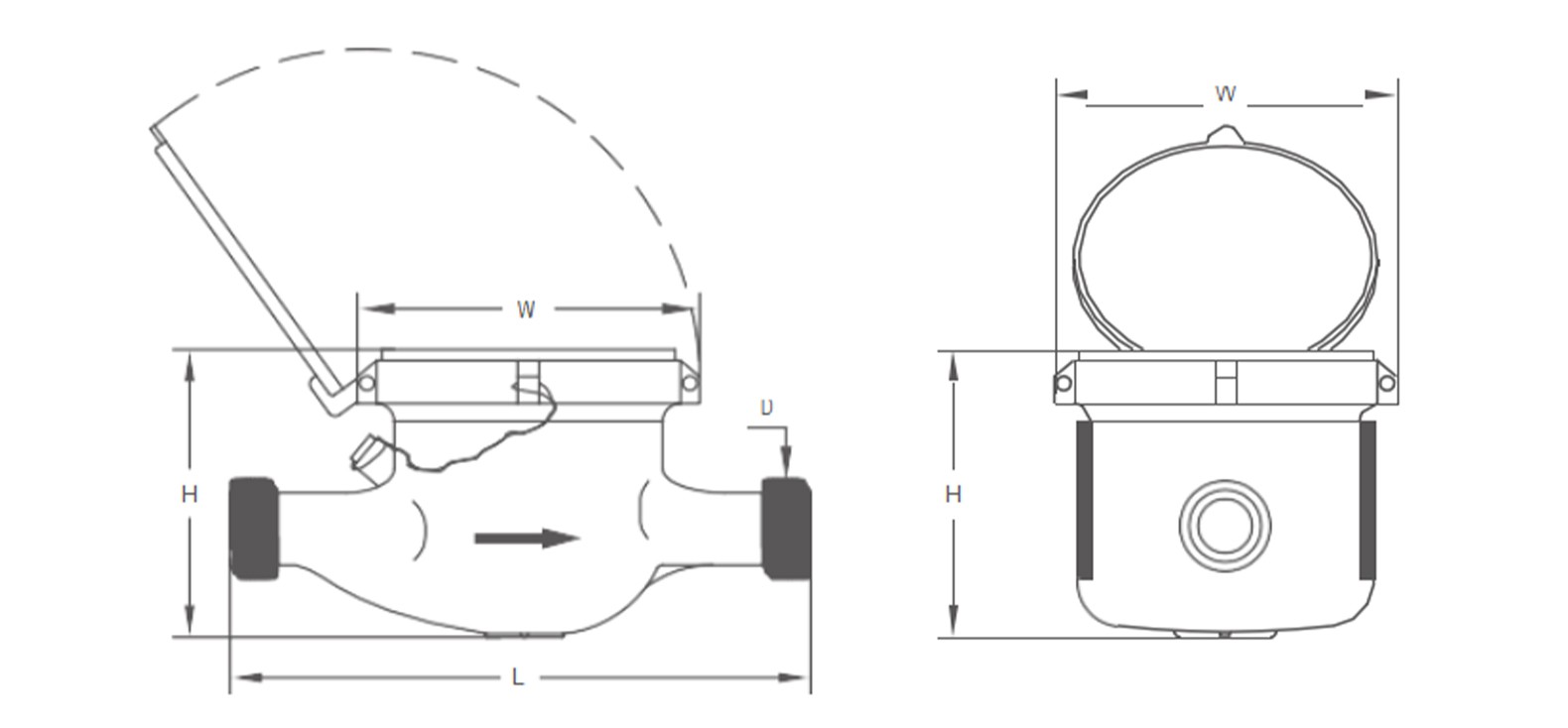

Multi-jet water meter Overall Dimension and Weight
|
DN(mm) |
15 |
20 |
25 |
|
Size(inch) |
1/2" |
3/4" |
1" |
|
Length(L) |
165/190 |
190 |
260 |
|
Width(W) |
98 |
98 |
103.5 |
|
Height(H) |
116 |
117 |
124 |
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
Multi-jet water meter Working Conditions
Water temperature: 0.1℃～50℃ for the cold water meter.
FAQ
Q: Do your multi-jet water meters have certifications?
A: Yes, our multi-jet water meters have passed MID and OIML certifications.
Q: Could we have our logo printed on the water meters?
A: Yes, customization is supported
Q:Do you have multi-jet water meters with a 360-degree rotating dial?
A:Yes, R100.
Q: How long is the warranty?
A: All water meters are covered by a warranty against defects in workmanship and materials for one year from the date of acceptance. Defective water meters or components identified during this period will be replaced free of charge upon their return to S.H.Meters.
Q: What is the delivery time?
A: 15-20 business days. The exact delivery date is subject to production schedules
Multi-jet Water Meter Certification
after-sales support
