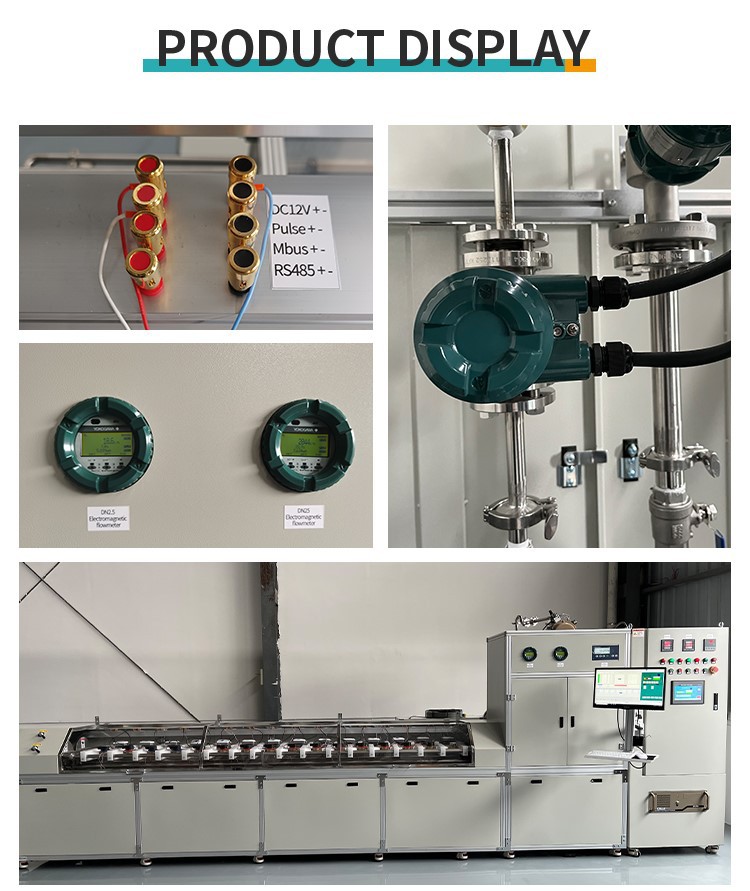

The verification device automates the reading of flow rates from both the tested water meter and the standard container. It can automatically switch between different flow rates, calculate errors, and generate printed reports after verification. The entire verification process is automated, making the verifier's job much easier. Once the user's verification settings are configured, they can simply click the "Start Verification" button, and the computer will automatically control the detection process until the end of each water volume verification. The device offers the following features:
Automatic water measurement: real-time reading of standard container flow data.
Automatic pressure resistance: After automatically increasing the pressure to the pressure resistance point, it will be maintained for a specified time and then automatically restored.
Automatic water stop and water release: the computer controls the valve to perform the specified opening/closing action through the electric control box.
To ensure that the product description is accurate, clear, and easy to understand, language and expressions should be adjusted to suit the cultural background, language habits, and professional terminology of the target audience. Additionally, editing and polishing should be performed to ensure the final product is accurate, smooth, and easy to understand.
|
Main standard device |
Piston + electronic scale |
|
Flow range |
0.002-8[m³/h] |
|
Water pump |
69H/8 m³/h |
|
Working pressure |
10[bar] |
|
Length of the tested meter
|
DN15 (165mm) 14 pcs |
|
DN20(195mm) 12 pcs |
|
|
DN25 (225mm) 10 pcs |
|
|
Piston specifications |
Volume 22L/resolution 0.036ml/pressure PN16/Panasonic servo drive |
|
Electronic scale |
150KG/6000E |
|
Weighing container |
120L |
|
Temperature sensor |
PT100, accuracy class A, installed at the inlet and outlet |
|
Pressure sensor |
accuracy of 0.5%, installed at the inlet and outlet |
|
Test method |
start-stop method + commutator method |
|
Standard signal interface |
Pulse+MBUS+RS485 |
|
Equipment power |
10KW |
|
Hydropower |
The user provides AC400V three-phase five-wire power supply/pure water/6bar pressure |
The main function of this equipment is to provide a full automatic water meter testing solution for accuracy class 0.2.
It can test different types of water meters with different flow points, including random test points from Qs-Qmax.
The equipment can display temperature and pressure instantly for easy monitoring.
It can test each test point of the water meter from DN15MM to DN25MM, and the PC software operates automatically without requiring manual intervention, except for flow rate manual adjusting.
The equipment can collect the signal of the tested meter automatically and figure out the error, satisfying the data collection needs of different water meters.
Additionally, the equipment has a pressure testing function and can conduct pressure-withstanding testing of the water meter.
