The water meter box is the best and most common method of installing water meter facilities.
A water meter kit typically includes all the necessary components for measuring water usage in a household or commercial building. The kit typically includes a water meter, which is installed at the point where the water supply enters the building, as well as various fittings and connections required for installation.
The water meter itself is typically a mechanical device that measures the volume of water flowing through it. The meter is usually calibrated in cubic feet or gallons, and it may have a digital or analog display that shows the total amount of water used.
In addition to the water meter, the kit may include other components such as pipe adapters, gaskets, and mounting hardware. Some kits may also include a flow sensor that can be used to monitor water usage in real-time, as well as software for analyzing water consumption data.
Overall, a water meter kit is a useful tool for monitoring and managing water usage in a building, which can help to reduce water waste and lower utility costs.
Description
Meter cover: 15-600mm
Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi-jet & single jet & volumetric)
Meter flange: 50mm-600mm
Lead-free meter fitting: 15mm-50mm
Technics: Forging, Casting， ductile
Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.
Meter mechanism: 15mm-600mm
Meter box

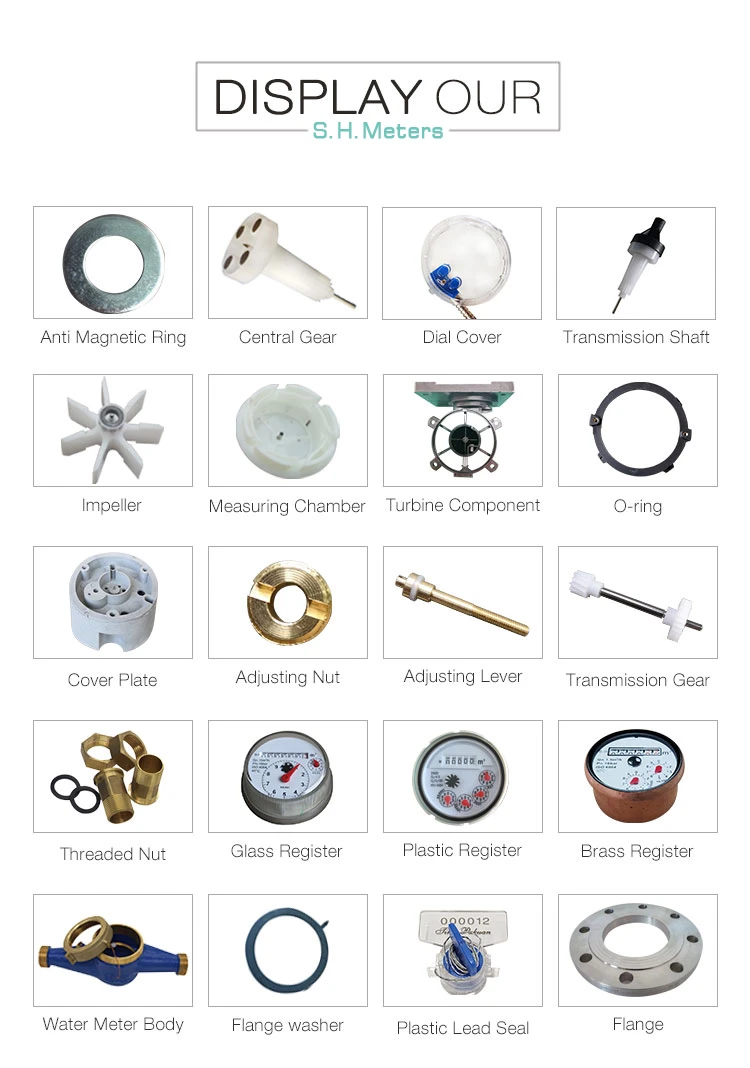

We produce all parts for multi-jet water meters, single-jet water meters, volumetric water meters, Woltman water meters, prepaid water meters, etc.
Specifications
Plastic water meter box. good quality and cheap price.
Special locking mechanism, requiring a tailor-made key to open the lid
Unique couplings, convenient replacement for the meters inside the meter/ballcock assembly locked where it passes through the meter box to prevent it from rotating during installation.
High-quality ball cock shut off valves without rising head parts which can cause leaks.
Standards Compliance
ISO4064 Class B for horizontal installation
Application
The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heavy traffic situations and working conditions
Water temperature:<40℃
A water meter kit is a set of components that are used to install, connect, test or repair a water meter. The exact components may vary depending on the type and size of the water meter. Some common components are:
Water meter assembly: The device that measures water flow and consumption.
Male cam lock assembly: A connector that attaches the water meter to a hose or pipe.
Support assembly: A bracket that holds the water meter in place.
Steel template: A tool that helps mark hole placement for drilling.
Hole saw: A tool that cuts circular holes for fitting pipes or hoses.
Gel seal: A substance that prevents water leakage from wire connections.
Wires: Cables that transmit data from smart water meters to meter networks.
To install a water meter, you need to follow these steps:
Turn off the main water supply and drain the pipes.
Cut the pipe where you want to install the meter and remove any burrs.
Wrap tape around both ends of the meter threads and attach the union nuts.
Insert rubber gaskets between the meter and the pipe ends and tighten them with a wrench.
Turn on the water supply and check for leaks.
