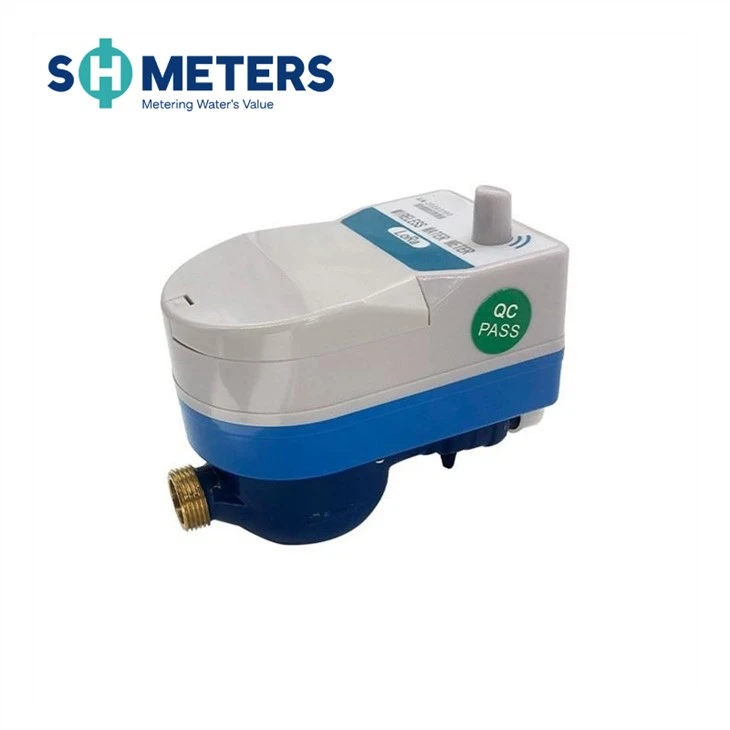

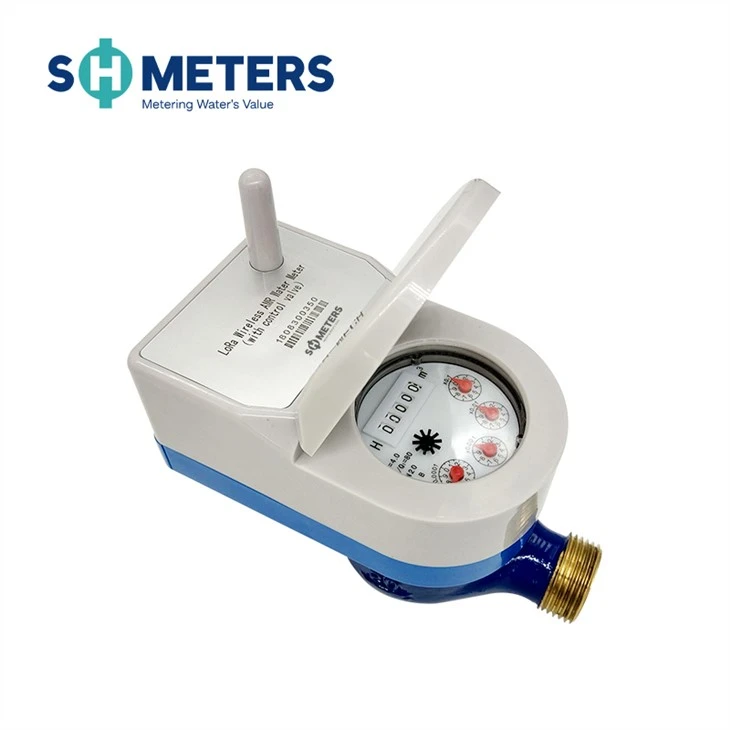

High Performance Intelligent Home Remote LoRa Water Meter

LoRa wireless remote valve control water meter belong to high-tech products in the smart water meter, using of advanced wireless LoRa transmission technology, it transforms metered information of conventional mechanical water meter into electrical signal have it stored by micro-electronics control circuit.

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of high performance intelligent home remote lora water meter in China. If you're going to wholesale high quality high performance intelligent home remote lora water meter, welcome to get pricelist and quotation from our factory.

High Performance Intelligent Home Remote lora water meter is a new intelligent water meter developed with the development of science and technology. It has a wireless remote transmission function that was not available in previous mechanical water meters.

lora water meter (2)

Appearance:
1. The mechanical watch part uses a brass case, which has high ductility with high density copper content and prevents the case and pipeline from breaking.
2. The intelligent part is made of high-quality materials, and the case is white, beautiful and beautiful. The digital display is large and clear for easy reading.
3. The mechanical part and the intelligent part cooperate with each other to facilitate reading.
After sales service:
1. Can you provide samples?
We provide customers with sample services to facilitate customers to sample back for testing, and welcome friends who need samples to purchase samples.
2. Does the software cost money? What if I can't install it?
You can rest assured that we provide free basic software, and the installation is very simple. We will provide you with a detailed video on how to install it, and at the same time, the technical staff will guide you online. Let you have a wonderful shopping experience.
about us:
We are determined to become a world-renowned water solutions provider. Since its establishment, we have been studying water solutions and made great achievements. Persist in the perception of the potential needs of customers as our service goals, and over-fulfill. Build a trusting, warm, efficient and quality service environment for customers.
If you are having trouble with charging, please contact us and leave your needs. We will have professional staff to solve the problem for you. In addition to LoRa water meter, we also have GPRS water meters. There is always a suitable one for your needs.

lora water meter (20)

Outline dimensional drawing

DN15~DN25 brass body water meter Lora digital water flow meters

Outline dimension

Nominal Diameter	Length L	Length L1	WidthB	Height H1	Height H2	Connecting Thread
mm						d	D
15	258	165	90	112	184	R1/2	G3/4B
20	299	195	90	112	184	R3/4	G1B
25	345	225	90	114	186	R1	G1 1/4B

Technical parameter

Item	Unit	Details
Nominal diameter	mm	15	20	25
Q3/Q1	R80
Overlolad flow(Q4)	m³/h	3.125	5	7.875
Nominal flow(Q3)	m³/h	2.5	4	6.3
Transitional flow(Q2)	m³/h	0.05	0.08	0.13
Minimum flow(Q1)	m³/h	0.031	0.05	0.08
Accuracy class	ClassB
Maximum indication	m³		999999.9
Temperature class	T30,T90
Pressure class	MAP10
Pressure loss class	ΔP63
Flow prefile sensitivity class	U10/D5
Environmental class	Class B
Electromagnetic environmrnt class	E1
Static current	uA		<10
