Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of DN15-DN32 Plastic Water Meter Box | Product Specifications & Selection Guide in China. If you're going to wholesale high quality DN15-DN32 Plastic Water Meter Box | Product Specifications & Selection Guide, welcome to get pricelist and quotation from our factory.
Made of PP or PA material, with a wall thickness > 3 mm, applicable to DN15-DN32 water meters-pressure-resistant, high-temperature-resistant, rustproof, anticorrosive, and durable outdoors. The non-metallic material does not block smart signals and can be equipped with a lock for security. It can be used for homes, industrial parks, and city water supply.
Products Description

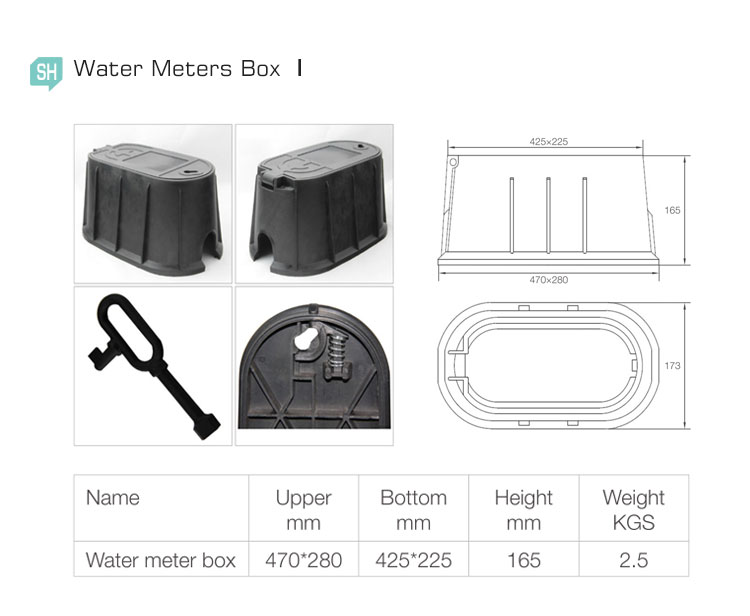

This plastic water meter box is a complete assembly (base and cover included), injection-molded from PP or PA with wall thickness> 3 mm. The box features a tapered structure. Model A (bottom 470×280mm, top 425×225mm, height 165mm) fits DN25-DN32; Model B (bottom 360×213mm, height 191mm) fits DN15-DN20.
Product Parameters
|
Parameter
|
Model A
|
Model B
|
Selection & Remarks
|
|
Product Name
|
Plastic Water Meter Box (Large)
|
Plastic Water Meter Box (Standard)
|
Complete box assembly; base and cover included
|
|
Material
|
PP or PA Engineering Plastic
|
PP or PA Engineering Plastic
|
Both material options available with similar properties
|
|
Color
|
Gray (Standard)
|
Gray (Standard)
|
Custom colors available upon request for bulk orders
|
|
Box Bottom Outer Dimensions (L x W)
|
470 × 280 mm
|
360 × 213 mm
|
Contact surface with ground/base
|
|
Box Top Outer Dimensions (L x W)
|
425 × 225 mm
|
TBC
|
Outer dimensions of the lid
|
|
Box Total Height
|
165 mm
|
191 mm
|
Total height from bottom to top
|
|
Main Wall Thickness
|
≥ 3 mm
|
≥ 3 mm
|
Minimum thickness at primary load-bearing areas
|
|
Unit Net Weight
|
2.4 kg
|
TBC
|
For freight estimation
|
|
Applicable Caliber
|
DN25 – DN32
|
DN15 – DN20
|
Model A fits larger calibers; Model B fits standard calibers
|
|
Lid Opening Method
|
Flip-up type with hinge
|
Flip-up type with hinge
|
Allows one-hand operation for meter reading
|
|
Locking Function
|
Padlock hole pre-reserved
|
Padlock hole pre-reserved
|
Lock not included; to be purchased separately
|
|
Operating Temperature Range
|
-20°C to +80°C
|
-20°C to +80°C
|
Material heat deflection temperature exceeds this range
|
|
Logo, color, and size customization available (MOQ applies)
|
Logo, color, and size customization available (MOQ applies)
|
Please consult sales for details
|
Selection & Data Notes
-
DN15 – DN20 caliber: Model B (Standard Box) is recommended
-
DN25 – DN32 caliber: Model A (Large Box) is recommended
- Standard product color is gray. Custom colors are available for bulk orders
- For logo printing or specific size modifications, please contact our sales team for MOQ and pricing information
Product Features
Structure & Material
Injection-molded, wall thickness> 3 mm, with UV and thermal stabilizers for outdoor exposure.
01
Compatibility & Installation
Fits DN15-DN32 major brand meters; pre-drilled holes for base or bracket mounting.
02
Operational Convenience
Flip-up hinged lid allows one-hand reading or valve adjustment, no disassembly needed.
03
Protection Function
Dust, rain, and impact protection when closed; pre-reserved padlock hole for tamper prevention.
04
Typical Applications
Residential communities
This plastic water meter box provides outdoor water meter installation and protection for residential communities, safeguarding meters from weather exposure and vandalism while facilitating routine meter reading inspections.
Industrial parks
This plastic water meter box provides outdoor water meter installation and protection for industrial parks, withstanding complex environments and ensuring accurate and reliable water supply metering.
Municipal roads and greenbelt water supply points
This plastic water meter box provides outdoor water meter installation and protection for municipal roads and greenbelt water supply points, adapting to open-air environments and facilitating routine management of water supply networks.
Ordering Information
Ordering Information
Standard product availability
Gray standard models are available in regular stock for DN15 – DN32 caliber ranges.
Sample policy
Standard samples are available for size and material verification. Sample fees and shipping costs are negotiable.
Customization services
Color customization, logo silkscreen printing on the lid, and specific size modifications are supported. For details, please contact our sales team.
Company Profile
Hebei Shanghong Meters Technology Co., Ltd. has in-house capabilities for mold development and injection molding production of water meter boxes and related components. Product dimensional accuracy is controlled throughout production, with appearance and size spot checks performed before shipment. The company has experience supplying international markets and can provide packaging and delivery solutions that meet order requirements for your plastic water meter box projects.
