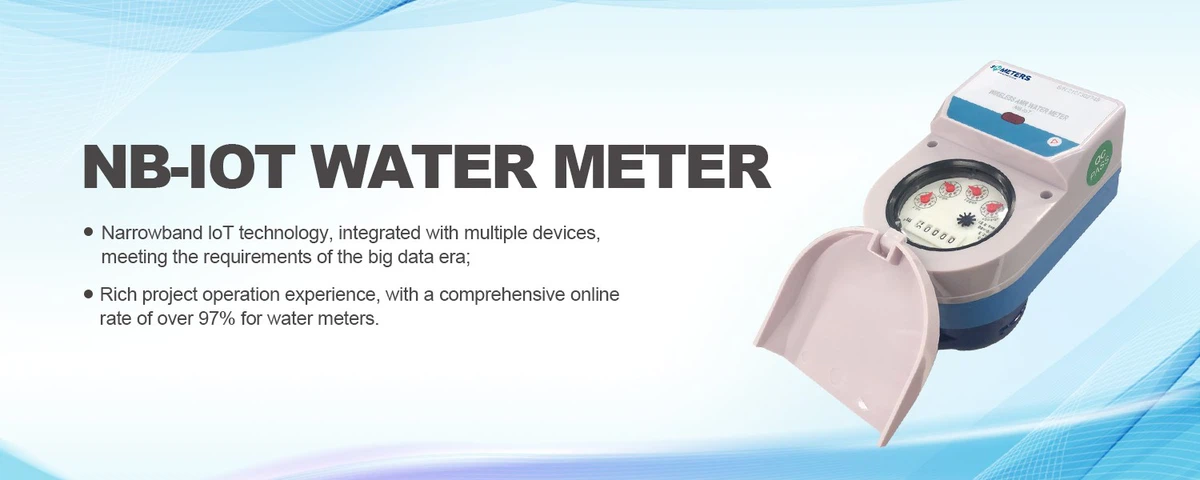

The Internet of Things water meter is a high-tech mechatronic smart meter composed of advanced microcomputer control technology and NB-IoT information transmission medium. It has dual functions of mechanical counting and electronic counting. The smart water meter adopts a unique integrated design. It mainly comprises a water meter base meter, a controller, an NB-IoT wireless remote module, a valve, and a flow collector. While maintaining the characteristics of a traditional mechanical water meter, it also has intuitive electronic functions. Features shown. The water meter has the advantages of advanced design, high technical content, complete functions, accurate measurement, reliable performance, small size, intuitive display, beautiful appearance, convenient installation, and use, and is suitable for the measurement and charging of tap water for urban residents.

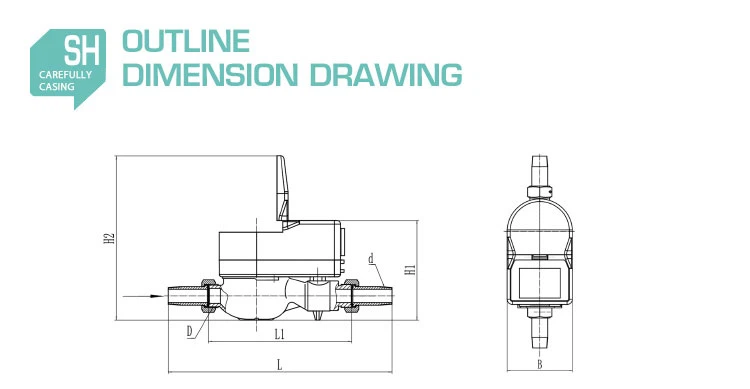

NB-IOT Water Meter Diameter
|
Nominal Diameter |
Length L |
Length L1 |
Width B |
Height H1 |
Height H2 |
Connecting Thread |
|
|
mm |
d |
D |
|||||
|
15 |
258 |
165 |
90 |
112 |
184 |
R1/2 |
G3/4B |
|
20 |
299 |
195 |
90 |
112 |
184 |
R3/4 |
G1B |
|
25 |
345 |
225 |
90 |
114 |
186 |
R1 |
G1 1/4B |
Technical Specifications
|
Item |
Unit |
Parameter |
||
|
DN |
mm |
15 |
20 |
25 |
|
Q4 |
m³/h |
3.125 |
5 |
7.875 |
|
Q3 |
m³/h |
2.5 |
4 |
6.3 |
|
Q2 |
L/h |
50 |
80 |
0.1 |
|
Q1 |
L/h |
31.3 |
50 |
0.063 |
|
Q3/Q1 |
≥80 |
|||
|
Pressure Lose Level |
△P63 |
|||
|
Max Water Pressure(P) |
1Mpa |
|||
|
Water Pressure Level |
MPA10 |
|||
|
Working Voltage |
3.6V |
|||
|
Temperature |
T30(Cold Water), T90(Hot Water) |
|||
|
Humidity |
≤95% |
|||
|
Insulation Compressive Strength |
5000V |
|||
What are the functions of the IoT water meter?
1. Real-time monitoring of water meter flow
Traditional water meters can only obtain water consumption through manual meter reading, while IoT water meters have real-time monitoring functions, which can collect and report water consumption and flow information in real-time. And the real-time interaction and feedback between data and users can be realized through the cloud service platform so that users can understand their water consumption more intuitively.
2. Remote meter reading and payment
Traditional meter reading needs manual implementation, which is inefficient and expensive. The Internet of Things water meter can be used for remote meter reading through the Internet of Things technology, making meter reading easier.
3. Water meter alarm
The Internet of Things water meter also has the function of automatically alarming when the water volume reaches a certain threshold, preventing users from wasting and overusing water fees because they do not know their water consumption. At the same time, the water meter can also detect and alarm for abnormal conditions in the water, such as unqualified water quality or water leakage, and notify the user to repair it in time.
4. Real-time data analysis and reporting
Through the Internet of Things technology, the Internet of Things water meter can collect and upload data in real-time, analyze and predict the user's water usage, and provide detailed reports. Users can keep abreast of their water consumption through these reports, so as to adjust and control, so as to achieve energy saving, emission reduction and use cost reduction.
5. Intelligent control and optimization
Through real-time monitoring and data analysis of users' water consumption, IoT water meters can be intelligently controlled and optimized based on factors such as time, location, and frequency of water use. For example, through intelligent control of water valves, etc., the water meter can be made more intelligent to achieve the effect of energy saving and emission reduction.

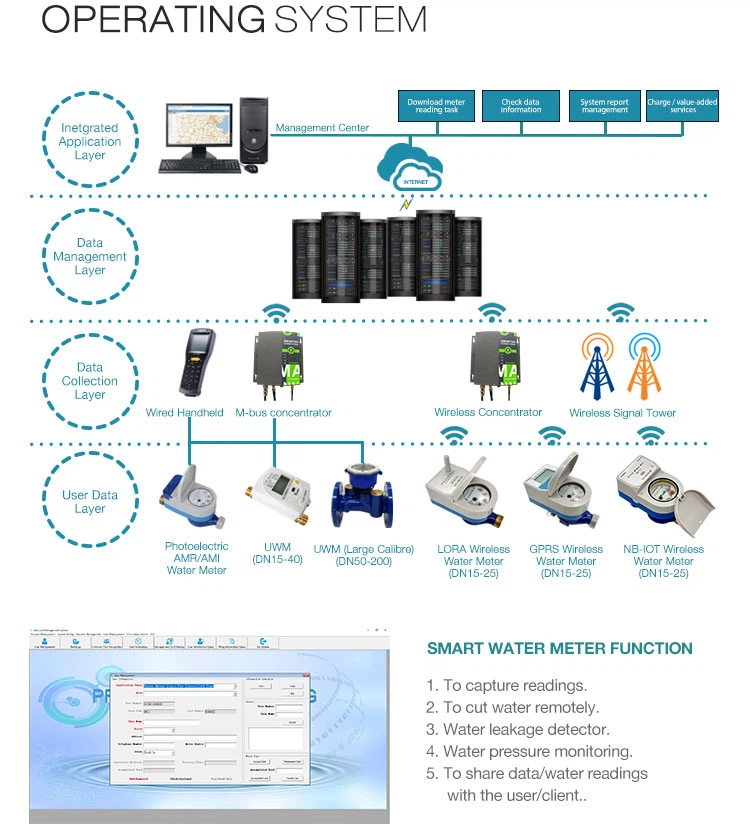

NB-IOT IoT Meter Reading Solution
l The Internet of Things dedicated network is used as the data transmission channel, and the network is stable.
l Using carrier-specific modules, low cost, low power consumption, large coverage, and large connections.
l It is convenient and fast in the water supply and meter reading business, and easy to maintain.
l It is suitable for the management of meter reading fees for urban residents and is widely used for metering users with large management areas and relatively remote and scattered households
Advantages of IoT Water Meters
1. Realize remote monitoring: IoT water meters can be connected to remote servers through the network, so as to realize real-time monitoring and remote management of water meter usage. In this way, the status of the water meter can be remotely understood at any time, problems can be found in time and corresponding measures can be taken, which greatly improves the management efficiency.
2. Improve metering accuracy: IoT water meters use digital electronic technology to accurately measure water volume and perform metering. At the same time, through cloud platform data analysis, water consumption can be accurately predicted and calculated to reduce measurement errors.
3. Realize automatic management: IoT water meters can realize intelligent automatic management, intelligently control according to the user's water consumption, effectively control water consumption, and prevent waste of water resources.
4. Improve user experience: IoT water meters can provide personalized usage information and services to help users better understand their water consumption and optimize water usage methods, provide more convenient and flexible services, and improve user satisfaction.
Disadvantages of IoT Water Meters
1. High cost: Due to the application of Internet of Things technology compared with traditional water meters, the cost of Internet of Things water meters is higher and requires more capital investment.
2. Reliability issues: IoT water meters require network connections, and there may be some unpredictable factors during network transmission, such as network failures, data loss, etc., resulting in inaccurate data or failure to transmit normally.
3. Potential safety hazards: The network system of the IoT water meter has many external interfaces, which are easy to be attacked by hackers, resulting in data leakage, security issues, etc., and security management needs to be strengthened.
4. Complex maintenance: IoT water meters require long-term operation and maintenance. If problems are encountered, they need to be dealt with in a timely manner, and relevant technical and maintenance personnel are required.
In short, IoT water meters have a variety of powerful functions, which are of great significance and value to both water management institutions and individual users. With the continuous development and popularization of IoT technology, IoT water meters will become one of the important tools for future water resource management and utilization.
