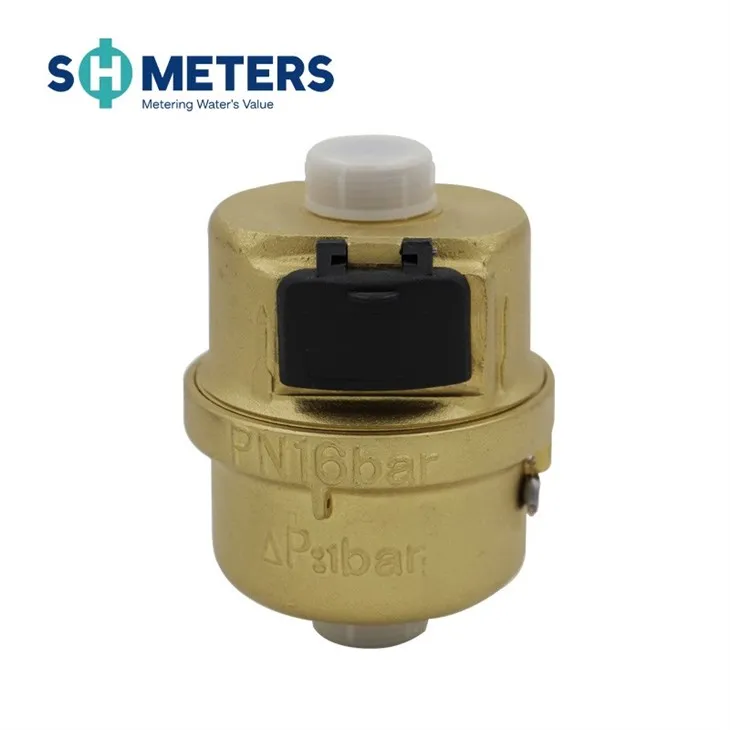

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of volumetric rotary water meter for general household in China. If you're going to wholesale high quality volumetric rotary water meter for general household, welcome to get pricelist and quotation from our factory.
The volumetric water meter measures the volume of the actual fluid passing through the water meter. The volumetric water meter error can be controlled to ±0.5% or lower.
The volumetric Water meter room can choose brass and Nylon materials.
|
Features |
Application |
|
1. Low start-up flow rate. 2. Volumetric rotary piston principle of measurement. 3. Accuracy is not affected wherever installed at a horizontal, vertical, or inclined pipeline. 4. Register is sealed with a special liquid to keep a clear reading in long-term service. 5. Mechanism use of high-quality materials to ensure a stable characteristic. 6. Accurate measurement with conformity to lSo 4064 class c. 7. On request, the series can be equipped with a remote transmission device. |
Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water. |
|
Warranty |
|
|
- Water temperature:0.1℃~50℃ for cold water meter. 0.1℃~90℃ for the hot water meter. Water pressure: ≤1.6Mpa (16 bar). |
|
|
Operating Condition |
|
|
-The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃. |
Characteristics
All the components ate produced with high resistance and quality materials, technical plastics, and stainless steel parts;
The indicator register is of 5 rollers and 4 pointers;
The Piston is the only moving part in contact with water permitting the most reliable;
Suitable for any position installation;
The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
The conception of Magnetic Protection against external influences;
Non-Return Valve to avoid the reserve flow Rate AS OPTION;
The indicator register is of 8 Rollers and 1 Pointer AS OPTION;
Copper can super dry type register with IP68 protection AS OPTION;
|
Description |
Unit |
Hydraulic Data And Dimensions |
|||||
|
Nominal Size |
mm(inch) |
DN15(1/2) |
DN20(3/4) |
DN(1) |
DN32(1-1/4) |
DN40(1-1/2) |
|
|
L |
mm |
115 |
165 |
199 |
260 |
300 |
|
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
|
weight |
Without Connections |
Kg |
1.14 |
1.56 |
2.48 |
3.47 |
5.65 |
|
With Connections |
Kg |
0.97 |
1.3 |
2.05 |
2.75 |
4.7 |
|
Composition of the Volumetric Piston Water Meter
1. Water metering mechanism: using the traditional water meter as the base meter, and additionally using the microprocessor, which can allow the collected data signal to be displayed in real-time.
2. Micro power consumption electric ball valve: through the microprocessor to control the on and off, so that you can achieve intelligent control.
3. Microprocessor: mainly used to collect, process and control data.
4. Control circuit: can drive the water meter valve on and off.
