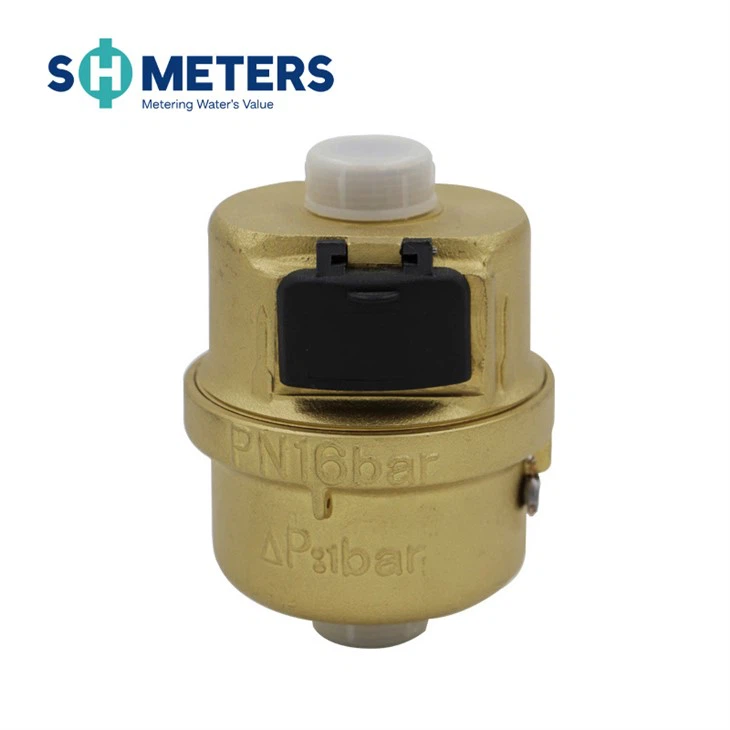

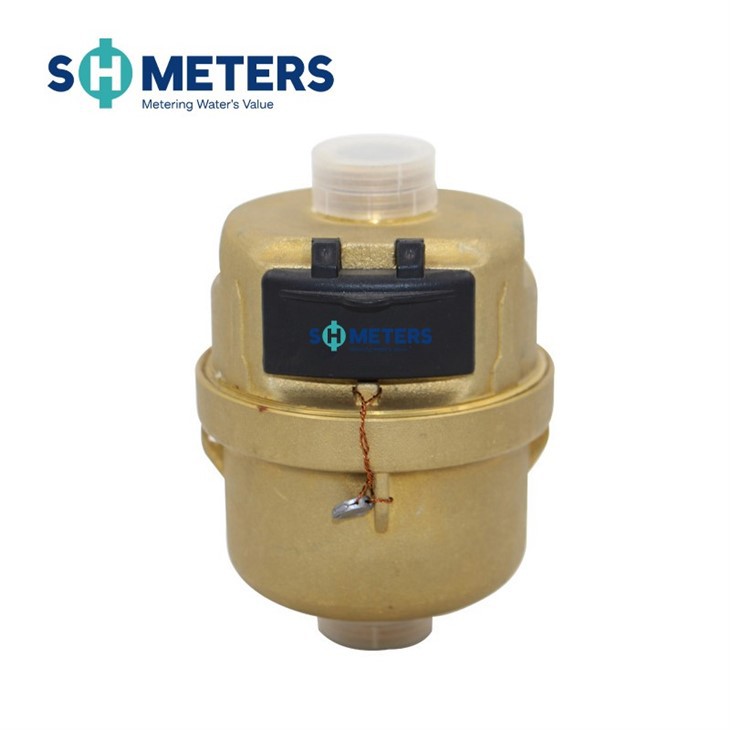

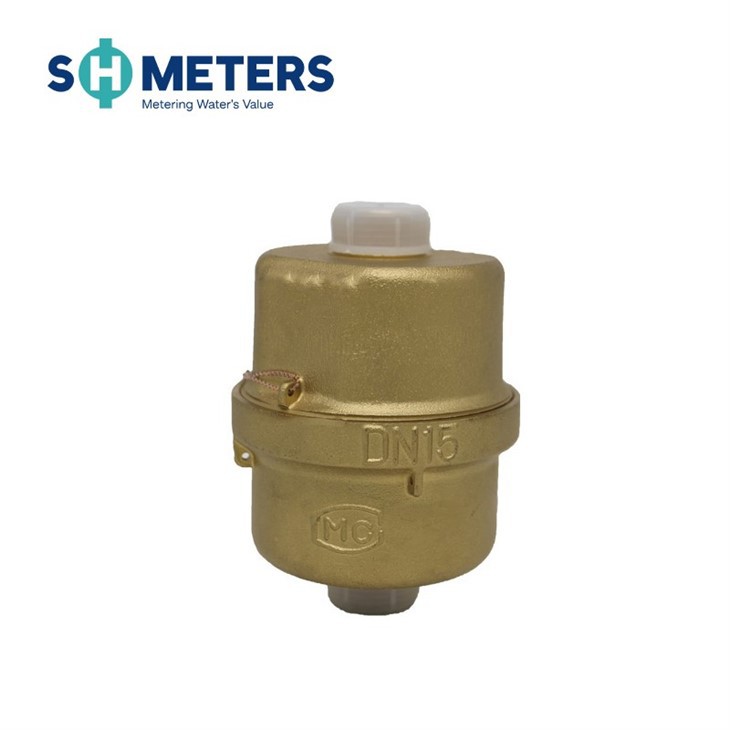

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of volumetric rotary piston water meter r200 for municipal in China. If you're going to wholesale high quality volumetric rotary piston water meter r200 for municipal, welcome to get pricelist and quotation from our factory.
Features
1. Adopt the principle of piston rotation;
2. High measurement accuracy. All technical indicators of the meter comply with ISO4064 C-level, D-level standards or R160, R200 standards;
3. The counter is separated from the water, and the numbers are clear and easy to read;
4. Stable and reliable performance, using high-quality materials;
5. Suitable for pipe networks with better water quality;
6. The water inlet (vertical) or water outlet (horizontal) is equipped with a check valve to prevent backflow;
7. Applicable to cold water ≤50℃;
8. Water pressure: ≤1MPa or 1.6MPa (ie 10bar or 16bar);
9. This watch can be added with a remote pulse output function according to user requirements.
|
Description |
Unit |
Hydraulic Data And Dimensions |
|||||
|
Nominal Size |
mm(inch) |
DN15(1/2) |
DN20(3/4) |
DN25(1) |
DN32(1-1/4) |
DN40(1-1/2) |
|
|
Q4 Error Limit ±2% |
m³/h |
3.125 |
5 |
7.875 |
12.5 |
20 |
|
|
Q3 Error Limit ±2% |
m³/h |
2.5 |
4.0 |
6.3 |
10 |
16 |
|
|
Q2 Error Limit ±2% |
l/h |
25 |
40 |
63 |
100 |
160 |
|
|
Q1 Error Limit ±5% |
l/h |
15.6 |
25 |
39.4 |
62.5 |
100 |
|
| Environmental class |
T30 |
||||||
|
Accuracy class |
Class 2 | ||||||
|
MAP |
1.6 MPa |
||||||
|
Press Loss ΔP AT |
ΔP63 |
||||||
| Installation pitch | U10/D5 | ||||||
| Installation position | Horizontal or Vertical | ||||||
|

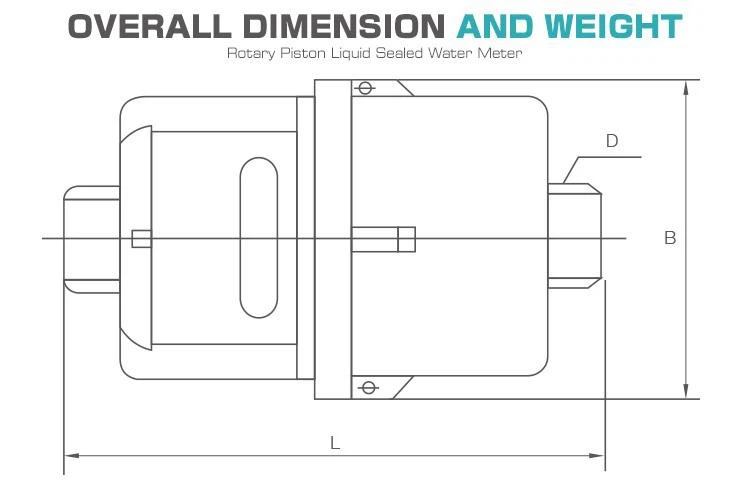

L |
mm |
115 |
165 |
199 |
260 |
300 |
|
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
