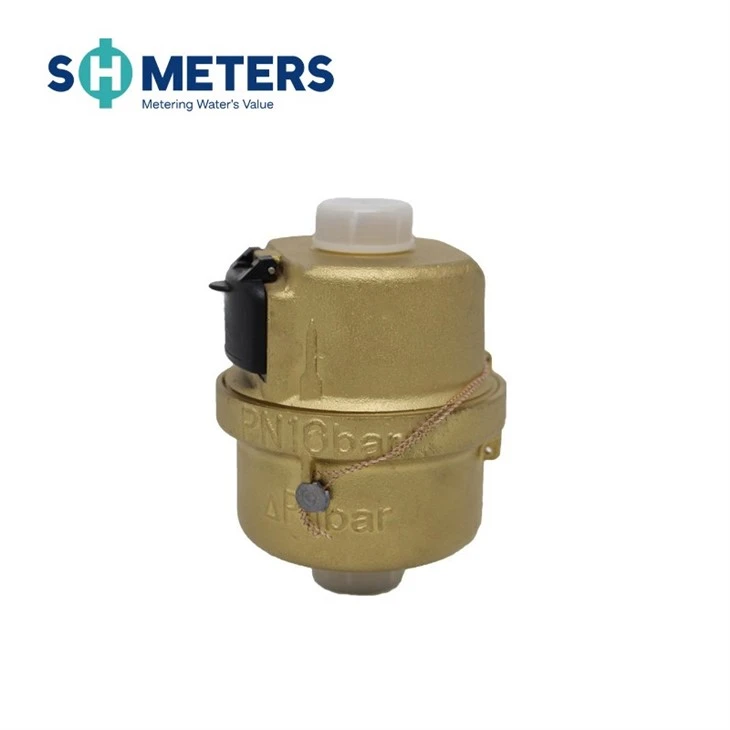

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of brass body volumetric piston type cold water meter in China. If you're going to wholesale high quality brass body volumetric piston type cold water meter, welcome to get pricelist and quotation from our factory.
Product Description
| Body | Brass, nylon, plastic |
| Size | DN15mm~DN40mm |
| Standard | ISO4064 |
| Water Temperature | 0 ºC~50ºC for cold water |
| 0 ºC~90ºC for hot water | |
| Water Pressure | ≤1Mpa |
| Principle | Rotary piston |
| Port Connect | Thread |
| application | Residential, household |
| Packaging | Carton or as customer's request. |
Feature
a)Volumetric rotary piston principle of measurement;
b)No location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline;
c)Register is sealed with a special liquid to keep a clear reading for a long time;
d)Mechanism use of high-quality material to ensure a stable characteristic;
e)Accurate measurement conforms to ISO4064 class C.
|
Description |
Unit |
Hydraulic Data And Dimensions |
|||||
|
Nominal Size |
mm(inch) |
DN15(1/2) |
DN20(3/4) |
DN(1) |
DN32(1-1/4) |
DN40(1-1/2) |
|
|
L |
mm |
115 |
165 |
199 |
260 |
300 |
|
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
