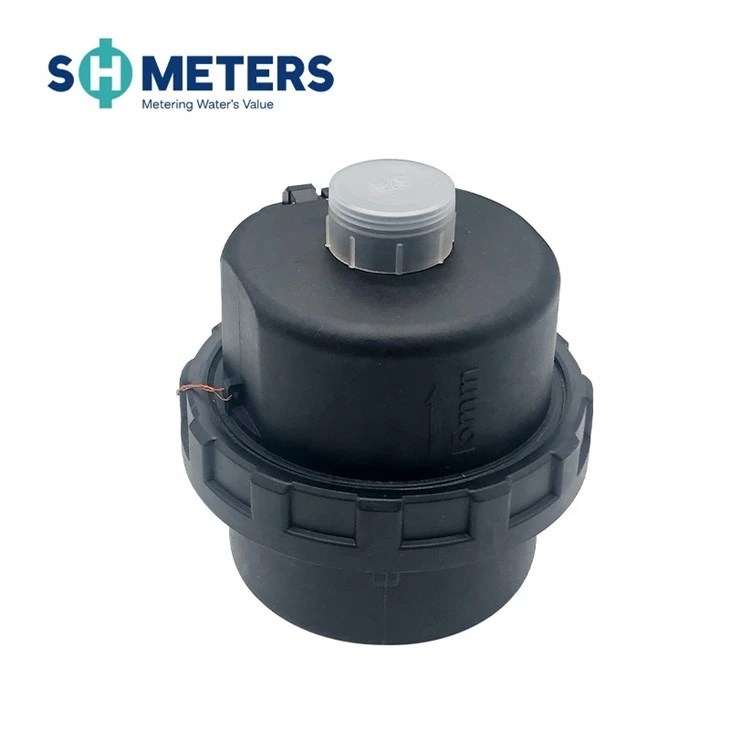

Domestic volumetric water meter from China supplier

A domestic volumetric water meter is a type of water meter that measures the volume of cold potable water passing through the pipeline. It has a rotary piston mechanism that rotates according to the water flow. It can be made of brass or plastic.

Some features and benefits of this kind of water meter are:

It has high accuracy and reliability, especially at low flow rates.
It has a long service life and low maintenance cost.
It can be used for pure water as well as tap water.
It can be equipped with remote reading devices such as pulse output or wireless communication.

Main Features
Not affected by an external magnetic field
Ensures high sensitivity and accurate registration throughout a wide flow range.
High measuring accuracy, the starting flow of the meter is 2 L/h or less;
Installed in vertical, horizontal, or incline position
Magnetic drive, lower transmission resistance.
A sealed dry dial register ensures clear reading.
Internal strainer, inlet filter optional
Brass body or plastic body is available to choose
Remote transmission can be equipped
Liquid sealed or Dry-dial register, keeps clear reading for a long time;
Reed Switch can be supplied on demand,1L/pulse,10L/pulse ;
ISO4064 water meter conformity
built-in non-return valve available
Wide range accuracy from Class A to D

Features	Application
1. Low start-up flow rate. 2. Volumetric rotary piston principle of measurement. 3. LXHY-15~20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical, or inclined pipeline. 4. Register is sealed with a special liquid to keep a clear reading in long-term service. 5. Mechanism use of high-quality materials to ensure a stable characteristic. 6. Accurate measurement with conformity to lSo 4064 class c. 7. On request, the series can be equipped with a kind of remote transmission device.	Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water.
	Warranty
	- Water temperature:0.1℃~50℃C for cold water meter. .0.1℃~90℃ for the hot water meter. .Water pressure: s1.6Mpa (16 bar).
	Operating Condition
	-The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃.

Dial Picture	Measure Unit
	Measure Unit: CBM 8 WHEELS Four red, four white wheels. The minimum reading:1L
	Measure Unit: CBM 8 WHEELS Three red, five white wheels. The minimum reading: 10L
	Measure Unit: UK Gallon 8 WHEELS One red, seven-white wheel The minimum reading: 1 UK/Gallon
	Measure Unit: UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon
	Measure Unit: US Gallon 8 WHEELS One red, three black, and four white wheel The minimum reading: 1 US Gallon
