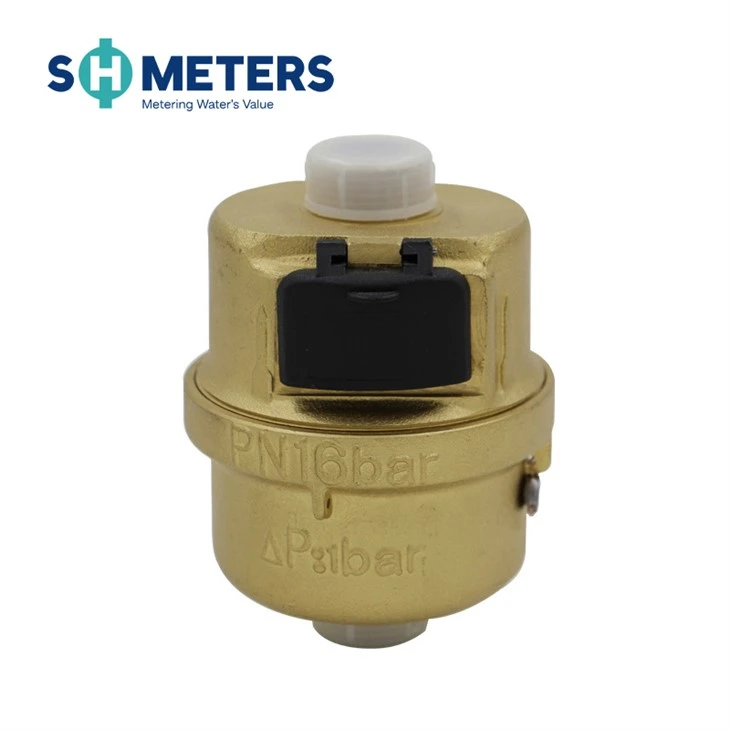

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of volumetric cold water meter class c r160 brass body color in China. If you're going to wholesale high quality volumetric cold water meter class c r160 brass body color, welcome to get pricelist and quotation from our factory.
Features
· Ensures high sensitivity and accurate registration throughout a wide flow range.
· Mechanical transmission movement equates to maximum reliability.
· Corrosion-resistant body.
· Liquid sealed register, easy reading, and long time clear reading.
· Low starting flow rate.
· Internal nonreturn valve, internal strainer.
· Install in any position.
· Plastic meter body.
Product Description
|
Water Pressure |
1.6 Mpa (16bar) |
|
The water temperature |
Cold water up to 50ºC |
|
Standard |
ISO4064 |
|
Medium Temperature: |
Cold(Hot) Water |
|
Size |
DN15 ~ DN20mm |
|
Work Environment |
Liquid Sealed Water Meter |
|
Level Measurement |
C |
|
Application |
Measuring the volume of cold potable water passing through the pipeline |
|
Packaging |
Carton, pallet and as per customer's requirement. |
|
Description |
Unit |
Hydraulic Data And Dimensions |
|||||
|
Nominal Size |
mm(inch) |
DN15(1/2) |
DN20(3/4) |
DN(1) |
DN32(1-1/4) |
DN40(1-1/2) |
|
|
L |
mm |
115 |
165 |
199 |
260 |
300 |
|
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
|
weight |
Without Connections |
Kg |
1.14 |
1.56 |
2.48 |
3.47 |
5.65 |
|
With Connections |
Kg |
0.97 |
1.3 |
2.05 |
2.75 |
4.7 |
|
