Volumetric water meter


volumeteric water meter(5)

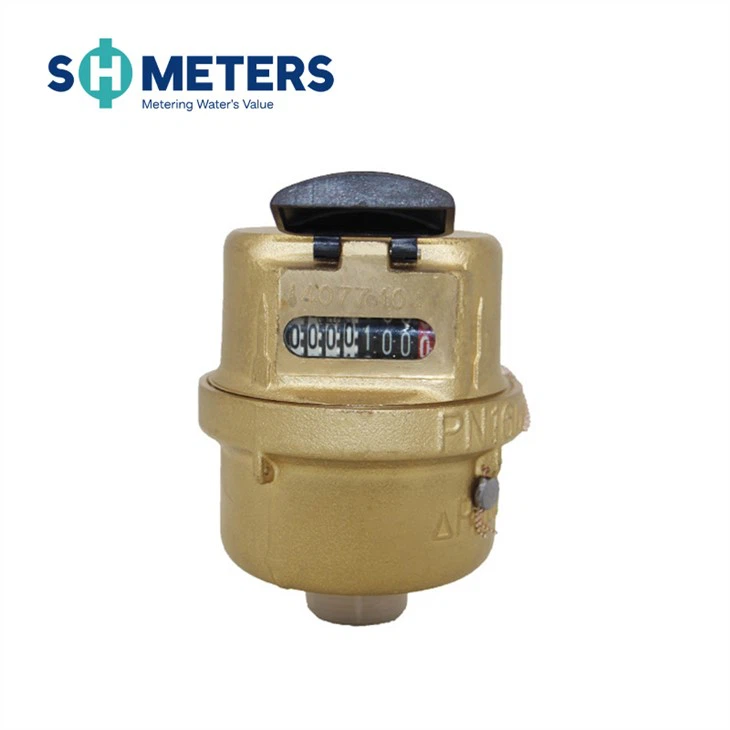

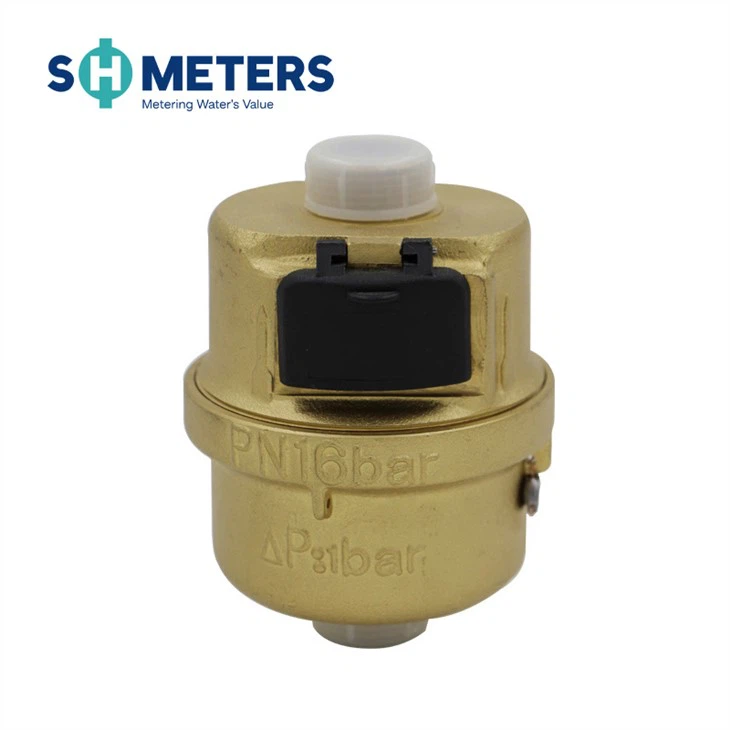

LXHY-15~40

Rotary Piston Liquid Sealed Water Meter


Application

Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.


Operating Condition

· The Max.Admissible water pressure 1.6MPa.

· Resisting water temperature: 50℃.


Features

· Low start-up flow rate.

· Volumetric rotary piston principle of measurement.

· LXHY-15~20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.

· Register is sealed with a special liquid to keep a clear reading in long term service.

· Mechanism use of high-quality material to ensure a stable characteristic.

· Accurate measurement with conformity to ISO 4064 class C.

· On request, the series can be equipped with a kind of remote transmission device.


Pulse Position


Magnet Position

Liter / Pulse

* 0.0001

1

*0.001

10



Note

· Body material: Brass body / Plastic body.

· Size: Plastic body: DN15-20; Brass body: DN15-40.

· Different register can be choose:


Dimensions

Dimensions


Description

Unit

Hydraulic Data And Dimensions

Nominal Size

mm (inch)

DN15 (1/2)

DN20 (3/4)

DN25 (1)

DN32 (1-1/4)

DN40 (1-1/2)

Q Error Limit

±2%



3

m /h

3.125

5

7.875

12.5

20

Q Error Limit

±2%



3

m /h

2.5

4.0

6.3

10

16

Q Error Limit

±2%

l/h

25

40

63

100

160

Q Error Limit

±5%

l/h

15.6

25

39.4

62.5

100

Min.Reading

l

0.05

0.05

0.05

0.5

0.5

Max.Reading

m3

9999.9999

9999.9999

9999.9999

99999.999

99999.999

MAP

MPa

1.6

1.6

1.6

1.6

1.6

Press Loss P AT Q 3

MPa

≤0.063

≤0.063

≤0.063

≤0.063

≤0.063

L

mm

115

165

199

260

300

B

mm

43

43

53

60

77





Weight

Without Connections

Kg

1.14

1.56

2.48

3.47

5.65


With Connections

Kg

0.97

1.3

2.05

2.75

4.7



Maximum Permissible Error

Maximum Permissible Error


Warranty

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SH-MECH Meters.


Exploded View

Exploded View
