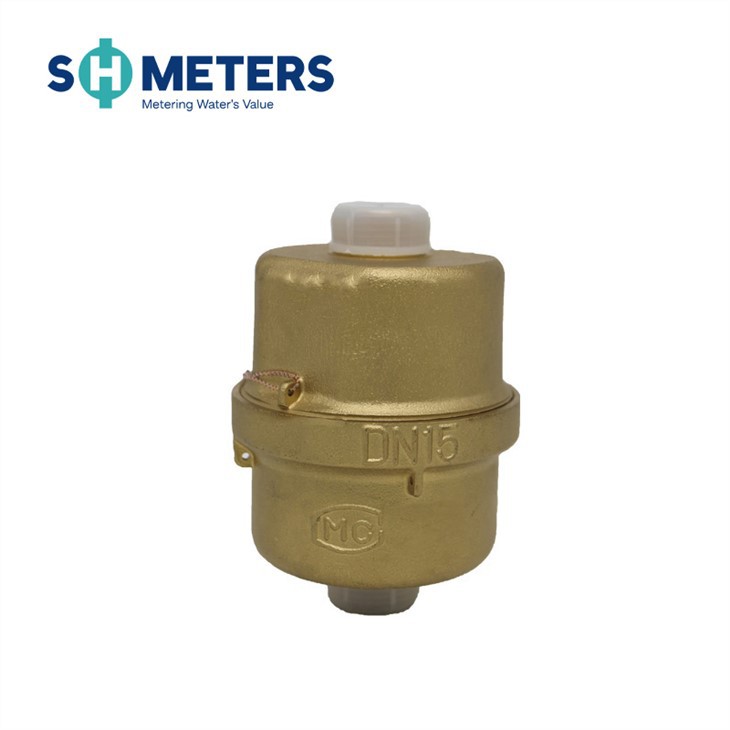

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of r200 kent volumetric rotary piston water meters dn15 dn15~dn25 household dry dial plastic,brass in China. If you're going to wholesale high quality r200 kent volumetric rotary piston water meters dn15 dn15~dn25 household dry dial plastic,brass, welcome to get pricelist and quotation from our factory.
Features | Application |
1. Low start-up flow rate.
2. Volumetric rotary piston principle of measurement.
3. LXHY-15~20 is no location limitation for installation.Accuracy is not to be affected wherever installed at a horizontal,vertical or inclined pipeline.
4. Register is sealed with a special liquid to keep a clear reading in long terrm service.
5. Mechanism use of high-quality rmaterial to ensure a stable characteristic.
6. Accurate measurement with conformity to lSo 4064 class c.
7. on request,the series can be equipped with a kind of remote transmission device. | Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water. |
Warranty | |
- Water temperature:0.1℃~50℃C for cold water meter. .0.1℃~90℃ for hot water meter. .Water pressure : s1.6Mpa (16 bar). | |
Operating Condition | |
| -The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃. |
| Dial Picture | Measure Unit |
 | Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L |
 | Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL |
 | Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon |
 | Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon |
 | Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon |
Body material: Brass body /Plastic body.
Size: Plastic body: DN15-20;Brass body: DN15-40.
Different register can be choose
