Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of r80-r160 multi jet water meter with lora module in China. If you're going to wholesale high quality r80-r160 multi jet water meter with lora module, welcome to get pricelist and quotation from our factory.

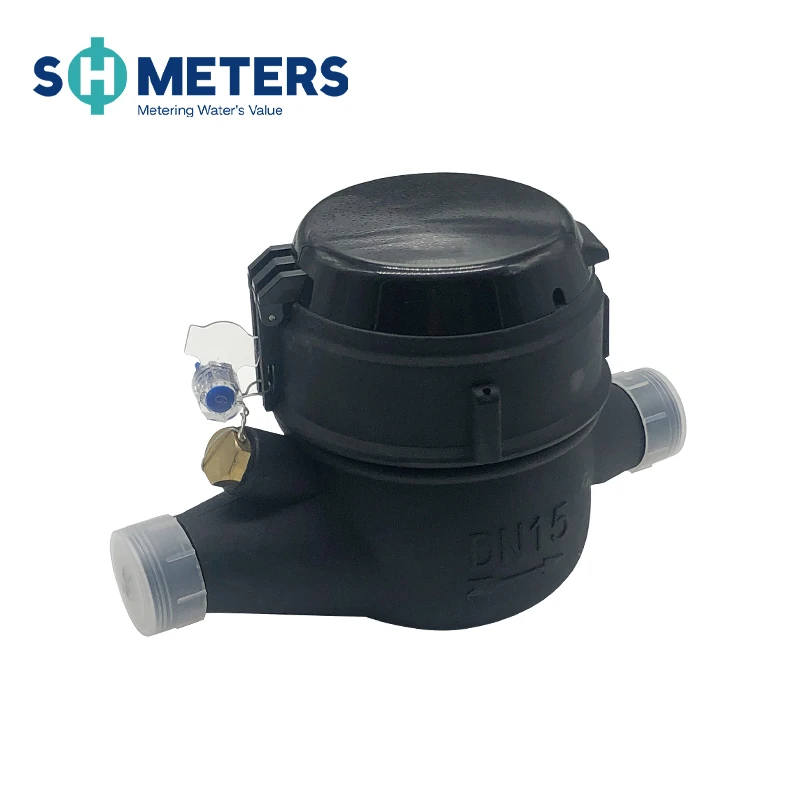

The multi-flow water meter is a water meter that uses the principle of multiple injections and is the most cost-effective and long-lasting flow-measuring instrument. The vast space in the measurement chamber and the negligible contact area between static and moving parts are the main reasons for the high reliability of the design even in hard water.
Water meters using the multi-injection principle are the best cost/performance, long-life flow measurement instruments. The wide gap in the measuring chamber and the contact area between the static and moving parts are negligible, which is why this design has high reliability even in hard water.
Features
1. Large measurement range and high flow accuracy;
2. Magnetic drive, small transmission resistance, reliable operation, not affected by external magnetic changes, and long service life;
Body
3. Brass paintable; switch option
4. Reeds are available;
transmission device
5. A remote control can be added according to requirements;
6. Pulse output can be 1l/pulse, 10l/pulse, 100l/pulse.
7. Check the valve
8. The water meter box and its lock valve can be installed as an option to solve the charging problem and provide anti-theft protection;
9. Vacuum-sealed dry counter to ensure long-lasting and clear readings and antifreeze;
10. External adjustment device;
11. Horizontal use;
12. Various lengths and connection methods are available upon request;
13. Optional copper seal IP68 protection level;
Customizable service: 1. Shell color/LOGO/lead seal/filter/cover color
|
DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
50 |
|
Size(inch) |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2" |
|
Length(L) |
165/190 |
190 |
260 |
260 |
300 |
300 |
280 |
|
Width(W) |
98 |
98 |
103.5 |
103.5 |
125 |
125 |
160 |
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
187.5 |
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B |
Flange end |
|
Weight(kgs) |
1.65 |
1.79 |
1.85 |
2.68 |
5.25 |
7.25 |
|
