Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of single jet cold type vane wheel water meter in China. If you're going to wholesale high quality single jet cold type vane wheel water meter, welcome to get pricelist and quotation from our factory.

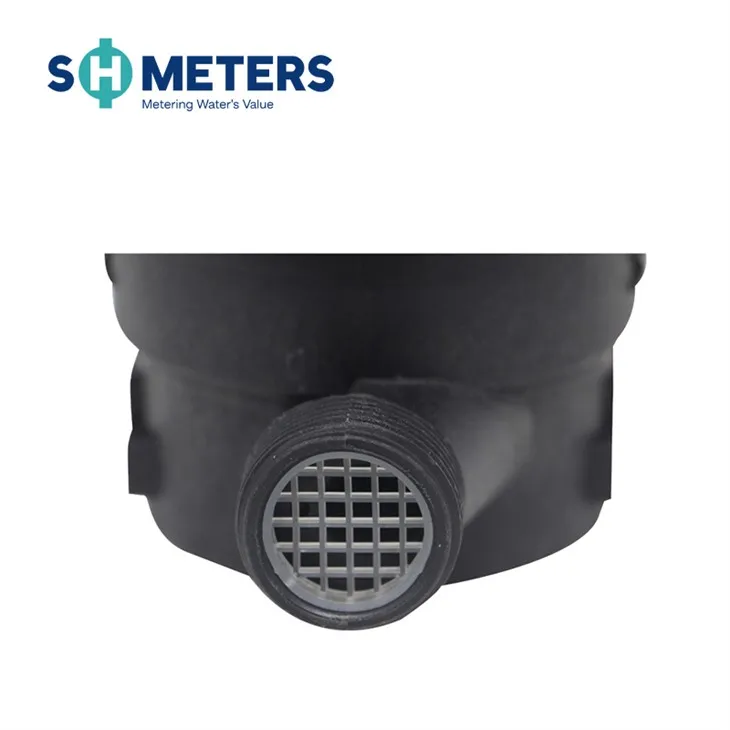

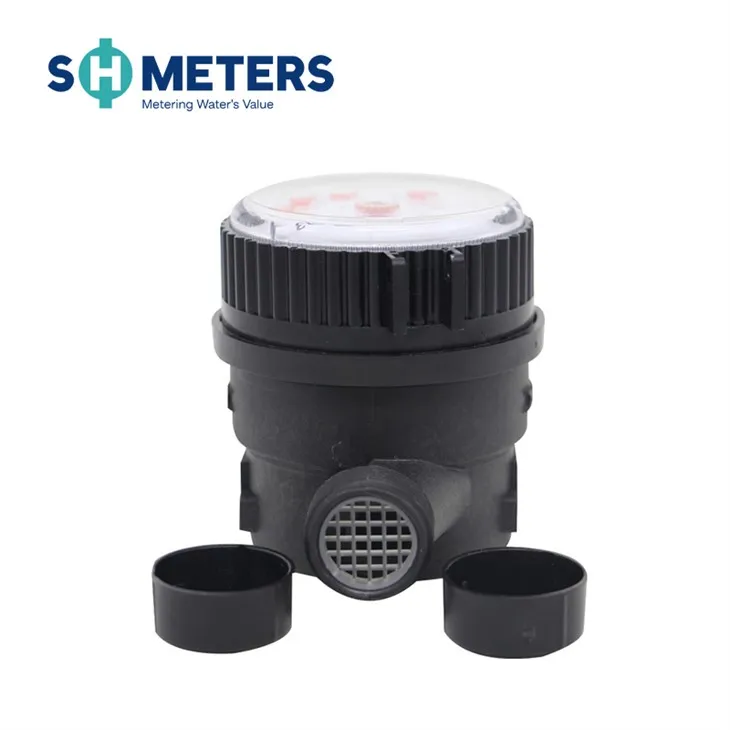

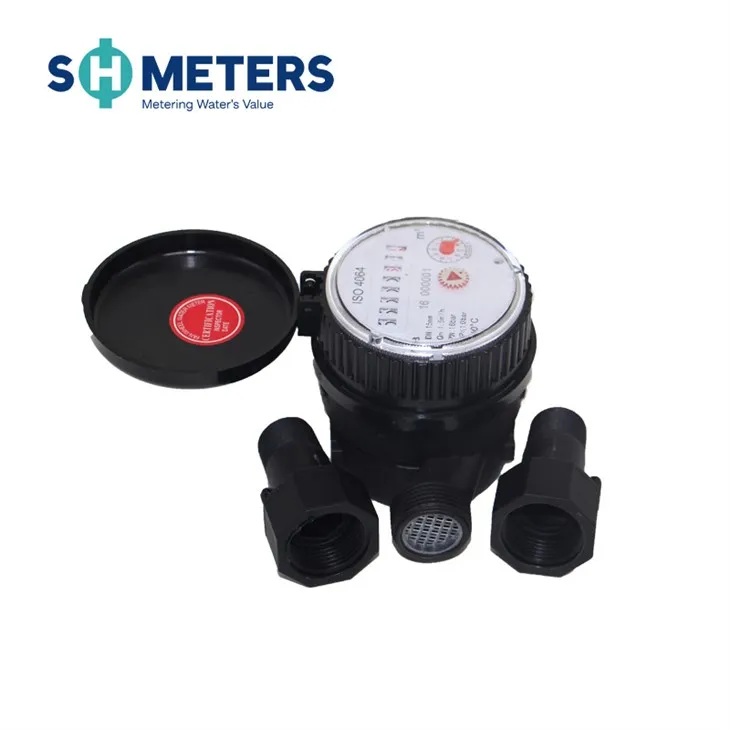

Single Jet Cold Type Vane Wheel Water Meter
The Single Jet water meter developed by sh-meters has two types of hot and cold, and there are two types of wheels: the 5-character wheel and the 8-character wheel. A vacuum seal is used. It has a combination of anti-condensation atomizer and pointer display for clear readings over time. The high-quality counter has an arbitrary rotation function for easy meter reading. The measuring range is wide, the starting flow is small, the material is high quality, the performance is stable and reliable, the appearance is beautiful, and the volume is small.
Type | Size | Length(mm) | Width(mm) | Height(mm) | Connecting Thread |
LXDG-15 | 15 | 110 | 82 | 89 | G3/4B |
LXDG-20 | 20 | 130 | 82 | 89 | G1B |
LXDG-25 | 25 | 130 | 82 | 89 | G11/4B |
Single Jet water meter use conditions:
Water temperature: cold water meter is not higher than 40 ° C (hot water meter is not higher than 90 ° C) and not lower than 0 °C
Single flow meter pressure: no more than 1MPa
Maximum allowable error of single flow meter:
±5% from low range including minimum flow (qmin) to excluding boundary flow (qt)
From the boundary flow (qt) to the high zone including the overload flow (qs) ± 2%
