Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi jet dry type brass water meter in China. If you're going to wholesale high quality multi jet dry type brass water meter, welcome to get pricelist and quotation from our factory.

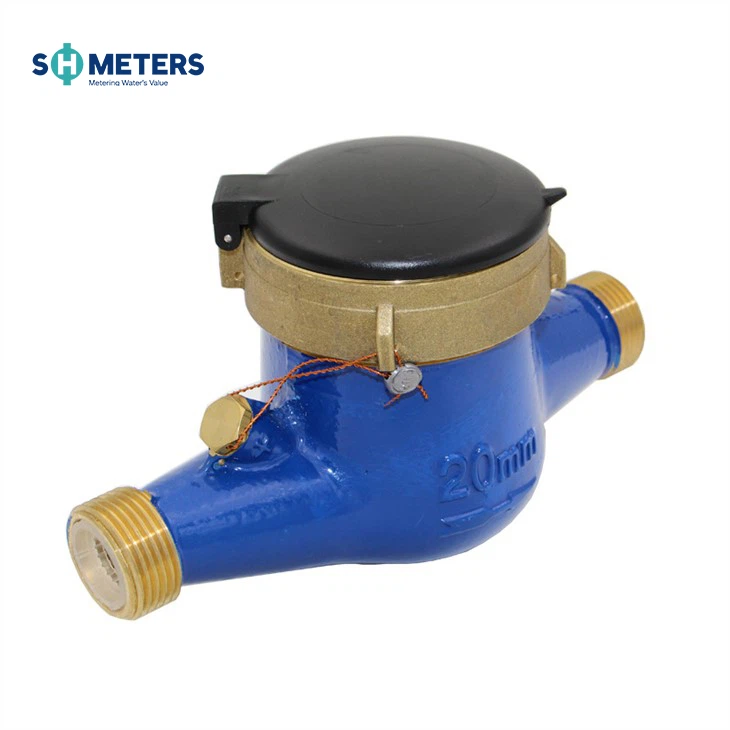

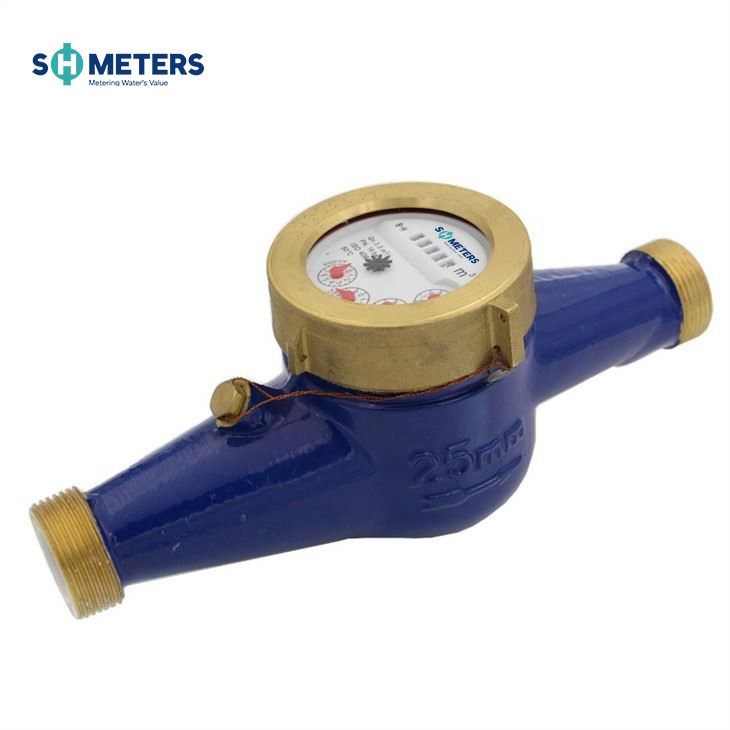

Multi-jet Dry Type Vane Wheel Water Meter
It is a multi-jet super dry water meter for residential application in sizes 15mm-50mm for cold meter.
FEATURES:
Magnetic Drive, lower transmission resistance
Magnetic Shield , for external magnetic field protection
Sealed dry dial register ensures clear reading
Internal strainer, inlet strainer for selecting
External regulating device
Optional Features
Several lengths and connections available on request
Non return Valve

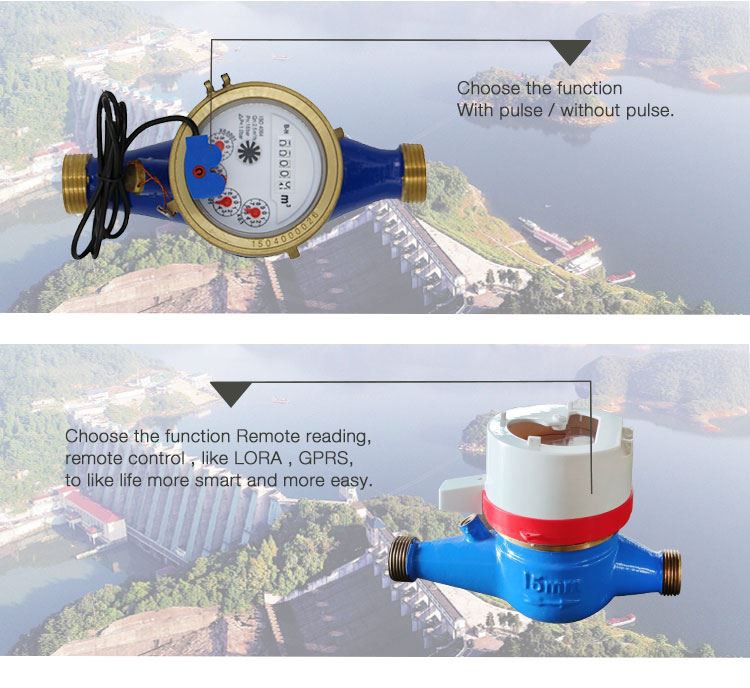

Reed switch option
Working Conditions
Water temperature: ≤50ºC for cold water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar option)
Installation requirements
The meter should be installed in horizontal position with the direction of the flow as
indicated by the arrow cast in the meter body with the register face upwards.
Pipeline must be flushed before installation.
The meter should be constantly full of water during operation.
MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%.
In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%.
ACCESSORIES
Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket
