Mechanical Different Types Water Meters
Specification:

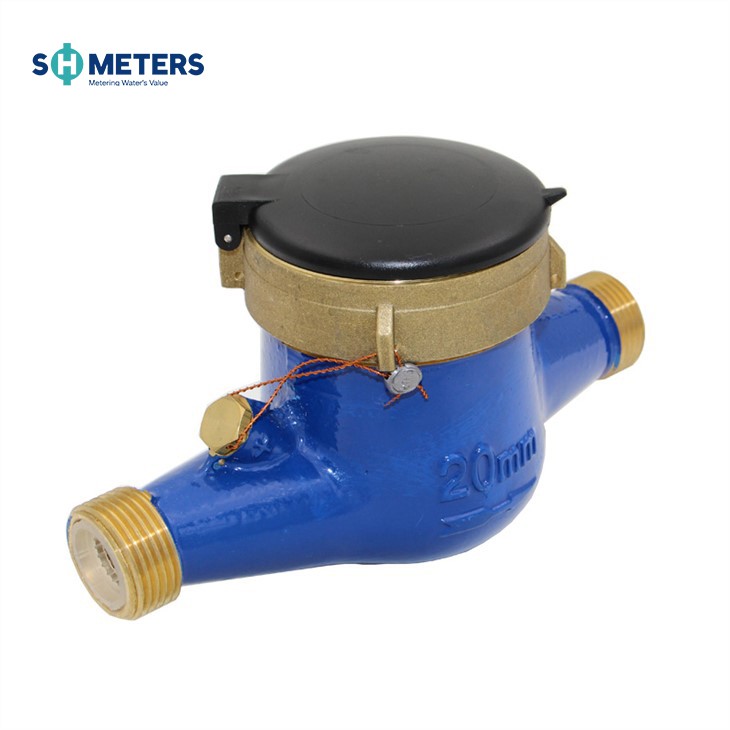

Multi-jet dry dial type water meter gauge DN15-25mm is an inferential,multtistream,straight reading type meter for cold water,suitable for domestic use.Brass body and adopt all antiseptic material,no leak,mechanical transmission not effected by external magnetic fields or ferrous particles in water.Accuracy is in accordance with ISO40064,Class B standard.
Operating condition:
Resisting water temperrature of 50ºC
The max.admissble pressure:1.6MPa
Error curve:
From Qt inclusive up to and including Qs is ±2%;
From Qt inclusive up to and but exluding Qs is ±2%;
Specification:
Wet type water meters in brass shell is an inferential,multtistream,straight reading type meter for cold water,suitable for domestic use.Brass body and adopt all antiseptic material,no leak,mechanical transmission not effected by external magnetic fields or ferrous particles in water.Accuracy is in accordance with ISO40064,Class B standard.
Multi-jet dry dial type water meter:
Features:
1) Housing material: brass/plastic/iron
2) Suitable for measuring the total quantity of cold potable water for residential usage
3) Completely plastic shell, solid and robust design, long service guaranteed
4) High quality materials fiberglass reinforced polymerization amine, corrosion resistance
5) Inside calibration device
6) Measuring accuracy is up to ISO4064, Class B
7) Both dry dial and wet dial are available
Specifications:
1) Ambient condition:
a) Water temperature: ≤40ºC
b) Water pressure: ≤1MPa
2) Standard: ISO4064
3) Error indicating:
a) Low zone: ±5% from minimum flow rate to transitional flow rate
b) High zone: ±2% from transitional flow rate to overload flow rate
Features:
1. Materials: brass/iron/plastic body, ABS inner core, brass sealing ring
2. Working Temperature:
Cold Water Meter ≤30°C,
Hot Water Meter ≤90°C
3. Measured by Cubic Meter
4. Quantity of Flow:
Q3/Q1=100 Q2/Q1=1.6 Q4/Q3=1.25
5. Working pressure: 1.0 Mpa
6. Loss of pressure: ≤0.1 Mpa
7. Indicating error:
at low zone of Qmin to Qt (not including) is ±5%
at high zone of Qt to Qmax is ±2%
