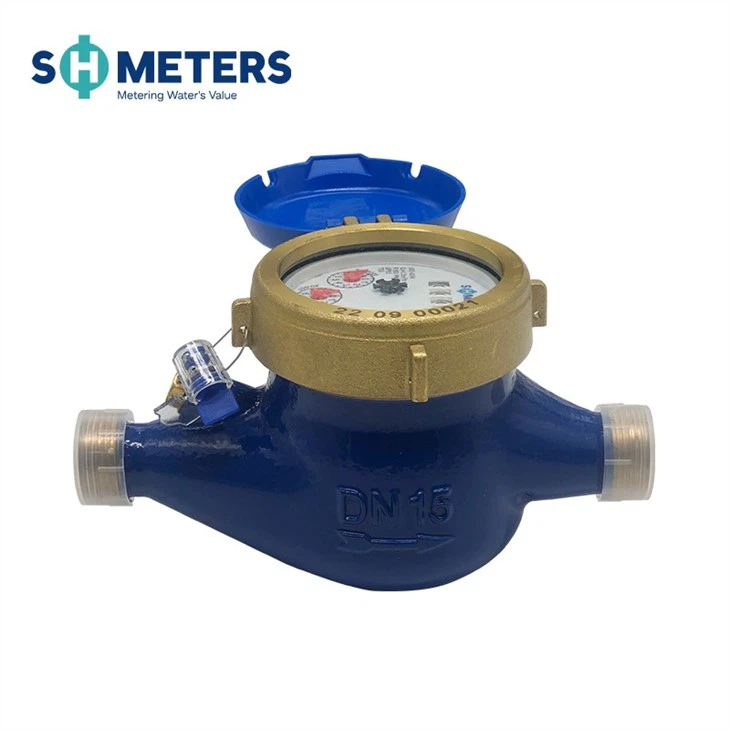

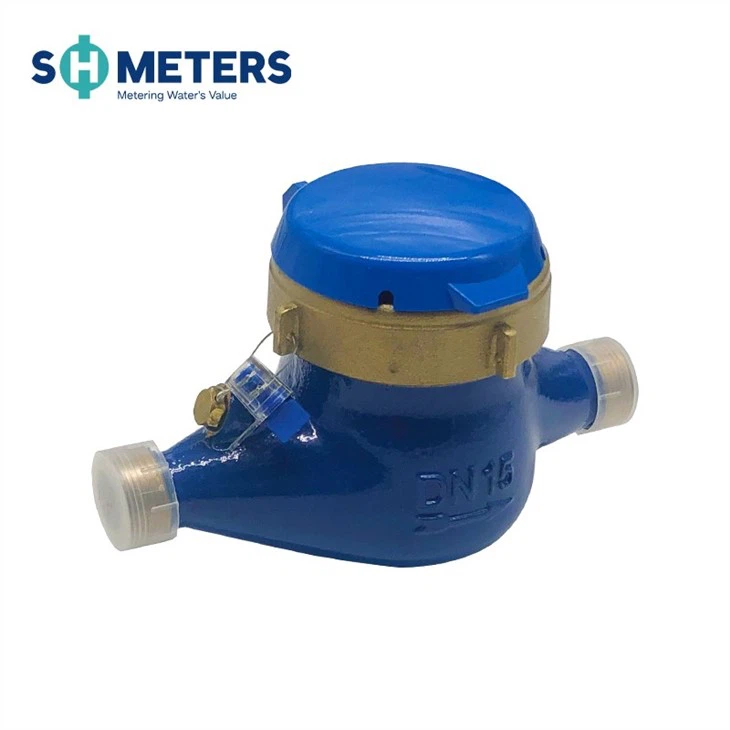

Multi Jet Dry Dial Water Meters

Multi Jet Dry Dial Water Meters

·Accuracy: R=160; 200; class b;class c.
·Size: 15~50mm.
·Cold water.
·Non-return valve.
·Reed switch option.
·Several lengths and connections available on request.
·Thread end type: BSP / NPT.
Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi jet dry dial water meters in China. If you're going to wholesale high quality multi jet dry dial water meters, welcome to get pricelist and quotation from our factory.



multi jet water meter 1

Size

LXSG DN15~DN50

Material

Brass\Plastic\iron\nylon

Installation method

Horizontal\ vertical

Water temperature

Hot\cold

Certificate

ISO4065 Class B

Accuracy

R=160; 200

Thread end type

BSP / NPT

pulse

Reed switch option.

Advantage

1. Accurate and reliable measurement, durable.

2. A small amount of impurities in the water block the water filter network, the impact on the measurement accuracy is small.

3. Parts are not easy to wear.

4. It has a check valve to prevent fluid backflow.

03

04

05

dimension

DN(mm)

15

20

25

32

40

50

50

Size(inch)

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

2"

Length(L)

165/190

190

260

260

300

300

280

Width(W)

98

98

103.5

103.5

125

125

160

Height(H)

116

117

124

124

162

162

187.5

Connecting Thread D

G3/4B

G1B

G11/4B

G11/2B

G2B

G21/2B

Flange end

Weight(kgs)

1.65

1.79

1.85

2.68

5.25

7.25



07

multi jet water meter 1

10

11

12

16
