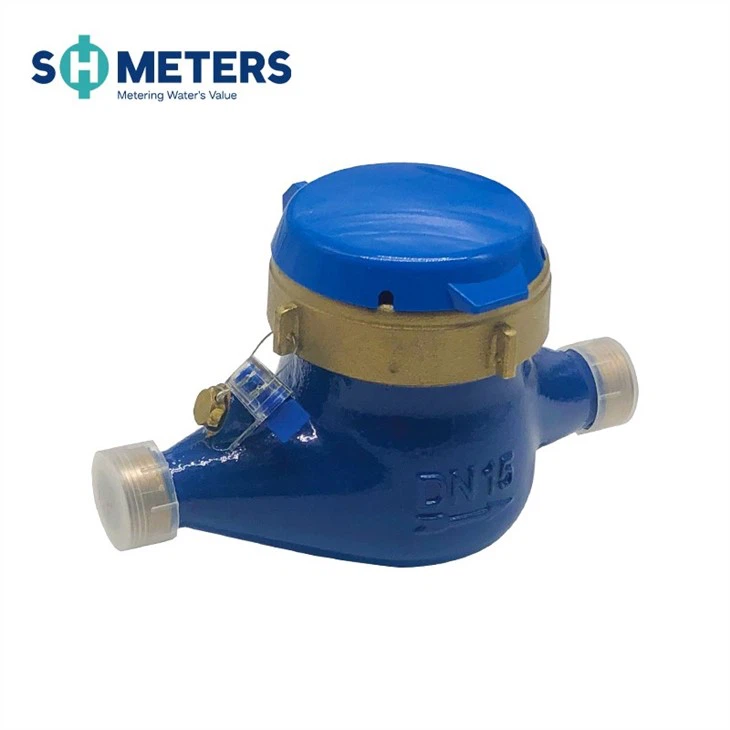

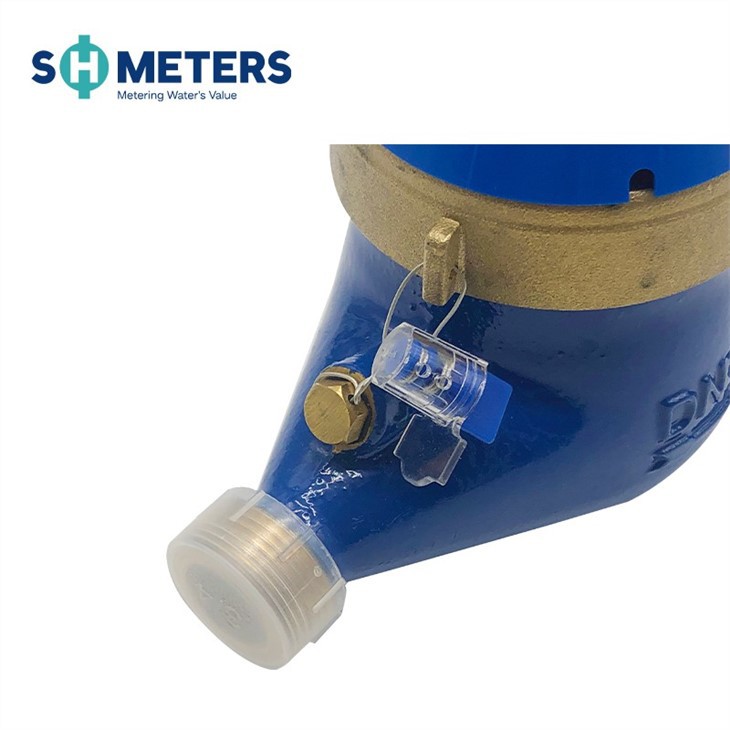

1/2" -2" inch Multi-jet Dry-Dial brass water meter for hot/cold water meter pulse output optional
A pulse output water meter is a type of water meter that provides an electrical signal, or pulse, for a certain volume of water that passes through the meter. The frequency of the pulses indicates the flow rate of water passing through the meter. The pulses can be transmitted to external devices like data loggers or building automation systems, allowing for real-time monitoring and measurement of water consumption.
Pulse output water meters are commonly used in industrial and commercial applications, where accurate measurement of water consumption is required for billing or monitoring purposes. They are often preferred over traditional mechanical meters because they are more accurate, have a longer lifespan, and require less maintenance.
The pulse output feature allows for easy integration with modern building automation systems, enabling users to automate processes like leak detection, alarm generation, and water conservation measures based on real-time usage data.
Application
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Features
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=160; 200;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Plastic
·Plastic Working pressure: PN10(10bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
| Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
| Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
| Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
| Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
| Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
| Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
