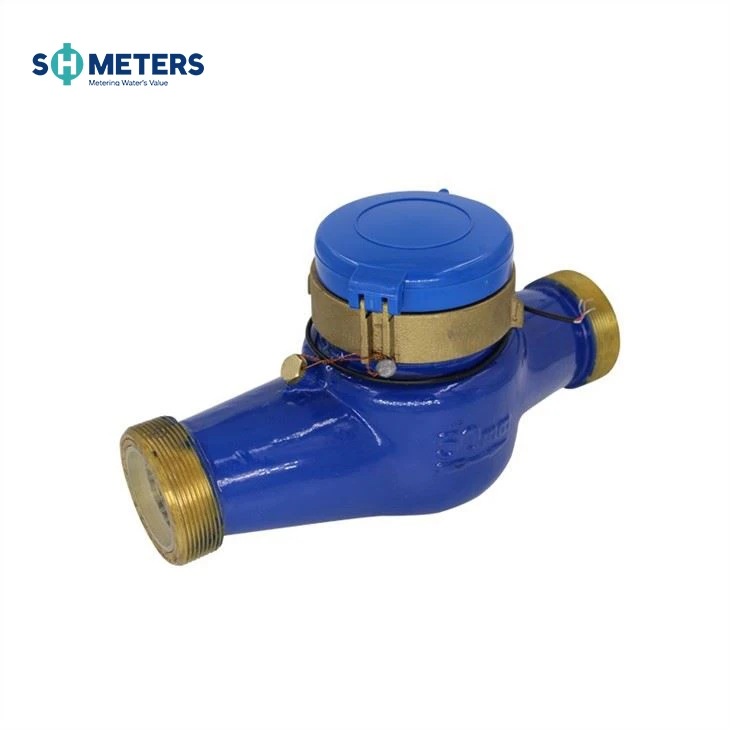

Multi Jet Brass Pulse Water Meter

This pulse water meter is used to measure the total volume of water passing through the pipeline, It can not be used to measure corrosive liquids.
This dry dial pulse water meter is magnetically coupled drive, and has a certain antimagnetic interference function, compact structure, small volume, the generoso appearance.
Counting parts are the pointer combined with the wordwheel, which can be clear readings and also convenient.
The pulse table position can be set according to customer requirements, this water meter can apply to the RF card water meter and Internet reading system.

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi jet brass pulse water meter in China. If you're going to wholesale high quality multi jet brass pulse water meter, welcome to get pricelist and quotation from our factory.

Multi Jet Brass Pulse Water Meter

multi jet water meter (5)

Application:

This pulse water meter is used to measure the total volume of water passing through the pipeline, It can not be used to measure corrosive liquids. This dry dial pulse water meter is magnetically coupled drive, and has a certain antimagnetic interference function, compact structure, small volume, the generoso appearance. Counting parts are the pointer combined with the wordwheel, which can be clear readings and also convenient. The pulse table position can be set according to customer requirements, this water meter can apply to the RF card water meter and Internet reading system.

*Working Condition:
A. For cold water, working temperature: 0.1ºC~40ºC working pressure: ≤1.6Mpa
B. For hot water , working temperature: 40ºC~90ºC working pressure: ≤1.6Mpa

*Error indicating:
a) Low zone: ±5% from minimum flow rate to transitional flow rate
b) High zone: ±2% from transitional flow rate to overload flow rate; hot water will be±3%

multi jet water meter (6)
