Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of class c residential 15mm- 50mm plastic multi-jet water meter in China. If you're going to wholesale high quality class c residential 15mm- 50mm plastic multi-jet water meter, welcome to get pricelist and quotation from our factory.

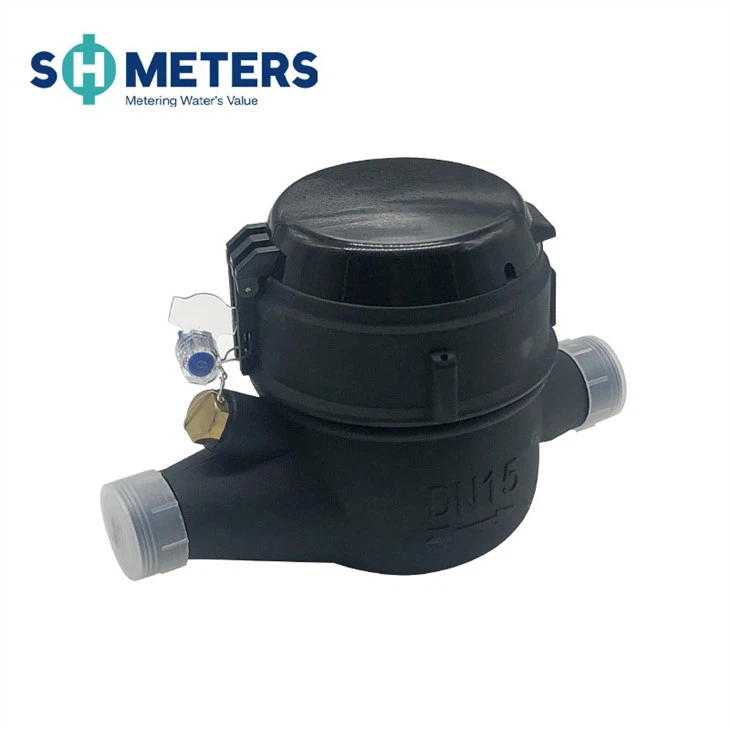

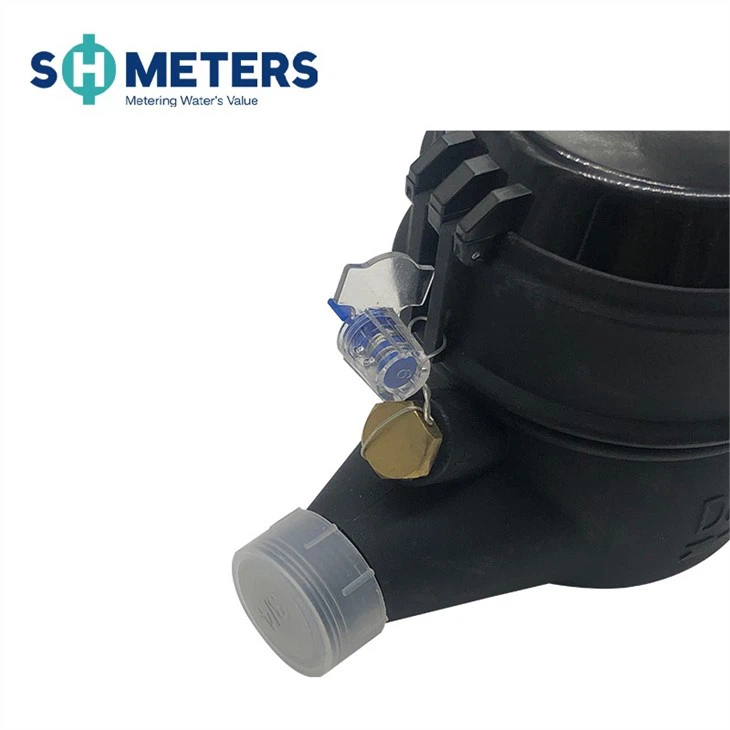

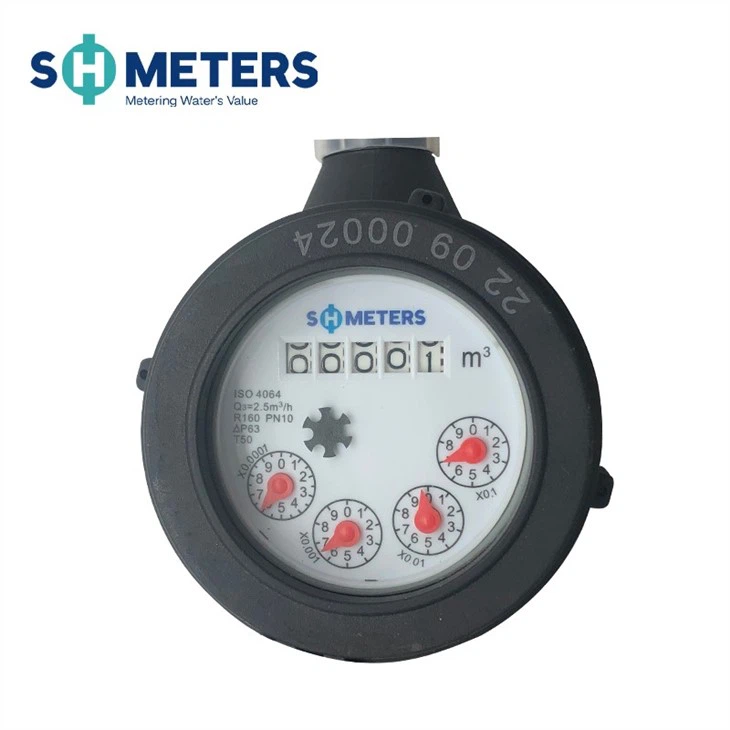

Class C residential 15mm- 50mm plastic multi-jet water meter
A multi jet water meter is a type of water meter used to measure the volume of water passing through a pipe. This type of meter typically uses several ports that measure water from different directions to more accurately measure the flow of water.
|
DN (mm)
|
15
|
20
|
25
|
32
|
40
|
50
|
50
|
|
Size (inch)
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2"
|
|
Length (L)
|
165/190
|
190
|
260
|
260
|
300
|
300
|
280
|
|
Width (W)
|
99/104
|
98
|
103.5
|
103.5
|
125
|
125
|
160
|
|
Height (H)
|
116/121
|
117
|
124
|
124
|
162
|
162
|
187.5
|
|
Connecting Thread D
|
G3/4B
|
G1B
|
G11/4B
|
G11/2B
|
G2B
|
G21/2B
|
Flange end
|
|
Weight (kgs)
|
1.65
|
1.79
|
1.85
|
2.68
|
5.25
|
7.25
|
|
