In This Post:
How to understand the STS prepaid water meter?
How does the STS prepaid water meter work?
How is the progress of S.H.Meters' STS water meters?
What are the main advantages of STS water meters?
What are the application areas of STS water meters?
How to install and maintain STS water meters?
1. How to understand the STS prepaid water meter?
The STS prepaid water meter is an intelligent water meter system based on standard transmission protocol, which allows users to pay before using water resources. The system usually consists of a water meter, a user interface unit (such as a keyboard or display), and a backend management system. Users activate the water use function of the water meter by purchasing prepaid water and entering the recharge code obtained into the water meter. The STS protocol ensures the security and reliability of data transmission, and the user's water consumption is accurately measured and controlled within the recharge amount. Such water meters are often used in public utilities to reduce the problem of arrears in water bills and ensure the reasonable allocation and management of water resources.
STS prepaid water meters have been widely used in many countries and regions, especially in some areas with greater challenges in water resource management. For example, South Africa, Ghana, Kenya, Nigeria, etc., these countries face difficulties in water resource management and water fee collection, as well as Brazil, Mexico, and other countries with severe water resource management problems due to rapid urban expansion. In addition, due to the scarcity of water resources and extremely high requirements for water resource management, STS prepaid water meters are also widely used in countries such as the United Arab Emirates and Morocco.
2. What is STS?
STS (Standard Transfer Specification) is an international standard protocol for secure and reliable data transmission in prepaid systems. The STS standard was originally designed for electricity prepaid systems, but was later widely used in water meters and other utility devices. Through the STS standard, users can activate and use the corresponding services by purchasing prepaid vouchers (such as recharge codes or tokens) and entering them into the device. The STS protocol ensures that data transmission during the recharge process is encrypted and secure, thereby avoiding illegal operations and fraud.
The origin of the STS standard can be traced back to the early 1990s. It was initiated and promoted by the South African National Electricity Company (Eskom) and was originally used in electricity prepaid systems. Over time, the STS standard has gradually evolved and expanded to other utility fields, such as water, gas, etc. Today, the STS standard has been adopted by many countries and regions around the world and is widely used in prepaid systems for electricity, water, and gas, becoming an important tool for smart utility management.
3. How does the STS prepaid water meter work?
3.1 What is the working principle of the STS prepaid water meter?
The working principle of the STS prepaid water meter is based on encryption technology and standardized data transmission protocols. The user first purchases a recharge code through a store, online platform, or self-service terminal, and obtains a unique code containing encrypted information after completing the payment. The user enters the recharge code into the user interface of the water meter (such as a keyboard or touch screen). At this time, the water meter sends the recharge code to the background management system through an encrypted channel for verification. The background system uses a symmetric encryption algorithm to decrypt the recharge code and ensures the integrity and validity of the data through checksum and digital signature technology. If the recharge code is verified to be valid, the background system will update the user's water balance and return the updated information to the water meter. After receiving the updated balance information, the water meter will adjust the user's remaining water accordingly and control the water consumption according to the new balance. When the balance is lower than the preset threshold, the water meter will issue an alarm to remind the user to recharge. If the balance is exhausted, the water meter will automatically stop supplying water until the user completes recharging. The overall process ensures the security of the recharge process and the accuracy of the data through this encryption and verification mechanism, thereby achieving efficient water management.
3.2 How to operate the STS prepaid water meter?
The operation process of the STS water meter can be divided into the following steps:
- Recharge and purchase: The user purchases the water fee recharge code through a store, online platform or self-service terminal, and obtains a unique recharge code after completing the payment.
- Enter the recharge code: The user enters the obtained recharge code into the user interface of the water meter (such as a keyboard or touch screen).
- Complete the recharge and use the water: The water meter sends the recharge code to the background management system through an encrypted channel for verification. After the verification is successful, the background system updates the user's water balance and returns the information to the water meter. After the water meter adjusts the balance, the user can use water normally until the balance is exhausted.
4. How is the progress of S.H.Meters' STS water meters?
S.H.Meters focuses on independent research and development and has recently made significant progress in the research and development of STS water meters.

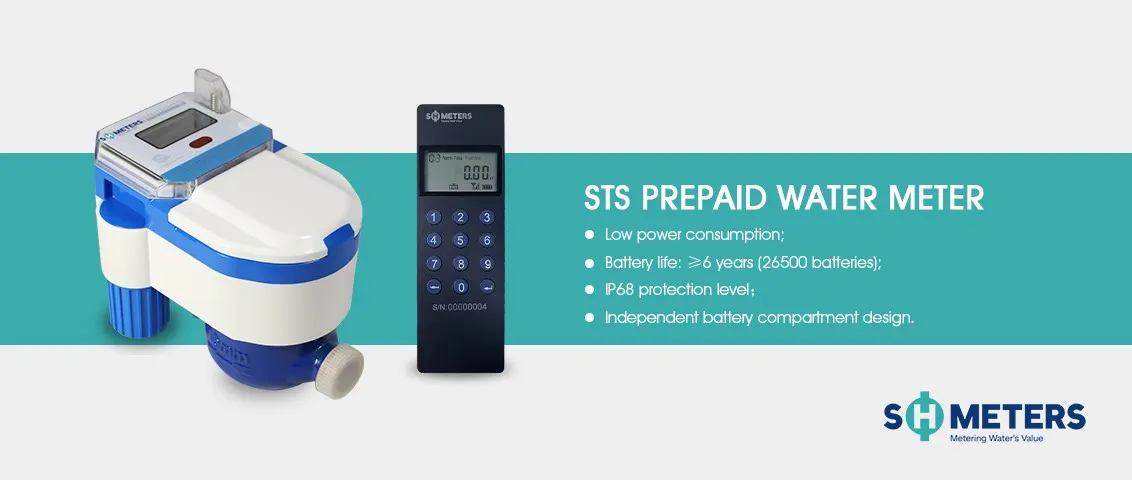

Split STS water meter upgrade completed: The latest split STS water meter has completed technical upgrades and has stronger performance and durability. Highlights of this upgrade include:
- Extended battery life: The upgraded STS water meter battery life is up to 6 years, significantly extending the service life of the equipment and reducing maintenance costs.
- Improved protection level: The water meter's protection level has reached IP68, which means it has excellent dust-proof and waterproof performance and can work reliably in various harsh environments.
- Independent battery compartment design: The new water meter adopts an independent battery compartment design, which makes battery replacement more convenient and does not require professional tools or technical support, greatly simplifying the maintenance process.
Product consistency certification: S.H.Meters' STS water meter has obtained the product consistency certification certificate issued by the South African STS Association (STS Association). This certification proves that the product meets international standards, ensuring its broad applicability and reliability in global markets.
Water sales platform software: In order to further improve user experience and management efficiency, S.H.Meters is actively developing water sales platform software. The software will be seamlessly integrated with STS water meters to provide intelligent water sales management functions. Users can easily conduct water recharge, data monitoring, and bill management through the platform. It is expected that this software will be launched soon, which will provide users with more convenient and efficient solutions.
S.H.Meters' STS water meters have reached new heights in technology, design, and certification. At the same time, the competitiveness of its overall products has been further enhanced through the upcoming water sales platform software.
5. What are the main advantages of STS water meters?
5.1 Preventing water theft and fraud: How do STS water meters help water companies control users' water use behavior?
- Encryption technology: The STS system uses a powerful encryption algorithm to generate prepaid vouchers, making them impossible to forge or tamper with. Only legitimate vouchers can be used on water meters to prevent illegal recharges and water theft.
- Tamper-proof design: STS water meters usually adopt a tamper-proof design, which makes it physically difficult for unauthorized personnel to open or change their internal structure, effectively preventing users from privately modifying water meter data to achieve the purpose of stealing water.
- Remote monitoring: For STS water meters that support remote communication, water companies can monitor the status and water use of each water meter in real-time through the background system, and promptly detect and deal with abnormal water use behavior.
5.2 Reduce operating costs: How to reduce operating costs through STS water meters?
- Reduce manual meter reading: Traditional water meters require manual meter reading, which is labor-intensive and prone to errors. STS water meters eliminate the need for meter readings through the prepaid system, reducing labor costs and related operational risks.
- Automatic billing: The prepaid system of STS water meters realizes automatic billing, and users complete the payment of fees when recharging. This can avoid errors and disputes caused by manual billing and improve billing accuracy.
- Improve efficiency: Since STS water meters do not require frequent manual intervention, water companies can invest more resources in other core businesses, optimize operating processes, and improve overall efficiency.
6. What are the application areas of STS water meters?
STS water meters are usually used in urban water supply systems for large-scale water metering and management in residential areas, commercial areas, etc., to ensure accurate collection of water charges and improve the management efficiency of water supply systems. For example, in countries such as South Africa and Mozambique, the large-scale use of STS water meters has become a trend.
6.1 What are the advantages of STS water meters for large-scale water users?
The advantages of STS water meters for large-scale water users mainly lie in their efficient cost management and reduced operating costs. Through the prepaid system, enterprises can better control and plan water costs and avoid financial uncertainty. At the same time, automated billing and data transmission reduce the need for manual meter readings and improve work efficiency. In addition, STS water meters also provide real-time monitoring functions, which can promptly detect and adjust abnormal water use conditions, and through encryption and anti-tampering design, effectively prevent water theft and fraud to ensure water safety.
6.2 How do ordinary households benefit from STS water meters?
The benefits of users from STS water meters are mainly reflected in cost management, water transparency, and service convenience. Through the prepayment system, users can recharge before using water, effectively control and plan their budgets, and avoid unexpectedly high bills. STS water meters also provide real-time water usage data and balance display, allowing users to understand their water usage at any time and have a clearer grasp of water usage habits and costs. In addition, flexible recharge methods allow users to conveniently recharge through multiple channels and immediately view the updated balance, enjoying more convenient water services.
7. How to install and maintain STS water meters?
7.1 Basic steps and precautions for installing STS water meters?
- Preparation: First, check whether the specifications of the water meter are consistent with the installation requirements, and make sure that the water supply system is turned off to prevent water leakage. Before installation, prepare the necessary tools and materials. Note that the pipes need to be flushed before installation to avoid foreign objects such as gravel.
- Disconnect the old water meter: Carefully remove the old water meter and ensure that the pipes and interfaces are clean and free of residual moisture. Check whether the pipes are damaged or worn, and repair or replace them if necessary.
- Install the new water meter: Check whether the seals of the new water meter are intact and ensure that they are not damaged. Install the water meter correctly on the pipe according to the instructions, ensure that the water meter is aligned with the pipe, and the connection is tight to prevent water leakage. Note that the water meter must not be installed in places that may be affected by strong mechanical vibrations
- Connect power and set up: If the STS water meter requires power, connect the power cord correctly and perform system settings, including configuration data and calibration, to ensure the function and accuracy of the water meter.
- Test and check: Reopen the water source and check if there is any water leakage at the water meter installation site. Perform functional tests to ensure that the water meter can measure water normally and display data accurately.
- Record and report: Record the initial reading and installation date of the water meter for follow-up tracking. If necessary, notify the water company or other relevant management department of the installation completion information to update the system data.
- Cleaning work: After the installation is completed, clean up the installation site, dispose of the old water meter and other waste, and ensure the safety and cleanliness of the installation area. Note that if there is any failure during use, such as metering failure, please contact the relevant management department in time.
7.2 What are the maintenance issues of STS water meters?
During the installation and maintenance of STS water meters, some problems may occur. We provide you with solutions to some common problems. If you have more water meter-related problems, you are also welcome to contact our product engineers for more solutions.
- Water leakage problem:
Cause: Improper installation or aging of seals, loose connections, and broken pipes.
Solution: Check and reinstall the seals to ensure that the connections are tight. Regularly replace aged seals and check the integrity of pipes.
Reasons: The water meter is not installed horizontally or does not conform to the correct flow direction, the flow exceeds the measurement range of the water meter, or there are bubbles or foreign objects in the pipe.
Solution: Reinstall the water meter to ensure that it is placed horizontally and in line with the direction of the water flow. Remove bubbles or foreign objects in the pipe and check whether the flow is within the measurement range of the water meter.
- Data transmission failure:
Reasons: Signal interference, low battery, or module failure.
Solution: Check whether there is signal interference, ensure that the battery is sufficient, and replace or repair the data transmission module if necessary.
- Water meter display failure:
Reasons: Low battery, damaged display, internal electronic component failure.
Solution: Replace the battery, check and repair or replace the display and related electronic components.
- Metering failure:
Reasons: Wear or blockage of mechanical parts inside the water meter, or flow sensor failure.
Solution: Check the inside of the water meter, clean or replace worn parts, and ensure that the flow sensor is working properly.
STS prepaid water meters significantly improve water use transparency, reduce water theft and fraud risks, and reduce operating costs through encryption technology and prepaid models. It not only brings significant efficiency improvements to the water industry but also enhances user experience. S.H.Meters is also actively promoting MID certification applications and ultrasonic STS development plans.
