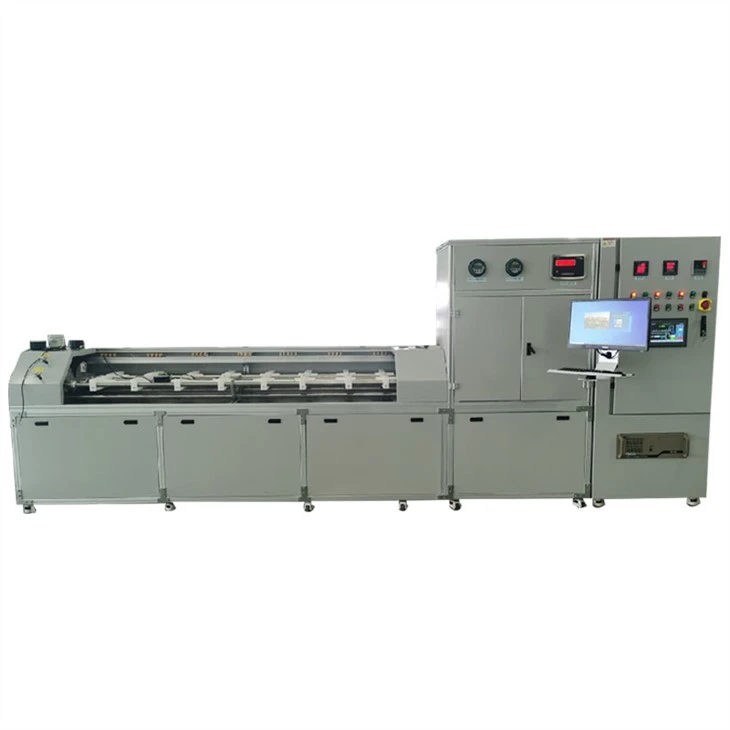

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15mm~dn50mm ultrasonic water meter test bench in China. If you're going to wholesale high quality dn15mm~dn50mm ultrasonic water meter test bench, welcome to get pricelist and quotation from our factory.
Device Configuration Selection Table
Model | SHA50-P-1 |
The main standard | Piston + Electronic scale |
Flow range (m³/h) | 0.002-32 |
Water pump | Grundfos/Ville |
Maximum working pressure (bar) | 16 |
Length of table to be inspected | DN15(165mm),DN20(195mm),DN25(225mm),DN32(225mm),DN40(225mm), DN50(225mm) (The length could be customized) |
Piston specifications | Volume 22L, resolution 0.036ml, pressure PN16, Panasonic servo drive |
Electronic scale | Mettler Toledo, 1*60K+1*600KG |
Weighing container | 1*60L+1*600L |
Electromagnetic flowmeter | Yokogawa AXG, 1*DN2.5+DN25+1*DN50 |
Commutator | DN25, DN50 |
Temperature sensor | PT100, accuracy class A installed at both inlet and outlet |
Pressure sensor | Accuracy 0.5% installed at both inlet and outlet |
Test method | Start stop method/Commutator method |
Signal interface is standard | Pulse / MBUS / RS485/Image acquisition/Laser sensor |
Equipment power | 380V, 50Hz, 3 Phase 5Wire Power, 30KW(peak power) |
Other Power | Pure water /6bar air pressure |
Basic device information
Device flow range | (0.002-32)m³/h |
Device uncertainty | ≤0.2%(k=2) |
Pressure range | 0- 1.6MPa |
Environment temperature | 15- 25℃ |
Relative humidity | 45% -75% |
Atmospheric pressure | (86-106)kpa |
Work stress | 0- 1.6MPa |
Service voltage | 400V±5% 50HZ |
Bleed pressure | (3.5-6)bar |
Equipment power | Water pump 11KW Piston 3KW Heating 12KW(Optional) |
Inspection table quantity | DN15:10pcs, DN20:8pcs, DN25:6pcs, DN32:4pcs, DN50:2pcs, Can customize to double line |
Dimension | 5800 mm *1500 mm *2500mm |

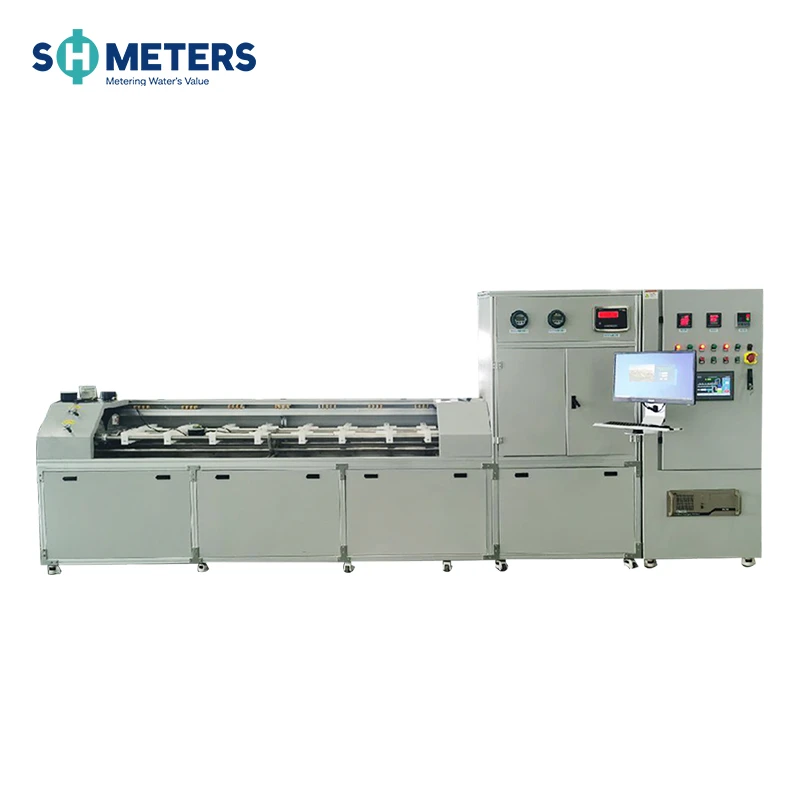

General steps for using a fully automatic water meter test bench

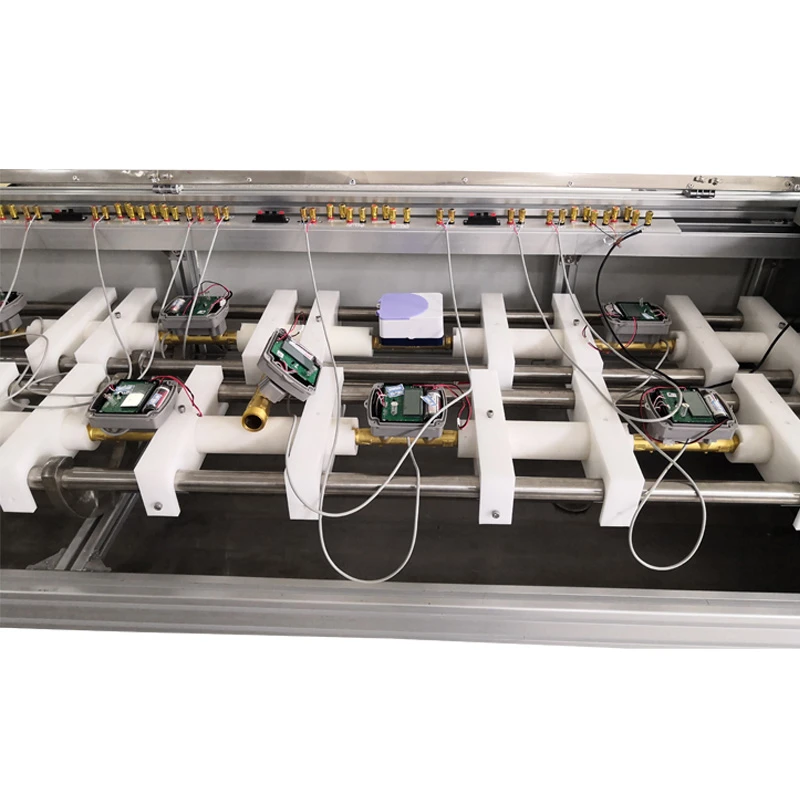

Place the water meter on the test stand and fix it with clamps, but do not overtighten. Make sure the axis of the water meter is aligned with the pipe of the test bench.
Flushes air through the system, eliminating air bubbles. Keep system pressure steady. Make sure the pipes and water meter are full of water. Install the water meter horizontally or vertically upward to prevent water leakage from pipes and water meters.
Record the initial reading of the water meter.
For new water meter inspections, start with a high-flow test, then proceed to a low-flow test.
Open the water discharge valve of the test bench and adjust to the required maximum flow test value.
Record the standard volume flowing through the system and the volume indicated by the water meter, and calculate the error.
Repeat the above steps for medium flow and minimum flow tests.
