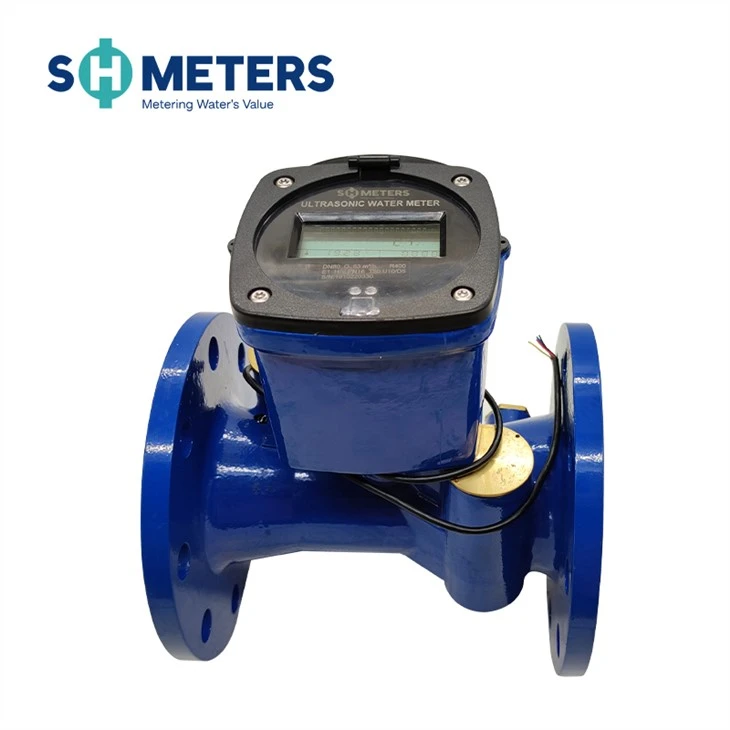

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of bulk ultrasonic water meter r400 manufacturer in China. If you're going to wholesale high quality bulk ultrasonic water meter r400 manufacturer, welcome to get pricelist and quotation from our factory.
Bulk ultrasonic water meter description
Ultrasonic water meters will be increasingly used in agricultural irrigation. It can control the amount of water used for plants based on data.
In the era of big data, no matter which industry, data analysis is becoming more and more important. Ultrasonic water meters can directly upload data to the management system and store it for more than 12 months, which makes it very convenient for professional companies to continuously analyze the data.
Ultrasonic water meter Features
- Wide range ratio, and less than 0.01m/s starting flow.
- A large amount of display information, 9-digit cumulative flow, and 4-digit instantaneous flow are displayed on the same screen.
- Energy-saving design concepts, such as an empty pipe or a long-term fluid static state, will enable the instrument will automatically save power.
- Full IP68 protection level design, all parts are completely sealed and protected, and can work normally for a long time even if water enters.
- The design has the function of accumulating, recording, and collecting data in the year, month, and day.
- With a variety of communication interfaces: standard RS-485 interface. The infrared communication interface supports standard MODBUS, M-BUS, and HART communication protocols.
- Various output signal methods; available pulse signal output, also supports RS-485 signal output.
- A quantitative controller can be built in, which can automatically start the controller manually or at a set time, and then realize automatic timing and quantitative water supply or quantitative irrigation.
- Various unit systems are available according to different customer needs, including cubic meters, US gallons, cubic feet, and liters.
- Built-in lithium battery, battery life of more than 8 years.
Ultrasonic Water Meter Parameters
|
Nominal diameter(mm) |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
|
Length L(mm) |
200 |
200 |
225 |
250 |
250 |
300 |
350 |
450 |
500 |
|
Width B(mm) |
170 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
Hight H(mm) |
215 |
220 |
235 |
255 |
285 |
335 |
405 |
490 |
550 |
|
Overload flow Q4(m³/h) |
50 |
78.75 |
78.75 |
125 |
200 |
312.5 |
500 |
787.5 |
1250 |
|
Permanent flow Q3(m³/h) |
40 |
63 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
|
Transitional flow Q2 (m³/h) |
0.16 |
0.256 |
0.256 |
0.4 |
0.64 |
1 |
1.6 |
2.52 |
6.4 |
|
Minimum flowQ1(m³/h) |
0.1 |
0.16 |
0.16 |
0.25 |
0.4 |
0.625 |
1 |
1.575 |
4 |
|
Start-up flow(m³/h) |
0.0143 |
0.0229 |
0.0360 |
0.0571 |
0.0914 |
0.1429 |
0.2286 |
0.36 |
0.5714 |
Ultrasonic water meter application
In large-scale water usage scenarios such as agricultural irrigation and landscape irrigation, accurate measurement, stable operation, and low maintenance costs are the core requirements. With advantages such as no mechanical wear, a wide measurement range, and strong anti-interference capability, large-diameter ultrasonic water meters are becoming the preferred solution in the irrigation sector.
