Product Description
The ultrasonic water meter is a metering instrument to continuously measures, records, and displays the volume of water flowing through the sensor by use of the ultrasonic time difference method. Please read this manual carefully before use, to use it to the best advantage and avoid unnecessary loss.
Product Features
- Low starting rate (33L/h), able to accurately measure flow rate as low as 100L/h.
- Dynamic range (Q3/Q1) achieved 250:1;(R400 optionaloptional).
- No mechanical moving parts, no abrasions, and has a long service life.
- No measurement of air.
- Mounting in any installation position.
- Displaying of error and alarm codes.
- Optional battery provision.
- Support RS485/Pulse/LoRaWAN/GPRS/NB-IOT communication.
- Suitable for outdoor installation.
- IP68 waterproof level.
Outline Dimension Drawing
|
Nominal
Diameter(mm)
|
Length L(mm) | Width B(mm) | Hight H(mm) | Flange Diameter |
Bolt Circle
Diameter
|
| DN50 | 200 | 170 | 215 | 170 | 125 |
| DN65 | 200 | 185 | 220 | 185 | 145 |
| DN80 | 225 | 200 | 235 | 200 | 160 |
| DN100 | 250 | 220 | 255 | 220 | 180 |
| DN125 | 250 | 250 | 285 | 250 | 210 |
| DN150 | 300 | 285 | 335 | 285 | 240 |
| DN200 | 350 | 340 | 405 | 340 | 295 |
| DN250 | 450 | 405 | 470 | 405 | 355 |
| DN300 | 500 | 460 | 525 | 460 | 410 |
| DN350 | 500 | 520 | 520 | 520 | 470 |
| DN400 | 600 | 580 | 580 | 580 | 525 |
Technical Parameter
|
Nominal Diameter (mm)
|
50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||||||||||
|
Max flow Q4(m³/h) |
31.25 | 50 | 78.75 | 125 | 200 | 312.5 | 500 | 787.5 | 1250 | 2000 | 3125 | ||||||||||||||||
|
Nominal flow Q3(m³/h) |
25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2500 | ||||||||||||||||
|
Transitional flow Q2(m³/h) |
0.16 | 0.256 | 0.403 | 0.64 | 1.024 | 1.6 | 2.56 | 4.032 | 6.4 | 10.24 | 16 | ||||||||||||||||
|
Min flowQ1(m³/h) |
0.1 | 0.16 | 0.252 | 0.4 | 0.64 | 1 | 1.6 | 2.52 | 4 | 6.4 | 10 | ||||||||||||||||
|
Start-up flow(m³/h) |
0.033 | 0.06 | 0.09 | 0.14 | 0.21 | 0.31 | 0.56 | 0.88 | 1.2 | 1.72 | 2.63 | ||||||||||||||||
|
Temperature Class
|
T30 / T50
|
||||||||||||||||||||||||||
|
Maximum Admissible Pressure
|
PN16
|
||||||||||||||||||||||||||
|
Accuracy class |
Class 2 |
||||||||||||||||||||||||||
|
Pressure loss class |
0.4bar |
||||||||||||||||||||||||||
|
Electromagnetic Environmental Class
|
E1 |
||||||||||||||||||||||||||
|
Environmental Classification
|
O |
||||||||||||||||||||||||||
|
Battery life |
＞ 8years |
||||||||||||||||||||||||||
|
Installation position |
Any angle |
||||||||||||||||||||||||||
|
Display |
LCD, 9 digits + additional characters
|
||||||||||||||||||||||||||
|
Flow profile sensitivity class |
U10/D5 |
||||||||||||||||||||||||||
|
Communication interface |
RS485 Modbus/ Pulse output/GPRS/NB-IOT/LoRaWAN |
||||||||||||||||||||||||||
|
Protection class |
IP68 |
||||||||||||||||||||||||||
Working Principle
Ultrasonic water meter is a new type of water meter that can detect the time difference caused by the change of speed when the ultrasonic beam propagates in the water upstream and downstream, analyze and deal with the flow rate of water, and then calculate the flow rate of water further.
Notices for Installation
★ Flush pipes before installation to avoid gravel and other foreign objects.
★ Install a valve and filter before the water meter;
★ Do not touch the electrical part or pull wires to avoid damage during installation.
★ Reserve an adequate space for maintenance during installation.
★ When the water meter is installed in a horizontal or inclined way, the ultrasonic flow probe on pipes shall be placed
horizontally, and when installed vertically, make sure the water flows from down to up.
★ Please note that the arrow direction on the pipe shall be consistent with the water flow direction during installation.
★ The joint washer shall be installed correctly to avoid a misaligned washer blocking water and affecting the accuracy of the water meter.
★ The water meter shall not be installed at a place that may be affected by strong mechanical vibrations;

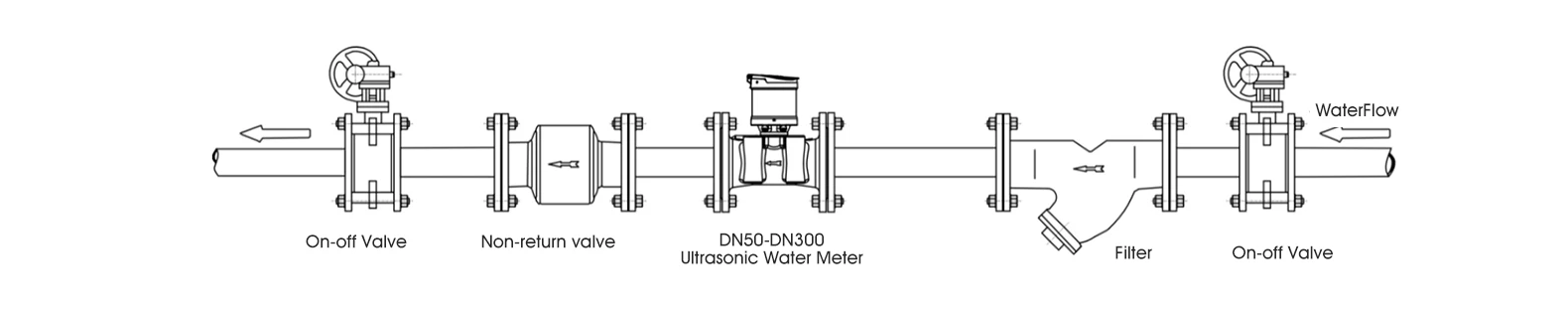

Special Notices: 1. Be sure to install an on-off valve and filter before the water meter, and another on-off valve is recommended after it for maintenance.
★ If the ultrasonic water meter is installed through the flange, make sure the parallelism between the water meter flange and pipe flange is not more than 0.5% of the flange's outer diameter and is less than 2mm; otherwise, it may result in damage to the water meter.
★ Before using this water meter, the pipe must be filled with water, otherwise, it will lead to inaccurate or even non-measurement.
★ When installing the water meter, it should be reserved length of DN*10 in front of the water meter. Or it should be reserved for the length of DN*5 behind the water meter.
★ The water meter shall refresh the display every 4s, and read the water meter (including the starting value and end
value) 4 seconds at least after the valve is closed when testing the water meter, otherwise the testing results may be affected;
★ Please make sure the medium flow is within the flow range of the water meter during test and use, otherwise it may result in
In damage to the water meter;
★ In case of any malfunction (e.g., metering failed, etc.) during use, please contact the related management department
Immediately and do not repair it by yourself;
★ The product is designed with a disposable anti-disassembly seal which shall be removed only by appointed personnel, or
Otherwise, it shall be excluded from the free after-sales service.
Meter Display Content
P1: In the last interface of P1, keep covering the sensing area for more than 3S to enter P2, and repeat this operation to enter P3, P4
P2: Cumulative flow of the historical month
P3: For internal debugging and testing, it does not have any meaning.
P4: Test status
| Mode | No. | Display Description |
| P1 | 1 | Cumulative flow |
| 2 | Temperature | |
| 3 | Size | |
| 4 | Flow rate | |
| 5 | Negative cumulative flow | |
| 6 | Net cumulative flow | |
| 7 | Working time | |
| 8 | Sensor status | |
| 9 | Power voltage | |
| P2 | Cumulative flow of the historical month | |
| P3 | For internal debugging and testing, it does not have any meaning | |
| P4 | 1 | Cumulative flow |
| 2 | Coefficient | |
| 3 | Flow rate | |
| 4 | Working time | |
Note: The display interface of the meter is subject to change for customization or upgrading.
Interface/Communication
The ultrasonic water meter will have one of the many options output pre-selected when placing the order. This section will describe each output:
- Modbus/RS485 output
- Pulse output
- Wireless output
Modbus/RS485 output
Pulse Output (Battery Powered)
- Pulse output parameters:
- Open-drain output
- Voltage 3V～24V
- Low-level single pulse
- Pulse duration: 5ms
GPRS/NB-IOT wireless transmission
Data Collector
|
Data name |
Parameter |
|
Static power |
15uA |
|
Power consumption |
60mA@RX |
|
Control box |
Plastic |
|
Online method |
Touch or automatically go online |
|
Reporting interval |
How often to send data: Once every three days or once a day (The higher the sending frequency, the shorter the battery life) |
|
Sending bit |
0.1m³ |
|
Power supply |
3.6VDC |
|
Battery capacity |
8.5Ah |
|
Uplink interface |
GPRS/NB-IOT |
|
Downlink interface |
RS485 |
Data Transmission Unit
|
Data name |
Parameter |
|
Static power |
15uA |
|
Power consumption |
60mA@RX |
|
Control box |
Plastic |
|
Online method |
Touch or automatically go online |
|
Reporting interval |
How often to send data: 1～144 h can be set(Default once a day) Can be connected to the pressure collection device |
|
Sending bit |
0.1m³ |
|
Power supply |
3.6VDC |
|
Battery capacity |
18Ah/36Ah |
|
Uplink interface |
GPRS/NB-IOT |
|
Downlink interface |
RS485 |
