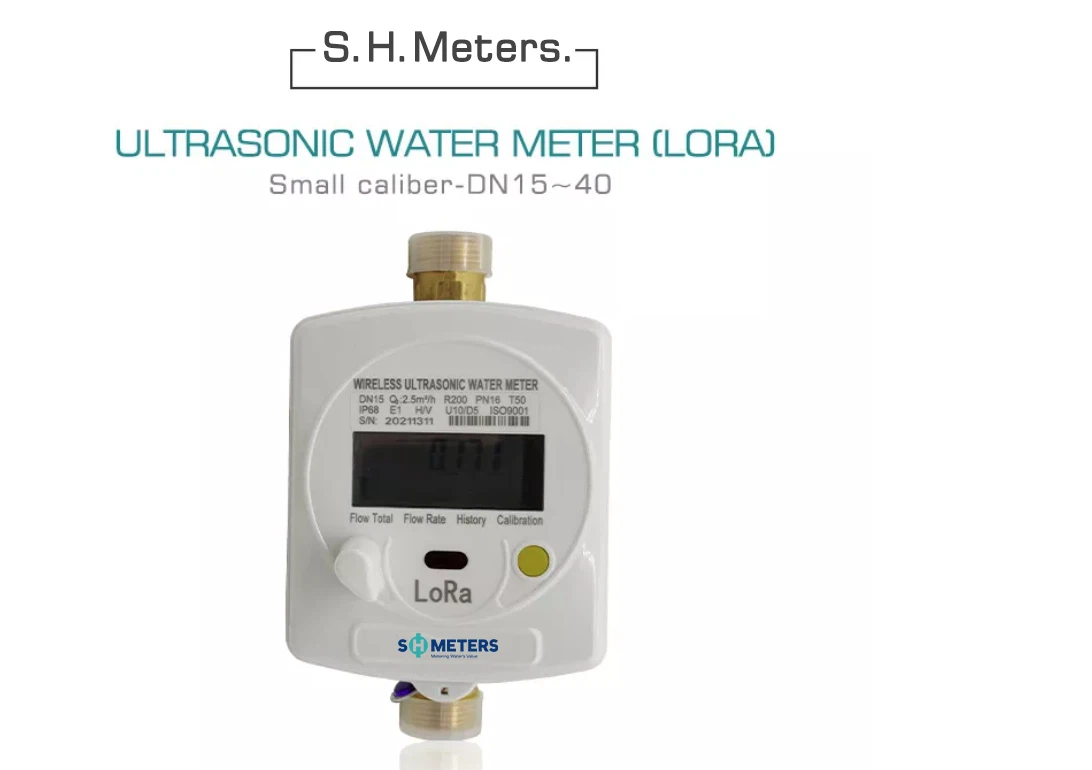

Smart Ultrasonic Water Flow Meter

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart ultrasonic water flow meter in China. If you're going to wholesale high quality smart ultrasonic water flow meter, welcome to get pricelist and quotation from our factory.

* Before installing, flush pipes to prevent stones and other debris in the pipe

* Install valve, Filter, and suggest installing check valve (see the below picture ) to prevent the water flow impact measurement; (if the connecting pipe has already installed the check valve, it won't install the check valve anymore.

* When installing the water meter vertically, should make sure the direction of fluid flow from the bottom to the top

* Heat meters installation should pay attention to the direction of the arrow with the same direction of the fluid flow

* Joint gasket should be installed upright to prevent blocking the flow of water by gasket dislocation and affect the accuracy of measurement of heat meters;

* Heat meters should not be installed in a position that is strongly influenced by mechanical shocks;

* The installation process can not pull the product's exposed wires , non-tossing, and should allow sufficient space for maintenance;

* When installing the heat meters, there should be 5 times straight pipe length in front and 3 times straight pipe length the behind

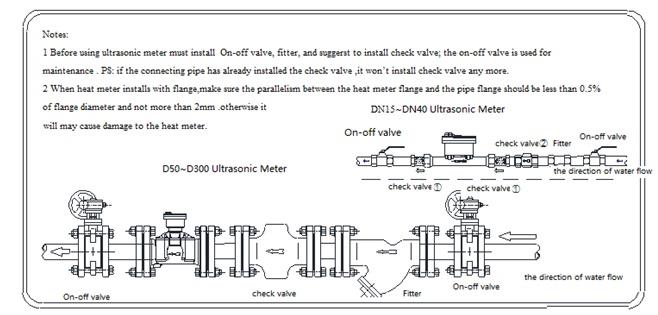

Installation Example

* Heat meter detection, must wait for the flashing of the detection arrow

* Water meter per second to refresh the display, when detecting the meter, the valve should be closed at least 16 seconds before the reading (including the initial value and the end value), otherwise it will affect the detection results

* During test and use, please ensure that the media flow in the flow range of these heat meters, or it will cause damage to the heat meters;

* For Products using wired remote communication, the connection must be in accordance with the requirements of connecting Identification.

* During use, if there is an abnormal problem (such as measurement is not working, etc.), please contact the relevant administrative departments, not to self-maintenance;

* Product design with a disposable tamper-evident seal, unauthorized persons can't remove it, or you will lose the right to get free service

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..

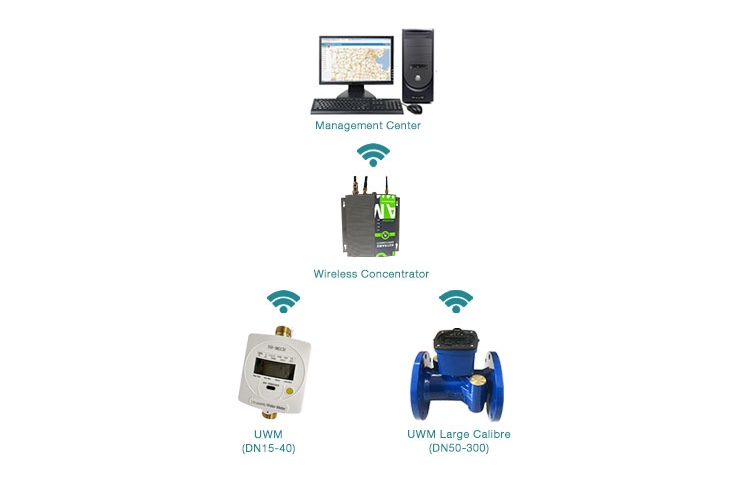

The system structure diagram is as follows
· Server sends commands to the data concentrator through the network;
· Concentrator transforms the received commands into a radio signal and sends the signal to the water meters;
· Water meters respond and execute the commands accordingly;
· Water meters deliver the result or data back to the management center as per the original route after the actions are finished.

Service
· Quality Guarantee: Water meter for 1 year;
· Support install guide & test in site;
· Date sheets can be sent to another management system easily.

Brief introduction

Ultrasonic water meter is a new type of water meter that detects the time difference caused by the change of velocity when the ultrasonic beam propagates in the opposite direction of the water, and analyzes and processes the flow rate of water to further calculate the flow of water.

The loss caused by the leakage of the water supply pipe net is very alarming, especially when the pipeline bursts suddenly. After the pipe burst, the loss in one hour is as high as 1250 cubic meters of water. if it can't be repaired in time, the burst water will wash the ground and cause the road collapse, which will cause casualties and property losses.

Our pipe network monitoring system can quickly locate the pipeline to be repaired and send out the alarm message after the pipe burst. Our users can organize emergency repair for the first time to recover theloss and eliminate the tho hidden danger.

Features

·Material: brass
·Applicable scene:home, apartment,  garden housing, ground, commercial, residential building, malls, household portable, garden, domestic residential
·Technical data conform to international standard ISO 4064.
·Communication:rs485 Modbus,LoRa
·Fitting: Pressure sensor,battery, LCD display, reading device, data logger, liquid turbine, user interface unit, reading device, actuator, connection fittings, Valve
·No mechanical movable parts, Impurities in water can’t be affected, long service life and high accuracy
·Wide measurement range. Very small flow can be measured.
·Various alarm functions: Battery voltage can alarm, empty tubes or pipes that are not full of water, transducer fault alarm, and more.

·Low-power design and the use of high-energy batteries, can work for 8 years and more.
·The communication interface is Lora or Rs485, which can achieve remote real-time monitoring and management on the LAN.
·Threaded connection digital water meter, used in industrial pipelines, suitable for high-pressure environment, can choose whether to install pulse output
·With remote transmission system software to support reading and monitoring
·Provide a complete software metering and charging solution
·Automatic leak measurement

work process
1. The ultrasonic water meter collects the flow in the pipeline, and the pressure data is uploaded to the cloud service platform through RTU.
2. Sudden change of alarm of pressure and flow.

Software advantages
1. High-range ratio ultrasonic water meter.accurate measurement.
2. Fast feedback and accurate positioning of emergency information.

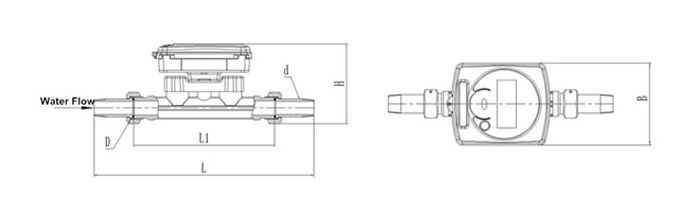

Outline dimensional drawing

Outline dimension

Technical parameter
