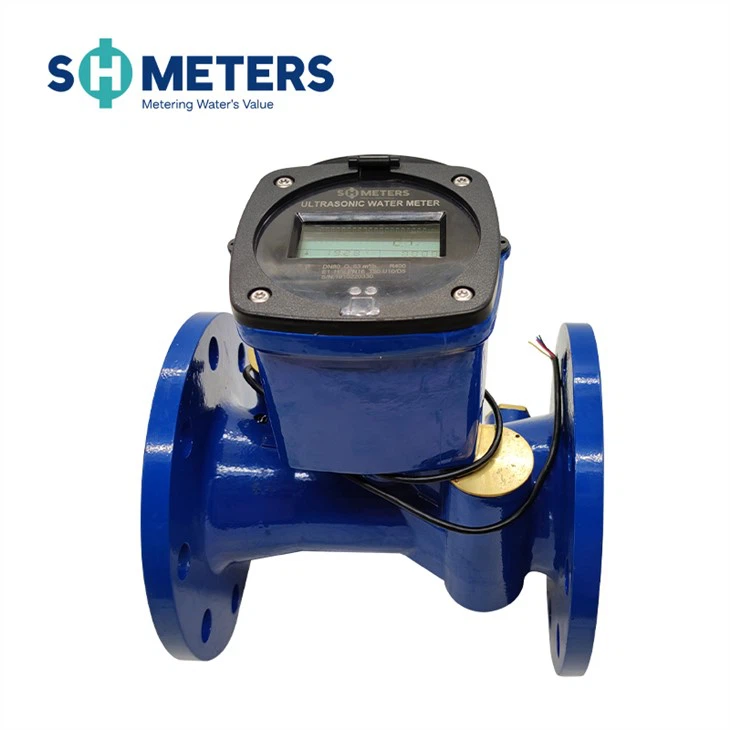

Ultrasonic AMI water meter can solve the problem of pipeline leakage. It is understood that water leakage in the water supply network not only wastes precious water resources, but also causes huge losses to the water company.
In fact, the ultrasonic water meter can calculate the users of the "Water Law", and the relevant management department has an abnormality in the "User Law". It is necessary to integrate the system and deal with the abnormal parts of the original and water supply management department in time to find the leakage point in time according to the system background. , And deal with it in time, indirectly reducing the leakage rate of the club’s official website.
S.H.Meters is committed to providing AMI systems for water meters, especially AMI ultrasonic water meter systems. Help more public utilities and government departments to reduce costs, improve efficiency, integrate services, and create flexible data collection infrastructure to meet more future needs
|
Nominal Diameter(mm) |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
|
Length L(mm) |
200 |
200 |
225 |
250 |
250 |
300 |
350 |
450 |
500 |
|
Width B(mm) |
170 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
Hight H(mm) |
215 |
220 |
235 |
255 |
285 |
335 |
405 |
470 |
525 |
Technical Parameters
Maximum working pressure: 1.6MPa
Water temperature range: 0-50 degrees Celsius
Implementation standard: ISO 4064
Structural form: One-piece
Battery parameters: Built-in lithium battery, 10 years working life
Protection class: IP68
Working environment temperature: - 5℃~ +55 ℃
Screen display: can display 12-digit cumulative quantity (decimal point can be adjusted); four-digit instantaneous flow
Water volume display mode a. Net cumulative volume (NET)
b. Forward water volume (FWD)
c. Alternate display of forward water volume and reverse water volume (FWD/BCK)
Signal output Pulse output (open drain): Modbus RTU/RS485, M-Bus
Connection method Flange connection: DN50mm-DN300mm
Environmental grade Climatic and mechanical environment: grade C, Electromagnetic environment grade: E1
Pressure loss grade： △P16
