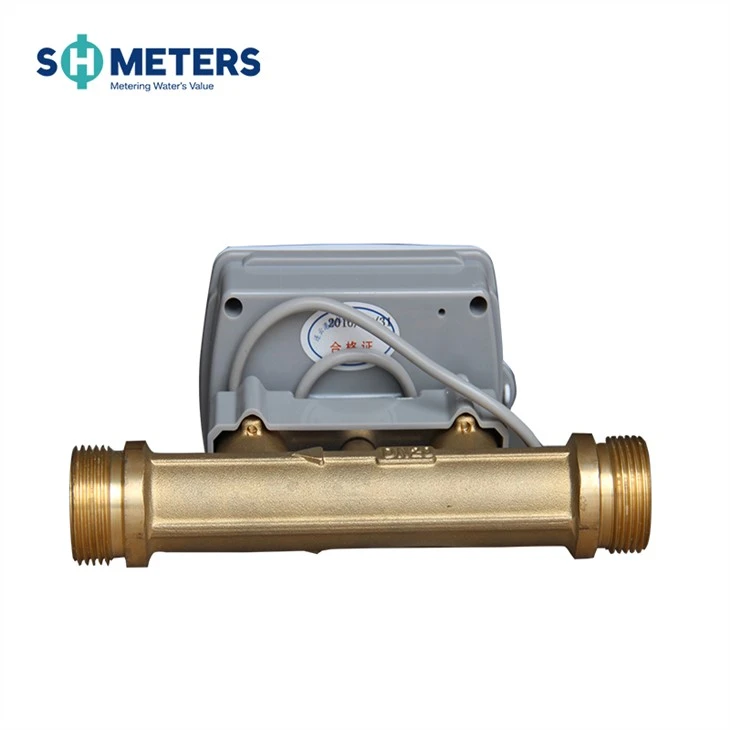

Ultrasonic water meter is a new type of water meter that detects the time difference caused by the change of velocity when the ultrasonic beam propagates in the opposite direction of the water, and analyzes and processes the flow rate of water to further calculate the flow of water.
Advantages
1. It can display accumulated flow rate, instantaneous flow rate, water temperature, pipeline pressure, and other data. It can be used in pipeline leakage systems.
2. Wide measurement range. Very small flow can be measured.
3. Low-power design and the use of high-energy batteries, can work for 6 years or more.
4. The communication interface is Lora or Rs485, which can achieve remote real-time monitoring and management on the LAN.
Accurate and measurement range
Class 2
DN15-DN40:R200, R250
DN50-DN300:3 options:R200, R250, R400
Installation conditions
1) The intake and outlet of the water meter are straight pipes of sufficient length. The Common requirement is U10 D5
2). Water can not contain too many impurities, which will affect the accuracy of water meter measurement.
Nominal Diameter(mm) | DN15 | DN20 | DN25 | DN32 | DN40 |
Length L(mm) | 165 | 195 | 225 | 180 | 200 |
Length L1(mm) | 260 | 300 | 346 | 305 | 330 |
Width B(mm) | 95 | 95 | 95 | 95 | 95 |
Hight H(mm) | 86 | 86 | 89 | 100 | 120 |
