Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn25 brass material ic card prepaid water meters in China. If you're going to wholesale high quality dn25 brass material ic card prepaid water meters, welcome to get pricelist and quotation from our factory.

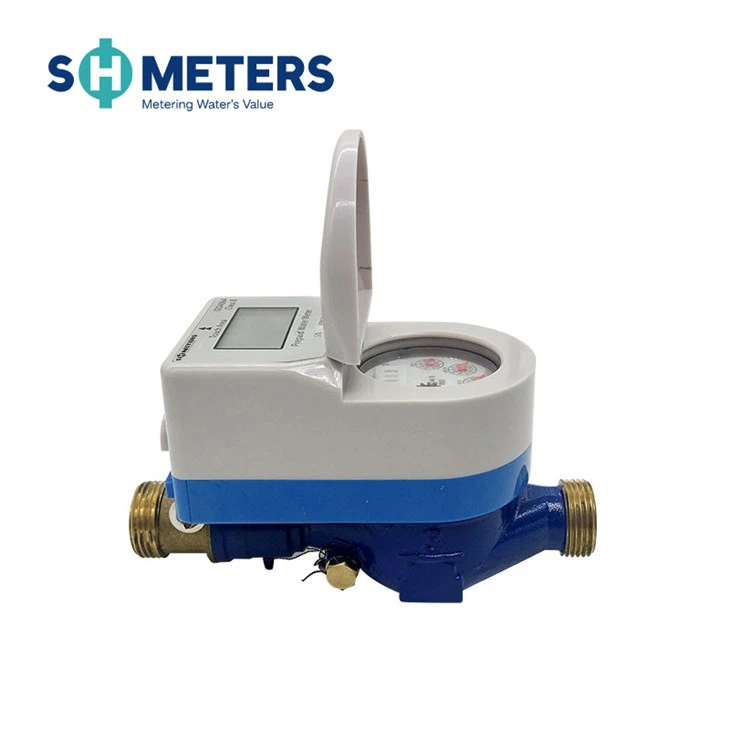

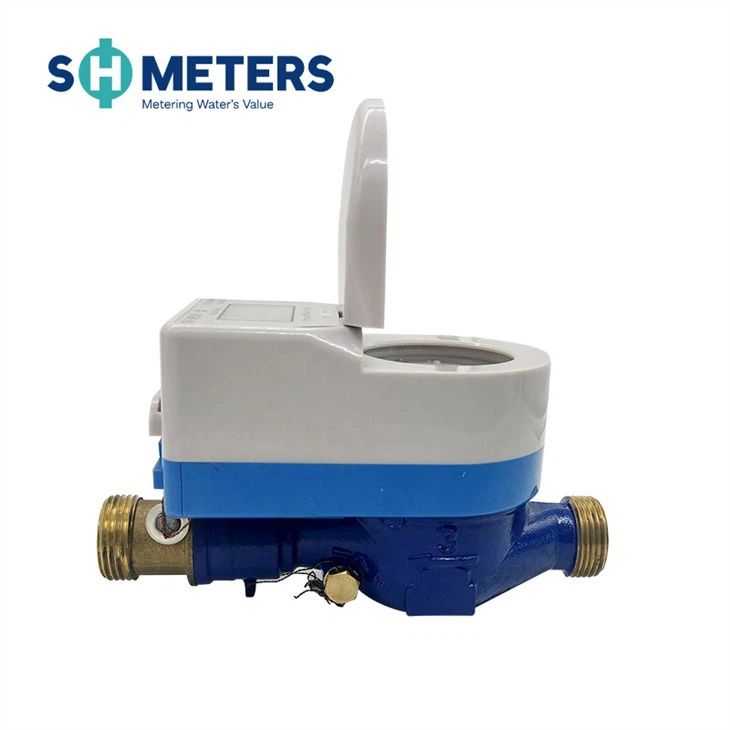

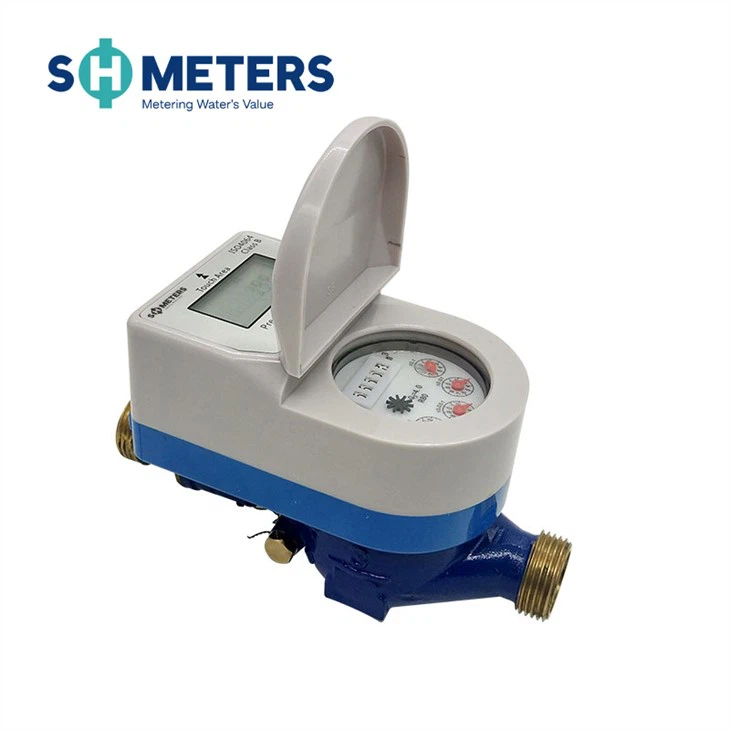

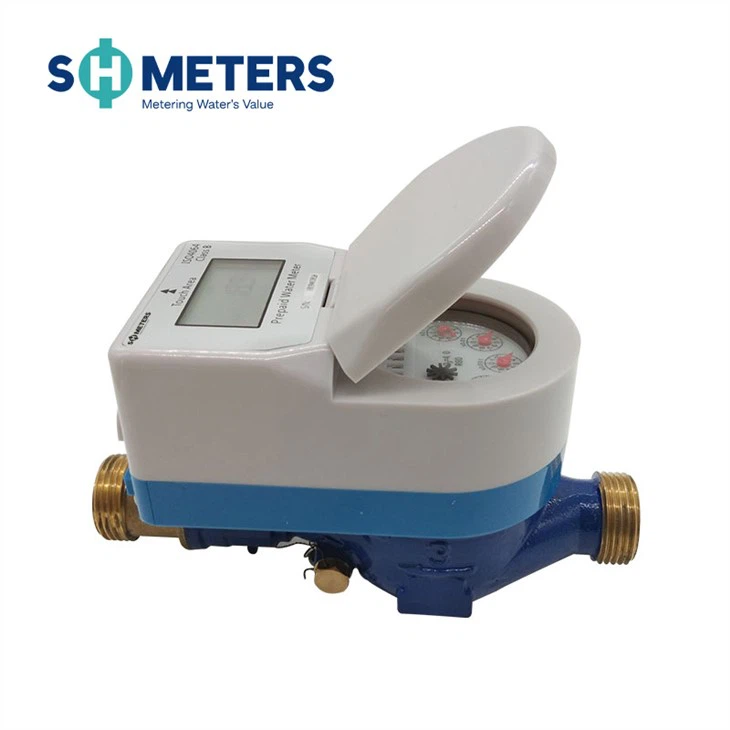

prepaid water meter main picture

PREPAID SYSTEM INTRODUCTION

Overviews

The IC Card series water meter is a kind of prepaid and smart water meter. It’s designed and manufactured by our company and famous design companies both domestic and aboard according to the international standard.

Advantage of the System

·OEM, language display and currency unit display can be customized, and company name can be added to the software.
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.

Brief Introduction

The prepaid water meter have mechanical and electronic readings. It is used to control users overspend by prepaying with an IC card. Pay in advance and then use water get rid of the inconvenience of on-site meter reading and charging.

Product Features

·Our ic card prepaid water meter has high accuracy
·Type:screw,joint,split
·Material: Brass
·Scenes to be used: garden, housing,commercial, general household, residential building,apartment,municipality, household, potable
·Waterproof level:IP68
·Technical data conform to international standard ISO 4064.
·Accuracy:class b
·Fitting:Connctor,PCB,Valve control,Reading device,Adapter,Actuator,Battery operated,Pipe fitting,Connector fitting,Coupling,Pointer,Components,Counter,Rgister
·Communication:IC card reading,Private protocol

Features of IC Card Water Meter

1. One table, one card function: Insert a newly issued user card into a new table, and the table will automatically recognize and save the unique code in the card. The code will be automatically recognized when the card is inserted next time, that is, the table will automatically match with the card to prevent Illegal card use.

2. Large-screen LCD often displays: water volume data, valve status, and battery status are clear at a glance.

3. Low voltage detection: When the battery voltage is lower than 3.8V, it will close the motor valve and display "undervoltage" and "close valve". New batteries need to be installed before it can be used again.

4. Insufficient water reminder: When the remaining water in the meter is less than 2.0m3, the valve will be automatically closed and the user will be prompted to buy water. After inserting the card, the valve will be opened and the remaining water can be used until it reaches 0, then the valve will be closed.

5. Anti-counterfeiting function: When the card is inserted backwards or a non-system card is inserted, "card error" will be displayed.

Main Technical Data

(Ⅰ) Technical Specifications

Item	Unit	Details
Nominal diameter	mm	15	20	25
Q3/Q1	R80/R100
Overload flow(Q4)	m³/h	3.125	5	7.875
Nominal flow(Q3)	m³/h	2.5	4	6.3
Transitional flow(Q2)	m³/h	0.05	0.08	0.13
Minimum flow(Q1)	m³/h	0.031	0.05	0.08
Accuracy class	Class 2
Maximum indication	m³	99999
Temperature class	T30,T90
Pressure class	MAP 10/MAP16
Pressure loss class	ΔP63
Flow prefile sensitivity class	U10/D5
environmental class	Class B
Electromagnetic environment class	E1
Static current	uA	<10

(Ⅱ) Relative Error

·Maximum permissible error between Q1 and Q2(excluded) is ±5% in flow low area.
·When the water temperature is not higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±2% in flow high area.
·When the water temperature is higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±3% in flow high area.

(Ⅲ) Working Temperature: cold water (0.1~30)℃
(Ⅳ) Operating Ambient temperature: (5~55)℃
(Ⅴ) Storage Environmental temperature: (-5~55)℃

The advantages of IC card water meters are:

Advantage 1: Reduce the labor intensity of staff, eliminate (reduce) cash transactions, reduce human errors and prevent corruption cases.

Advantage 2: Establish the computer information management network system of the water company to realize the scientific management of the water supply, water users and employees of the water company. the

Advantage 3: Establish a sound financial accounting management, make the daily work and management of the water company streamlined, automated, and scientific, and improve the service quality and competitiveness of the water company.

Advantage 4: Provide convenient statistical query function, facilitate comprehensive and timely understanding of the situation, and provide basis for decision-making. The ic card water meter system is composed of ic card water meter, general ic card and computer charge management network, the core is ic card water meter.

Advantage 5: Smart water meters replace traditional water meters, use IC cards to realize prepayment, realize the ideal management mode of "paying first and then using water", and card settlement, fundamentally eliminate the phenomenon of underpayment, late payment, and missed payment of water fees, so that The water company should pay the fee in time.

Fault Handling Instructions

Item	Fault display	Fault explanation	Elimination methods
1	Under voltage	Low battery	Contact the manufacturer
2	Flow	Flow sensor signal failure
3	Valve open/close	Valve sticking rusting or scaling
4	Can not read card	Write card erroror take the wrong card	Go to water supply department to test the card

Outline Dimensional Drawing

Nominal Diameter	Length L	Length L1	Width B	Height H1	Height H2	Connecting Thread
mm						d	D
15	258	165	90	112	184	R1/2	G3/4B
20	299	195	90	112	184	R3/4	G1B
25	345	225	90	114	186	R1	G1 1/4B
