Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of brass water meter body prepaid water meter ic card smart digital prepaid water meter in China. If you're going to wholesale high quality brass water meter body prepaid water meter ic card smart digital prepaid water meter, welcome to get pricelist and quotation from our factory.

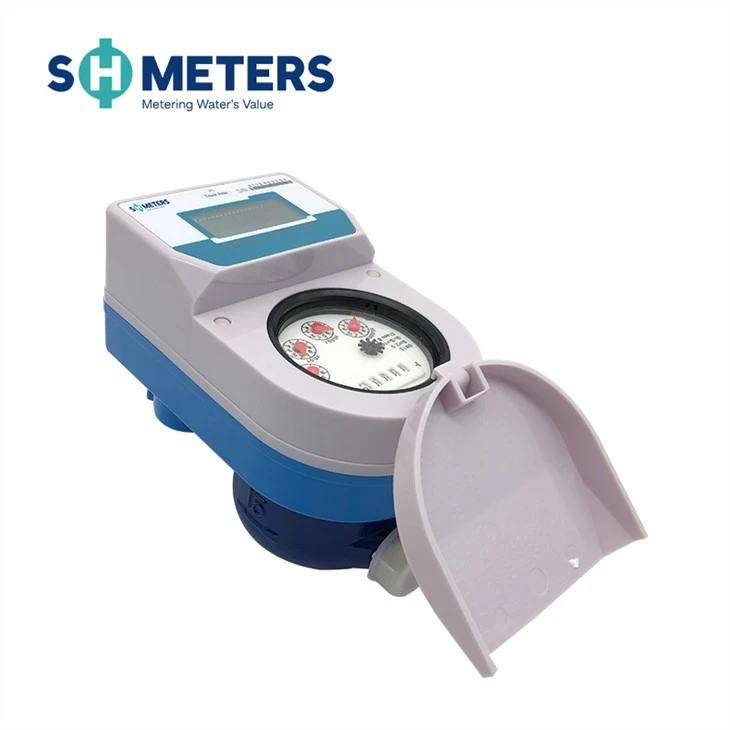

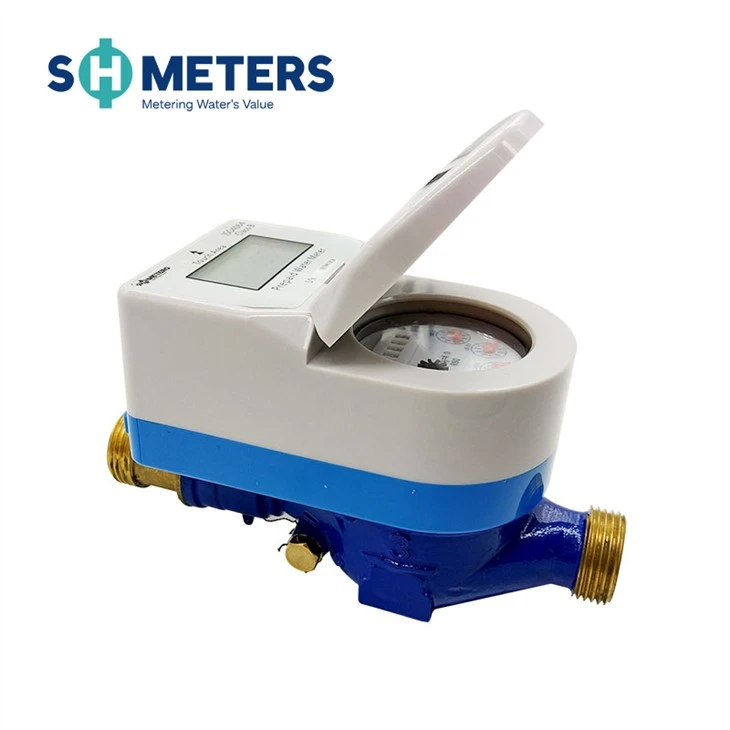

prepaid water meter main picture

PREPAID SYSTEM INTRODUCTION

Overviews

The IC Card series water meter is a kind of prepaid and smart water meter. It’s designed and manufactured by our company and famous design companies both domestic and aboard according to the international standard.

Advantage of the System

·OEM, language display and currency unit display can be customized, and company name can be added to the software.
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.

Brief Introduction

The prepaid water meter have mechanical and electronic readings. It is used to control users overspend by prepaying with an IC card. Pay in advance and then use water get rid of the inconvenience of on-site meter reading and charging.

Product Features

Product Name	Prepaid Water Meter
Sizes	15~50mm
Material	Brass
Temperature	Cold/Hot water
Type	screw, joint, split
Connection method	BSP / NPT
Range ratio	R=80 ; class b;
Register sealed type	Dry type
Application	Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Certificate	ISO4064
Sample Avaiable	Yes
Temperature class	T30,T90
Pressure Class	MAP10/MAP16
Scenes to be used	Garden, housing, commercial, general household, residential building, apartment, municipality, household, potable
Warranty	ONE YEAR
Waterproof level	IP68
Water temperature	0.1℃～40℃ ( 0.1℃～90℃ for hot water meter).
Customized support	YES
Waterproof level	IP68
Payment	TT, L/C, Paypal, Western Union, Credit Card,Cash and others
Delivery Time	Usually 15~30 days after confirming order
Loading Port	Shanghai Port, Qingdao Port
Package	Inner boxes, cartons, pallets
Place of Origin	China
Unit	CBM, Gallon
Fitting	Connctor, PCB, Valve control, Reading device, Adapter, Actuator, Battery operated, Pipe fitting, Connector fitting, Coupling, Pointer, Components, Counter, Rgister
Communication	IC card reading, Private protocol

Functional characteristics of prepaid IC card water meter

1. Prepaid function: Users purchase water first and then use it, and the valve will be closed and water will be stopped if the fee is not paid.

2. One-card function: one card realizes the control of electricity meter and water meter.

3. Synchronous display function: LCD screen and base meter display water consumption synchronously. Even if the circuit fails and the LCD cannot display, it can also refer to the mechanical display.

4. Prompt and alarm function: battery undervoltage, insufficient water available, strong magnetic interference and other fault information will be prompted and alarmed on the LCD.

5. Data upload function: Every time a user purchases water, the relevant information will be brought back to the management system, so that the management can understand the user's water consumption and the status of the meter.

6. Valve self-maintenance function: the valve rotates at regular intervals, and the valve scale is removed in time to ensure the flexibility of the valve.

7. Anti-hoarding water function: The lower limit of recharge can be flexibly set through the software to prevent users from hoarding water.

8. Anti-drip function: cooperate with the anti-drip base meter to realize the anti-drip function.

9. Blacklist query: Users who do not come to buy water for a long time can be blacklisted to monitor the water consumption of users.

10. Easy to replace the battery: there is a cover specially designed to replace the battery on the bottom of the water meter. It is very convenient to replace the battery. Batch replacement of the battery is no longer a problem for the water management department.

11. "Water soaking" function: The product adopts the overall sealing and waterproof process in the process, so it can work in a humid environment or in the case of short-term soaking in water.

Main Technical Data

(Ⅰ) Technical Specifications

Item	Unit	Details
Nominal diameter	mm	15	20	25
Q3/Q1	R80/R100
Overload flow(Q4)	m³/h	3.125	5	7.875
Nominal flow(Q3)	m³/h	2.5	4	6.3
Transitional flow(Q2)	m³/h	0.05	0.08	0.13
Minimum flow(Q1)	m³/h	0.031	0.05	0.08
Accuracy class	Class 2
Maximum indication	m³	99999
Temperature class	T30,T90
Pressure class	MAP 10/MAP16
Pressure loss class	ΔP63
Flow prefile sensitivity class	U10/D5
environmental class	Class B
Electromagnetic environment class	E1
Static current	uA	<10

(Ⅱ) Relative Error

·Maximum permissible error between Q1 and Q2(excluded) is ±5% in flow low area.
·When the water temperature is not higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±2% in flow high area.
·When the water temperature is higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±3% in flow high area.

(Ⅲ) Working Temperature: cold water (0.1~30)℃
(Ⅳ) Operating Ambient temperature: (5~55)℃
(Ⅴ) Storage Environmental temperature: (-5~55)℃

Fault Handling Instructions

Item	Fault display	Fault explanation	Elimination methods
1	Under voltage	Low battery	Contact the manufacturer
2	Flow	Flow sensor signal failure
3	Valve open/close	Valve sticking rusting or scaling
4	Can not read card	Write card erroror take the wrong card	Go to water supply department to test the card

Outline Dimensional Drawing

Nominal Diameter	Length L	Length L1	Width B	Height H1	Height H2	Connecting Thread
mm						d	D
15	258	165	90	112	184	R1/2	G3/4B
20	299	195	90	112	184	R3/4	G1B
25	345	225	90	114	186	R1	G1 1/4B
