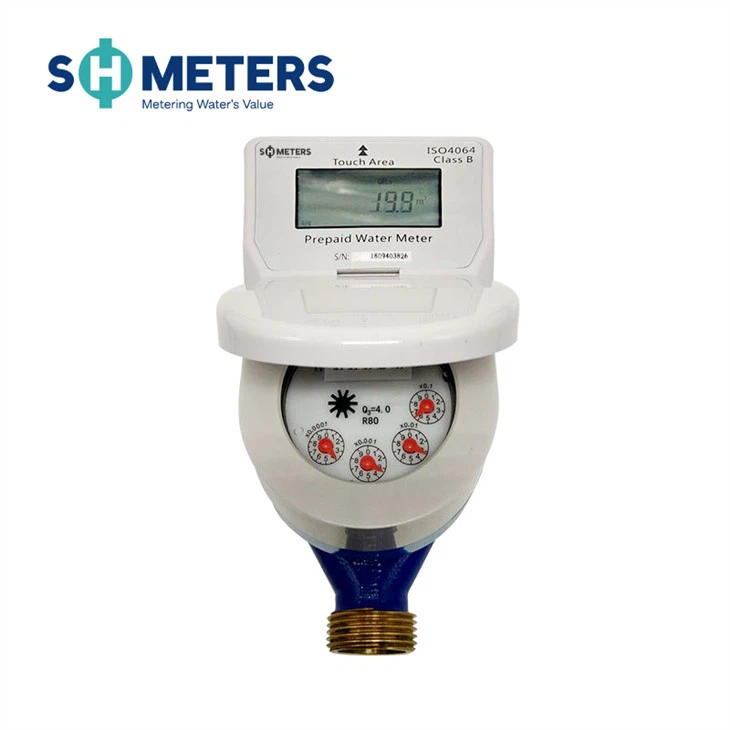

Ic card prepaid water meter system simply introduction .
size: DN15-25( integrate type )
operate: charge - card reader - cloud platform - card reader - card - water meter
(1）Managers set user account information in software
(2) Users recharge IC cards at the water charge office.
(3) Users use IC cards read by water meters to recharge and pay fees for water meters.
(4) When the balance is 0, the water meter automatically closes the valve and cuts off the water.
(5) After recharging, users use their IC cards read by water meter again, valve will open and restore the water supply.
Applicable Bulidings: apartment, business district, community, village, hotel, rental house and school
The main technical parameters of the ICk card prepaid water meter are:
(1) Water temperature: This parameter specifies the maximum temperature used by the water meter. Users should choose appropriate models and specifications to meet their own needs, otherwise it will cause the water meter to measure the total water flow inaccurately.
(2) Working pressure: It specifies the maximum pressure of the metered water body. Water pressure exceeding this limit may damage or leak the water meter.
(3) Flow coefficient: It includes nominal diameter, maximum flow, nominal flow, boundary flow, minimum flow, and starting flow. Users can choose the nominal diameter and nominal flow according to practical needs. The starting flow reflects the sensitivity of the water meter.
(4) Indication error.
(5) External dimensions and weight: The external dimensions of the water meter include various parameters that need to be understood during installation, such as length, width, height, and connecting threads. In addition, the size and weight are related to packaging and transportation.
|
Nominal Diameter |
Length L |
Length L1 |
Width B |
Height H1 |
Height H2 |
Connecting Thread |
|
|
mm |
d |
D |
|||||
|
15 |
258 |
165 |
90 |
112 |
184 |
R1/2 |
G3/4B |
|
20 |
299 |
195 |
90 |
112 |
184 |
R3/4 |
G1B |
|
25 |
345 |
225 |
90 |
114 |
186 |
R1 |
G1 1/4B |
Technical specifications
|
Item |
Unit |
Details |
||
|
Nominal diameter |
mm |
15 |
20 |
25 |
|
Q3/Q1 |
R80/R100 |
|||
|
Overload flow(Q4) |
m³/h |
3.125 |
5 |
7.875 |
|
Nominal flow(Q3) |
m³/h |
2.5 |
4 |
6.3 |
|
Transitional flow(Q2) |
m³/h |
0.05 |
0.08 |
0.13 |
|
Minimum flow(Q1) |
m³/h |
0.031 |
0.05 |
0.08 |
|
Accuracy class |
Class 2 |
|||
|
Maximum indication |
m³ |
99999 |
||
|
Temperature class |
T30,T90 |
|||
|
Pressure class |
MAP 10/MAP16 |
|||
|
Pressure loss class |
ΔP63 |
|||
|
Flow prefile sensitivity class |
U10/D5 |
|||
|
environmental class |
Class B |
|||
|
Electromagnetic environment class |
E1 |
|||
|
Static current |
uA |
<10 |
||
