Removable Woltman water meter designed for reliable bulk water measurement in industrial, municipal, and irrigation applications.
Products Description

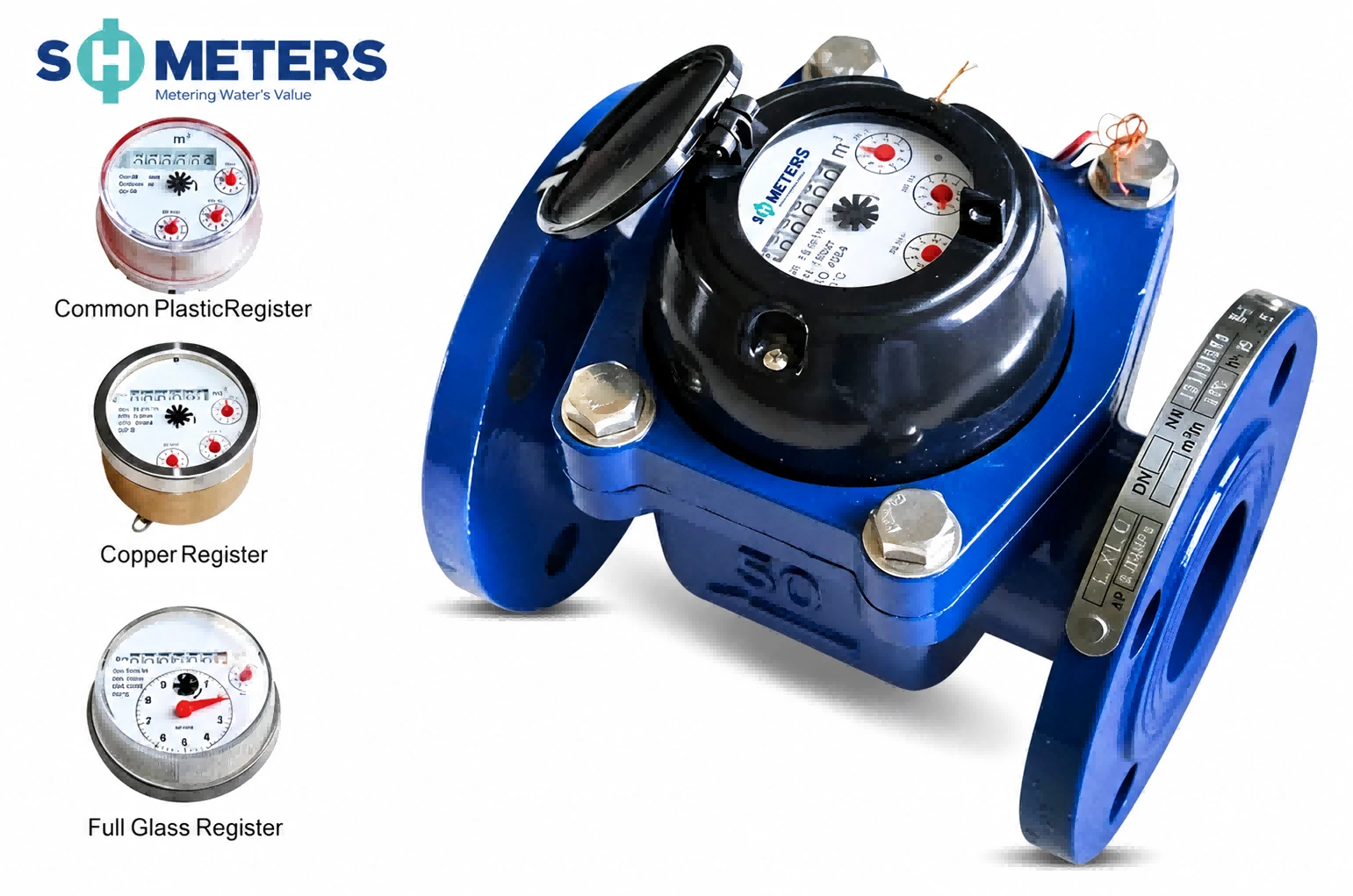

The LXLC Woltman water meter is a removable mechanical water meter designed for large-volume water measurement. It is suitable for industrial facilities, municipal water networks, irrigation systems, and other bulk water measurement applications.
Its removable measuring mechanism allows convenient inspection and maintenance, while the robust construction provides reliable performance for long-term operation.
Key Features
Advantages
LXLC Woltman Water Meter - Reliable Measurement for Bulk Water Applications
Removable Measuring Mechanism
The removable mechanism makes inspection, maintenance, and replacement more convenient, helping reduce maintenance time and operating costs.
High Flow Capacity
Designed for large-volume water measurement with stable performance and low pressure loss across a wide range of flow conditions.
Wide Application Range
Suitable for cold and hot water measurement across a variety of industrial and water supply applications.
Durable Construction
The robust meter construction is suitable for demanding industrial and outdoor water measurement environments.
Clear Register
The mechanical register provides clear and reliable water consumption readings for convenient meter reading and management.
Optional Pulse Output
Pulse output is available for connection with external data collection, monitoring, and water management systems.

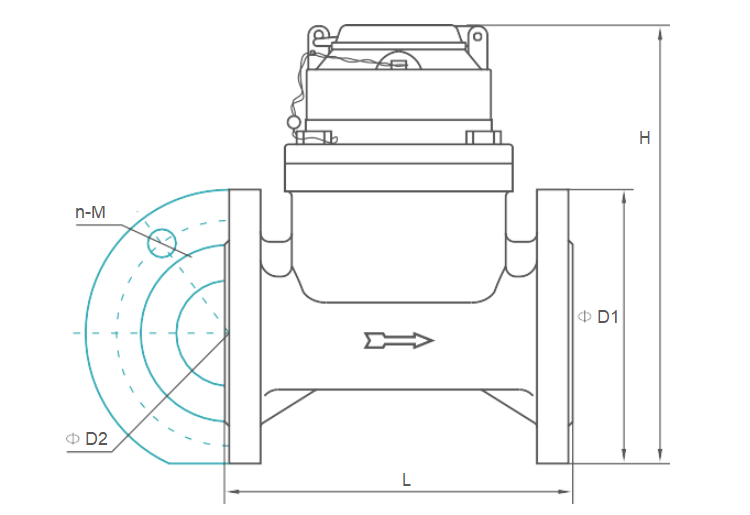

Outline Dimensions Drawing
| Type | Size | Length | Height | Connecting Flange | ||
| mm | D1 Outside Diameter | D2 Bolt Circle Diameter | Connecting Bolts(n-M) | |||
| LXLC-50 | 50 | 200 | 214 | 165 | 125 | 4-M16 |
| LXLC-65 | 65 | 200 | 224 | 185 | 145 | 4-M16 |
| LXLC-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 |
| LXLC-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 |
| LXLC-125 | 125 | 250 | 299 | 250 | 210 | 8-M16 |
| LXLC-150 | 150 | 300 | 319 | 285 | 240 | 8-M20 |
| LXLC-200 | 200 | 350 | 346 | 340 | 295 | 8-M20(1.0DE) |
| 12-M20(1.6MPa) | ||||||
| LXLC-250 | 250 | 450 | 434 | 395(1.0MPa) | 350(1.0MPa) | 12-M20(1.0MPa) |
| 405(1.6MPa) | 355(1.6MPa) | 12-M24(1.6MPa) | ||||
| LXLC-300 | 300 | 500 | 459 | 445(1.0MPa) | 400(1.0MPa) | 12-M20(1.0MPa) |
| 460(1.6MPa) | 410(1.6MPa) | 12-M24(1.6MPa) | ||||
Note: The flange dimension conforms to the ISO 7005-1:1988 standard. The flange standard can be customized. Orders for products with special requirements are also accepted

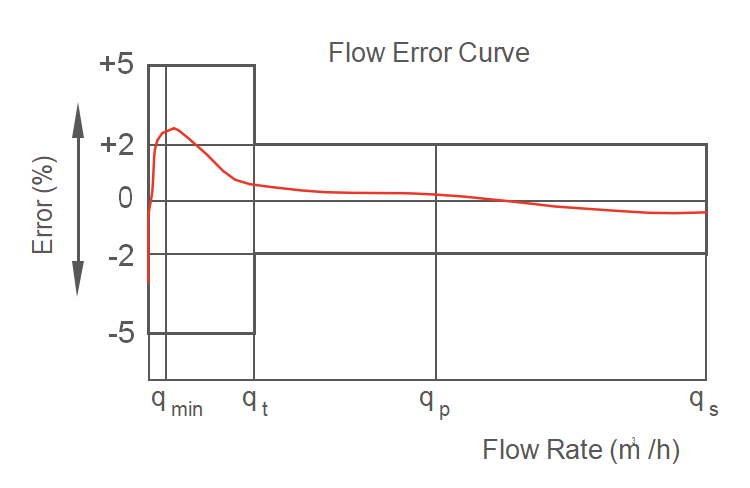

Maximum Permissible Errors
In the lower zone, from qmin inclusive up to but excluding qt, it is ±5%
In the upper zone, from qt inclusive up to and including qs is ±2%(±3% for hot water meter)
Technical Specifications
| Category | Parameter | Specification |
| Basic Specifications | Product Type | LXLC Woltman Water Meter |
| Size | DN50–DN300 | |
| Accuracy | R = Class B | |
| Water Type | Cold / Hot Water | |
| Body Material | Cast Iron / Ductile Iron / Stainless Steel / GG25 / GG50 / SS304 / SS316 | |
| Optional Features | Register | Plastic / Copper / Full Glass |
| Reed Switch | Optional | |
| Flange Standard | Optional | |
| Register Rotation | 360° Rotatable | |
| Body & Cover Color | Customizable | |
| Pulse Output | Available | |
| Working Conditions | Water Temperature | 0.1°C–50°C |
| Hot Water Temperature | 0.1°C–90°C | |
| Working Pressure | PN10 / PN16 / PN25 |

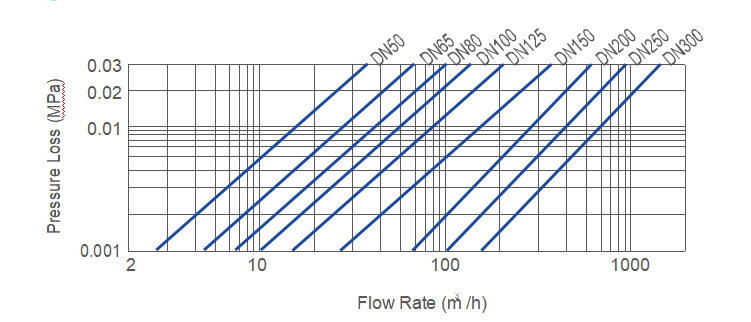

Pressure Loss Curve
Pulse Position
| Size | Pulse Position |
| DN15-65 | 10/100/1000L/Pulse |
| DN80-200 | 100/1000L/Pulse |
| DN250-300 | 1000L/Pulse |
Exploded view

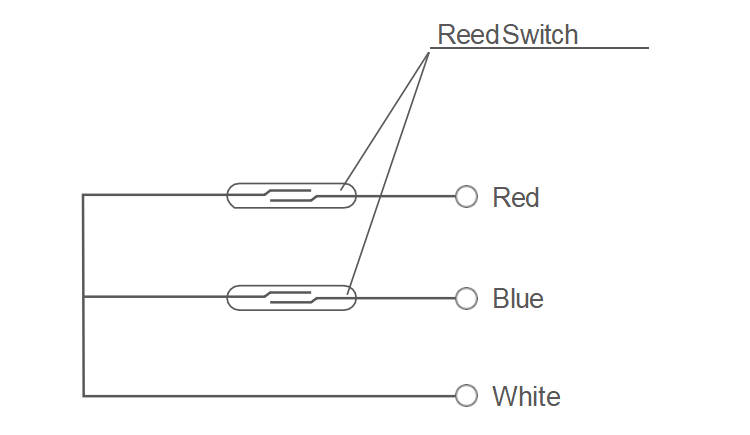

The Operation Description Of The Two Reed Switches System
The LXLC Woltman Water Meter uses a two-reed-switch system. The two reed switches are operated ON or OFF, respectively, by the magnet fitted to the pointer or gear during operation, but they are never switched ON at the same time under normal conditions.
The two reed switches generate two ON and two OFF signals during one complete revolution of the pointer or gear, which corresponds to one signal output. This design helps prevent signal loss or overcounting caused by switch bouncing or pipe vibration, ensuring reliable and stable pulse signal output.
