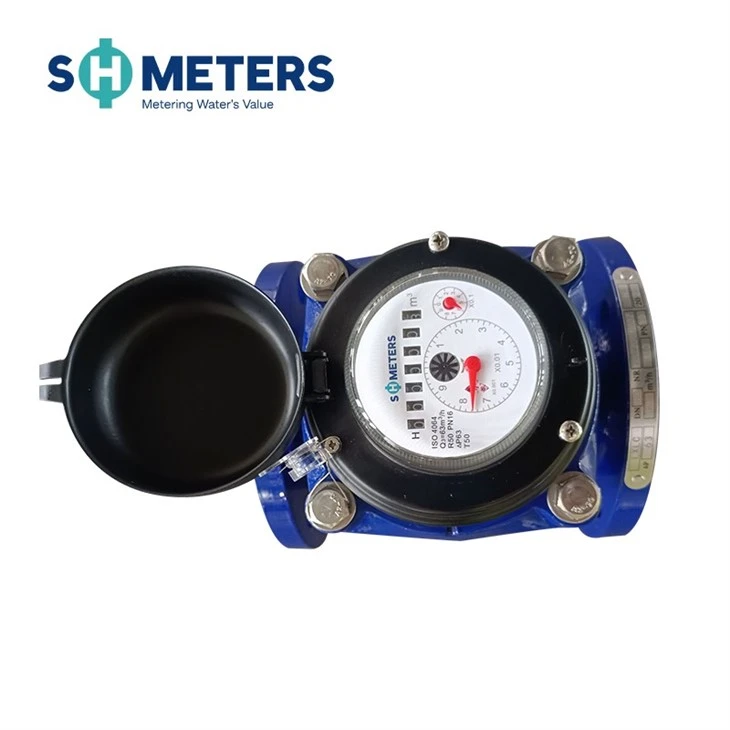

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn40-dn200 woltman cold water meter removable element in China. If you're going to wholesale high quality dn40-dn200 woltman cold water meter removable element, welcome to get pricelist and quotation from our factory.
Woltman water meters, also known as large-bore water meters, are designed to measure the flow of water in pipelines with significant caliber or pipe size. These meters are commonly used in industrial, commercial, and municipal applications where large volumes of water need to be accurately measured.
Woltman Water Meters Feature
◆ It has the characteristics of large flow, high precision and high-cost performance, and can be applied to pipe networks with poor water quality.
◆ The sending water meter can choose Hall element or dry reed switch pulse output mode.
◆ Non-magnetic steel sheets and remote communication modules can be installed according to requirements to realize remote meter readings.
◆ The detachable water meter counter is packaged with a special liquid, and the reading of the dry water meter is clear.
|
Size |
L Length |
H Height |
Connecting Flange |
||
|
D1 Outside Diameter |
D2 Bolt Circle Diameter |
Connecting Bolts (n-M) |
|||
|
50 |
200 |
214 |
165 |
125 |
4-M16 |
|
65 |
200 |
224 |
185 |
145 |
4-M16 |
|
80 |
225 |
279 |
200 |
160 |
8-M16 |
|
100 |
250 |
289 |
220 |
180 |
8-M16 |
|
125 |
250 |
299 |
250 |
210 |
8-M16 |
|
150 |
300 |
319 |
285 |
240 |
8-M20 |
|
200 |
350 |
346 |
340 |
295 |
8-M20(1.0DE ) |
|
12-M20(1.6MPa) |
|||||
Quality Commitment
The quality guarantee period of this product is one year. If the installation is reasonable, the use is correct, and the internal parts are damaged or malfunctioned due to the manufacturing quality (except for frost damage), the company is responsible for repairing and replacing under the condition that the seal is intact.
