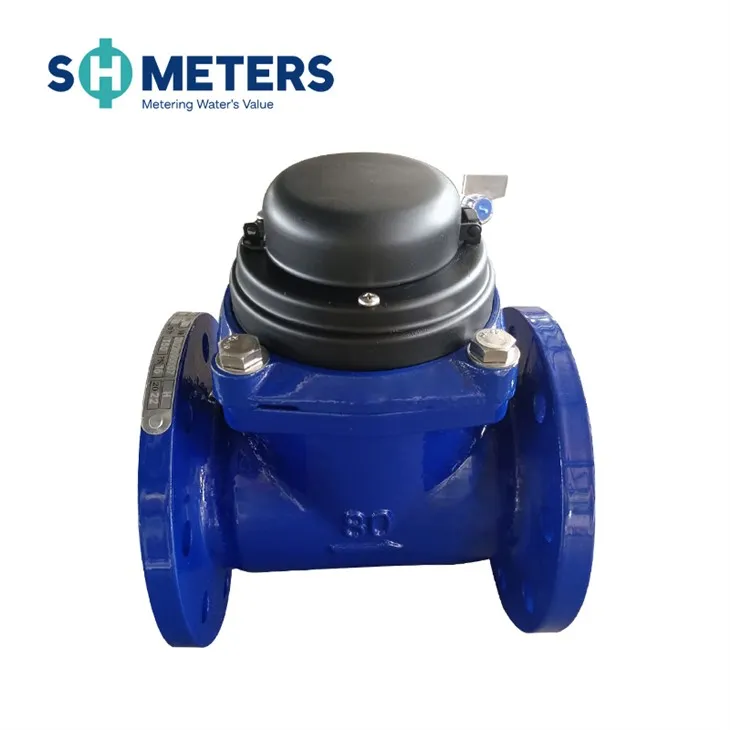

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of woltman water meter for agriculture irrigation water meter 2" to 12" in China. If you're going to wholesale high quality woltman water meter for agriculture irrigation water meter 2" to 12", welcome to get pricelist and quotation from our factory.

Woltman water meters are designed to measure the flow of water in pipelines with significant diameter sizes, typically ranging from 6 inches (150 mm) and larger. These meters are commonly used in industrial, commercial, and municipal applications where high flow rates and large volumes of water need to be accurately measured.

Key Points
1. Size Range: Large diameter water meters are available in a wide range of sizes to accommodate various pipe diameters. They can be found in sizes such as 8 inches (200 mm), 10 inches (250 mm), 12 inches (300 mm), and even larger sizes depending on specific requirements.
2. Installation: Installing large diameter water meters requires careful consideration of the pipeline infrastructure. These meters are typically installed in-line within the pipe, and the installation process may involve the use of flanges or couplings to connect the meter to the pipe. Installation should be performed by professionals who are familiar with large diameter meter installations.
3. Maintenance: Large diameter water meters require regular maintenance to ensure accurate measurements. This may include periodic cleaning, calibration, and inspection of the meter components. Maintenance requirements can vary depending on the specific meter model and the manufacturer's recommendations.
4. Integration and Data Management: Large diameter water meters can often be integrated into water management systems or SCADA (Supervisory Control and Data Acquisition) systems. This enables remote monitoring, data logging, and control of water flow in real-time.

Size	L Length	H Height	Connecting Flange
Size	L Length	H Height	D1 Outside Diameter	D2 Bolt Circle Diameter
50	200	214	165	125
65	200	224	185	145
80	225	279	200	160
100	250	289	220	180
125	250	299	250	210
150	300	319	285	240
200	350	346	340	295
200	350	346	340	295
250	450	434	395	350
250	450	434	405	355
300	500	459	445	400
300	500	459	460	410

Characteristics

All the materials in contact with water, consciously selected by the known resistance to corrosion;

Iron body;

The ROTATING indicator registers for the most comfortable reading position;

The copper can super dry register with IP68 protection;

The interchangeable, removable measuring mechanism can be easily removed from the body for checking, maintaining, and replacing, no need to dismantle the body from the pipe;

The paddle wheel design resists blockage and damage to the meter from solids in water;

Magnetic transmission, Low-pressure loss;

Suitable for irrigation, agriculture, and wastewater application;
