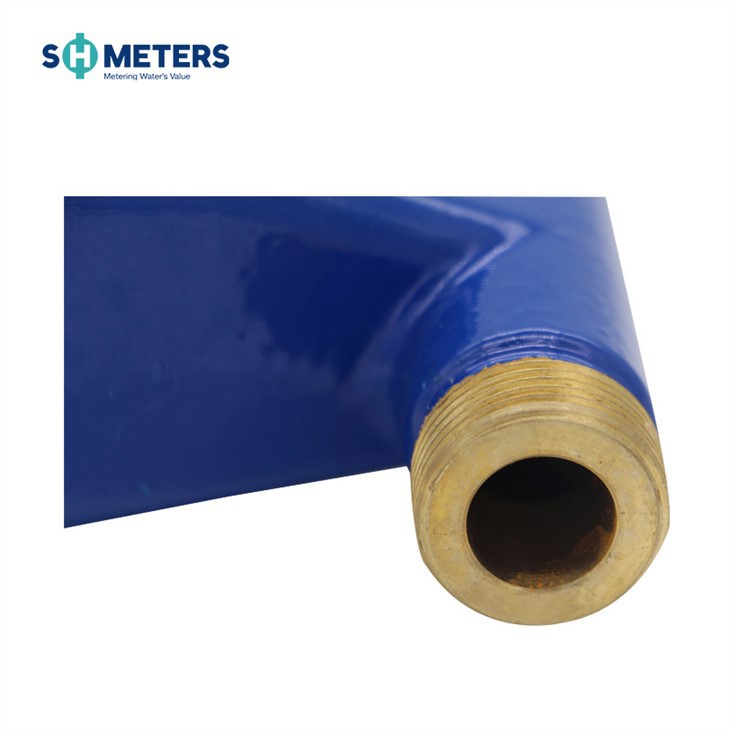

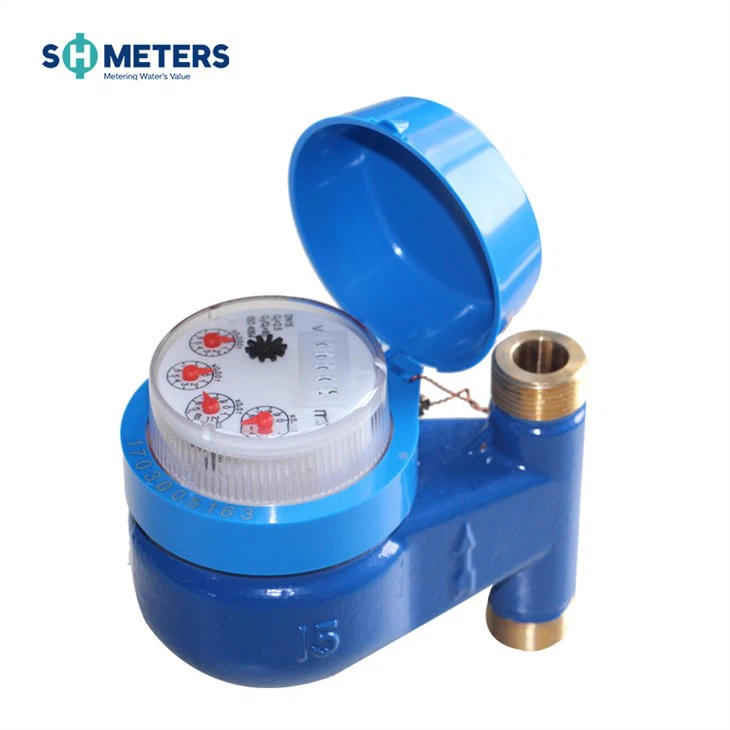

Dn15-dn25 Vertical Type Water Meter Rotary Brass Body Cold Hot Water Meter

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15-dn25 vertical type water meter rotary brass body cold hot water meter in China. If you're going to wholesale high quality dn15-dn25 vertical type water meter rotary brass body cold hot water meter, welcome to get pricelist and quotation from our factory.

Features of Vertical Water Meter

Multi-jet
Dry type / Wet type( for selecting )
Cold water / hot water (for selecting)
Available to install in vertical direction
Measuring accuracy is up to ISO4064 CLASS B
High quality materials ,Steady & reliable characteristic

 Material
  Cover: iron /brass /stainless steel for selecting
  Body: iron /brass for selecting
  Connector: iron /brass for selecting

Working Conditions

. Water temperature: 0.1℃~40 C for cold water meter.

·0.1 C~90 C for hot water meter.
. Water pressure: ≤1.6Mpa (16 bar).

lnstallation Requirements
·The meter should be installed in vertical position with the direction of the flow as indicated by the arrow cast in themeter body with the register face upwards.
·Pipeling must be flushed before installation.
.The meter should be constantly ful of water during operation.
Maximum Permissible Error
ln the lower zone from qmin inclusive up to but excluding qt is ±5%.
ln the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.

Overall Dimension And Weight

Ways to solve the metering deviation of the water meter:
(1) Renovate the household pipe network and strive to improve the water quality of the pipe network;
(2) Strictly check the water meter in strict accordance with the provisions of the national inspection regulations of the water meter, and make the rotation of the expiration;
(3) When the water meter is selected, the rated flow of the water meter should be as close as possible to the actual water flow rate;
(4) During the installation of the water meter, it must be installed in strict accordance with the technical requirements of the water meter. First, there should be a certain straight pipe section before and after the water meter. The length of the straight pipe section before the watch should be no less than 10 times the diameter of the water meter. The surface should be no less than 5 times the diameter of the water meter. Second, the water gauge should be horizontal; the third is the water meter. It is good to install the filter to effectively prevent the water from entering the water meter. FourtH, the valve should be fully opened before the water meter to make the water pressure stable, so as to ensure accurate metering.
