Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of single jet water meter r80/100 sh1110/sh1120 in China. If you're going to wholesale high quality single jet water meter r80/100 sh1110/sh1120, welcome to get pricelist and quotation from our factory.

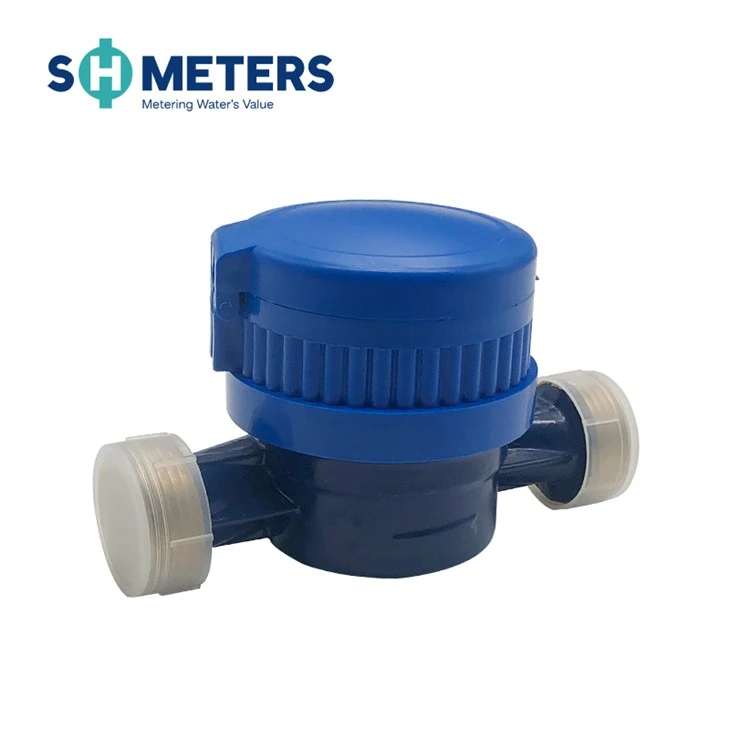

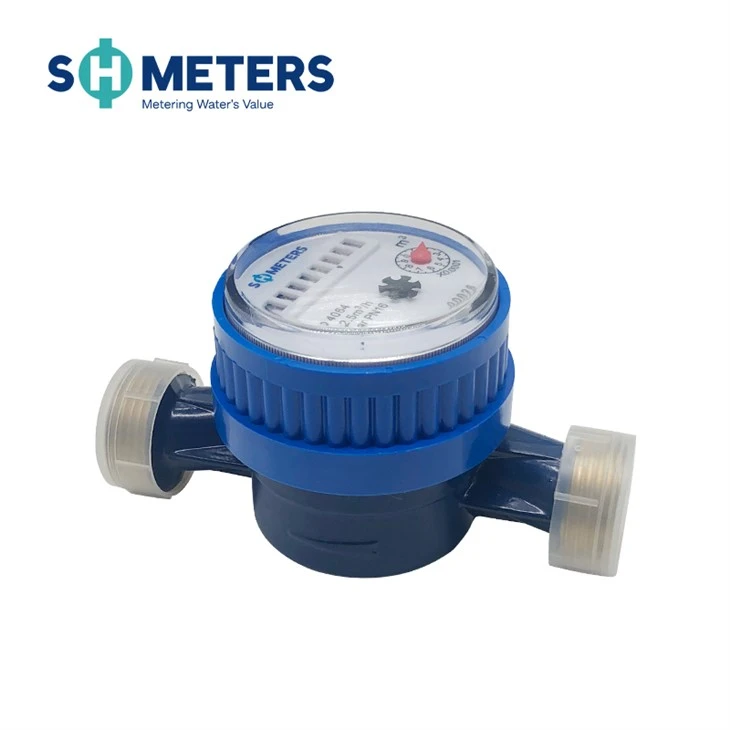

Single jet water meter Description

"Single jet water meter" is a common type of velocity water meter. Its core working principle is to measure water volume by using the water flow velocity to drive an impeller to rotate.

Single jet water meter Features

Single-jet measurement principle: Driven by a single jet stream, ensuring simple structure and stable operation.

Dry-dial design: Ensures long-term clear reading of the single-jet water meter.

Magnetic drive: Effectively resists magnetic interference, ensuring accurate measurement.

High measurement accuracy: Complies with the international standard ISO 4064 for reliable performance.

Various specifications available: Installation lengths can be customized according to user requirements.

Material options: S.H.Meters offers brass or plastic body options to suit different environments.

Compatible with multiple thread types: BSP or NPT threads available to meet regional standards.

Applicable media: Available for both cold and hot water, meeting diverse application needs.

Single jet water meter Outline Dimension Drawing

Nominal Diameter	L Length	B Width	H Height	Connecting Thread D
mm
15	110	67.5	72	G3/4B
20	130	67.5	73.5	G1B

Single jet water meter Parameters

Nominal Diameter (mm)		15	20
Size (inch)		1/2"	3/4"
Q4(l/h)		3125	5000
Q3(l/h)		2500	4000
R=80	Q2 (l/h)	50	80
	Q1 (l/h)	31.25	50
R=100	Q2 (l/h)	40	64
	Q1 (l/h)	25	40
Max. Reading (m3)		99,999	99,999
Min.Reading (Liter)		0.05	0.05
Accuracy Class		Class2
Temperature Class		T50/T90
Maximum Admissible Pressure		PN16
Pressure Loss Classes		0.63bar
Pulse Output Option		Vmax=24V
		Imax=100mA
		Pmax=2W
