Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of single jet water meter r80,100 with brass body in China. If you're going to wholesale high quality single jet water meter r80,100 with brass body, welcome to get pricelist and quotation from our factory.

Products Description

The single-jet water meter measures water consumption by directing the flow of water through a single inlet, which directly impacts the impeller, causing it to rotate and record the water usage.

Products Features

The single water meter has a simple structure: fewer components and low production cost.
It is compact: flexible installation, suitable for environments with limited space.
Initial measurement sensitivity: the impact force of the single flow stream is concentrated, allowing for quick startup at low flow rates.

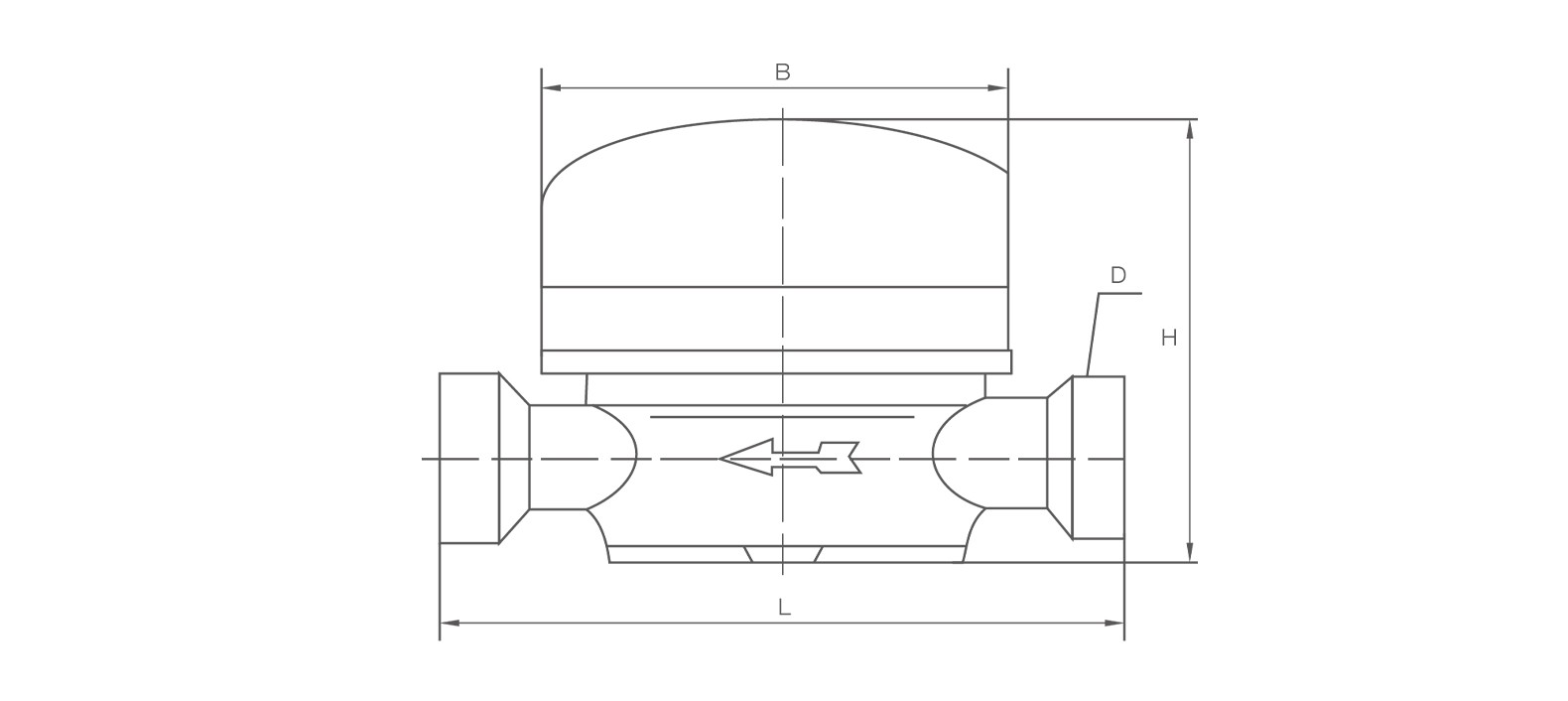

Outline Dimension Drawing

Nominal Diameter	L Length	B Width	H Height	Connecting Thread D
mm
15	110	67.5	72	G3/4B
20	130	67.5	73.5	G1B

Product Parameters

Nominal Diameter (mm)		15	20
Size (inch)		1/2"	3/4"
Q4(l/h)		3125	5000
Q3(l/h)		2500	4000
R=80	Q2 (l/h)	50	80
	Q1 (l/h)	31.25	50
R=100	Q2 (l/h)	40	64
	Q1 (l/h)	25	40
Max. Reading (m3)		99,999	99,999
Min.Reading (Liter)		0.05	0.05
Accuracy Class		Class2
Temperature Class		T50/T90
Maximum Admissible Pressure		PN16
Pressure Loss Classes		0.63bar
Pulse Output Option		Vmax=24V
		Imax=100mA
		Pmax=2W
