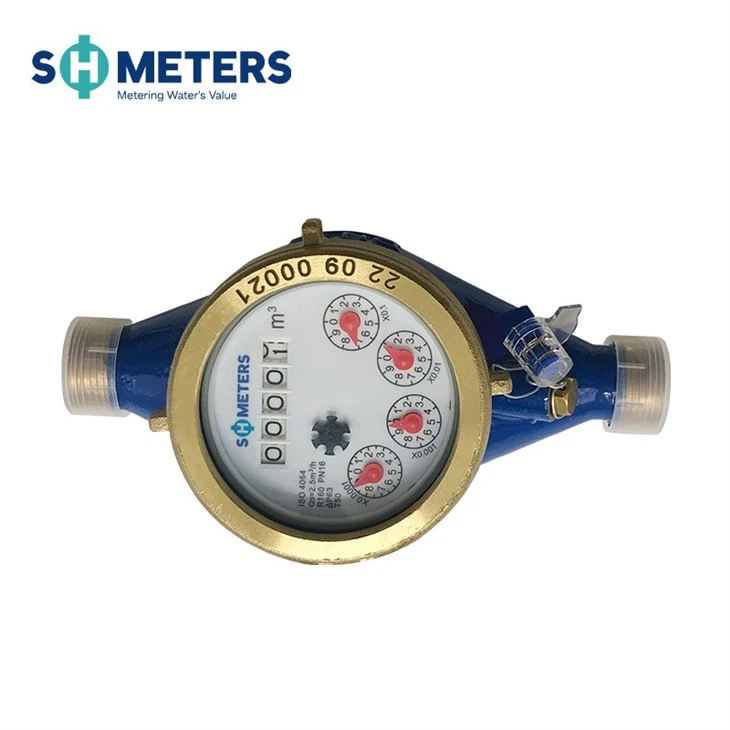

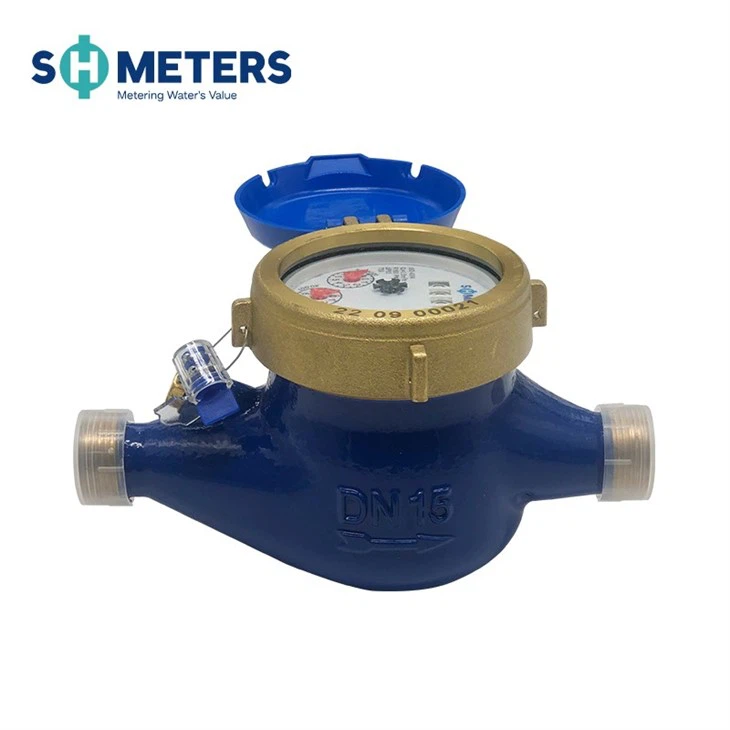

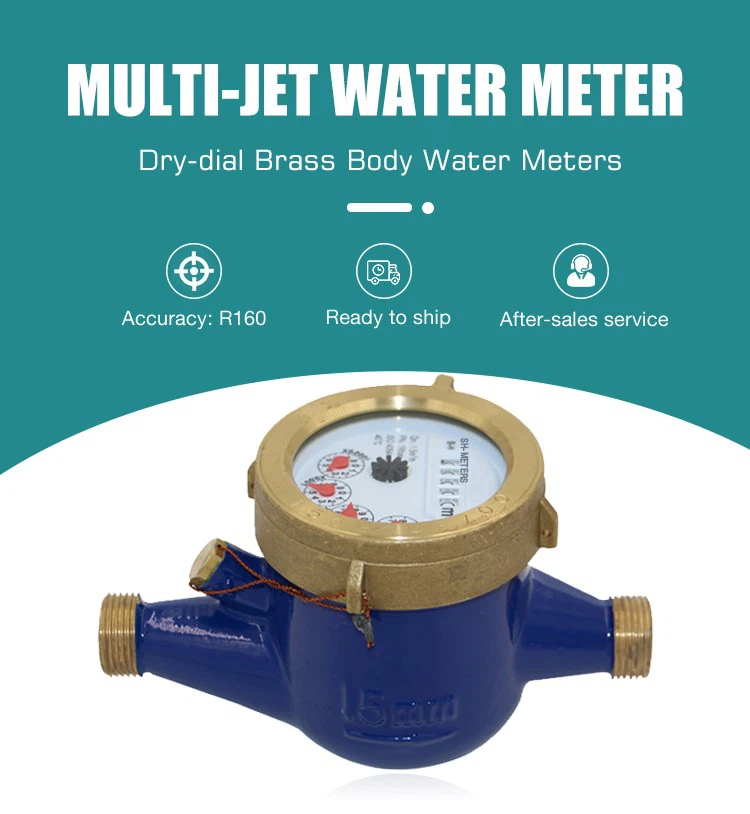

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi-jet dry water meter brass material household water meter in China. If you're going to wholesale high quality multi-jet dry water meter brass material household water meter, welcome to get pricelist and quotation from our factory.
The multi-jet water meter impeller box mold is made of high-quality materials with small errors and a high pass rate.
Multi-jet water meters, whether in the city, country, or outdoors, always sell well worldwide because of their stable performance, durable high precision, and economic features.
Product Features
Long magnetic drive life

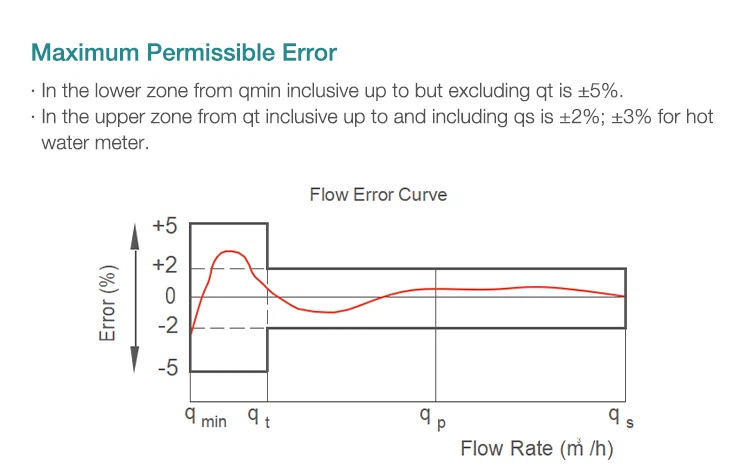

Accuracy: R160/200; Class B
Size: 1/2 inch to 2 inches
Reed switch can be chosen.

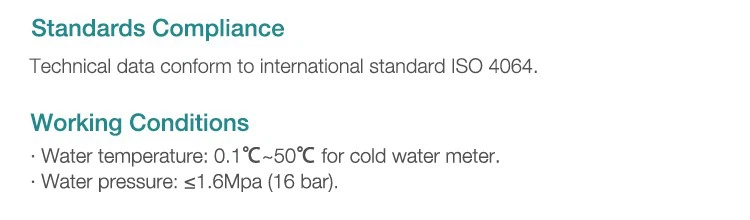

Working condition temperature: 0.1-30℃ for cold water.
The measurement accuracy reaches the ISO4064 standard.
Iron-shell water meters are prone to rust. We recommend the use of copper shields and copper connectors to ensure the quality and service life of the water meter.
Technical Data
|
DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
|
|
Size(inch |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|

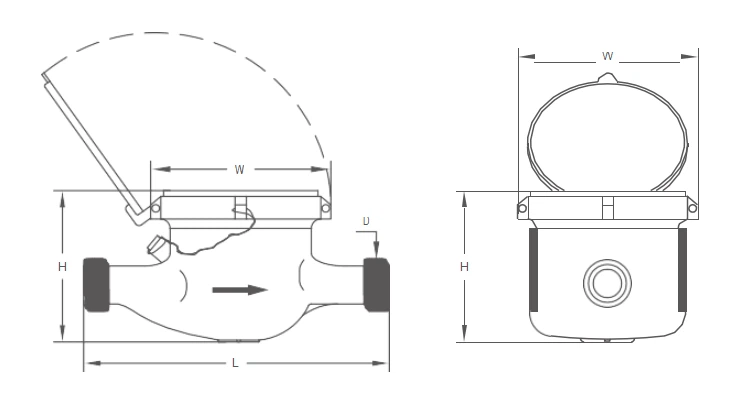

| Length(L) |
165/190 |
260 |
260 |
300 |
300 |
280 |
|
| Width(W) |
98 |
98 |
103.5 |
125 |
125 |
160 |
|
| Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
|
|
Q4(l/h) |
3125 |
5000 |
7875 |
12500 |
20000 |
31250 |
|
|
Q3(l/h) |
2500 |
4000 |
6300 |
10000 |
16000 |
25000 |
|
|
Max.Reading(m³) |
99,999 |
99,999 |
99,999 |
99,999 |
99,999 |
99,999 |
|
|
Min.Reading(Liter) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
|
Max.Pressure(Bar) |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
Pressure Loss |
63 |
||||||
|
Max.Temperature |
T=50/90 |
||||||
