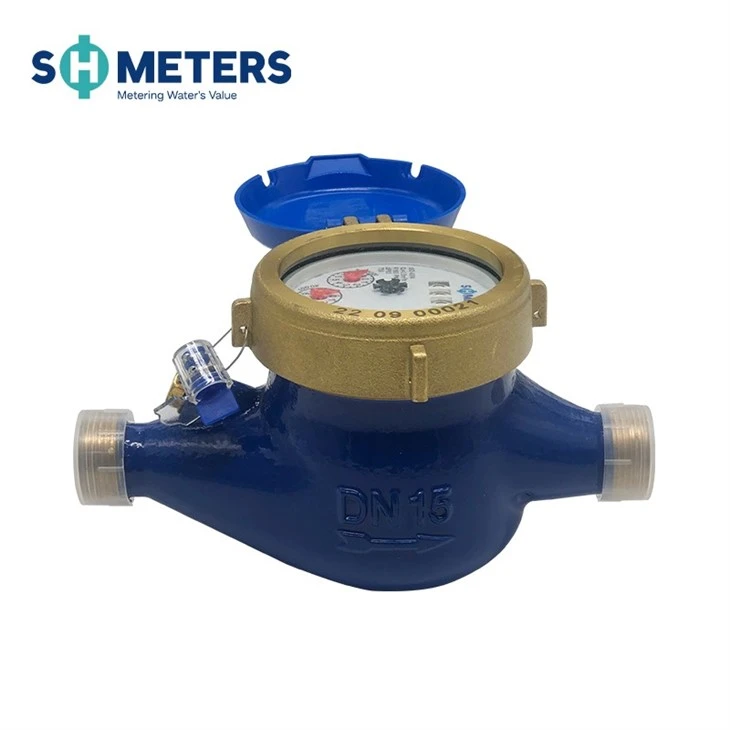

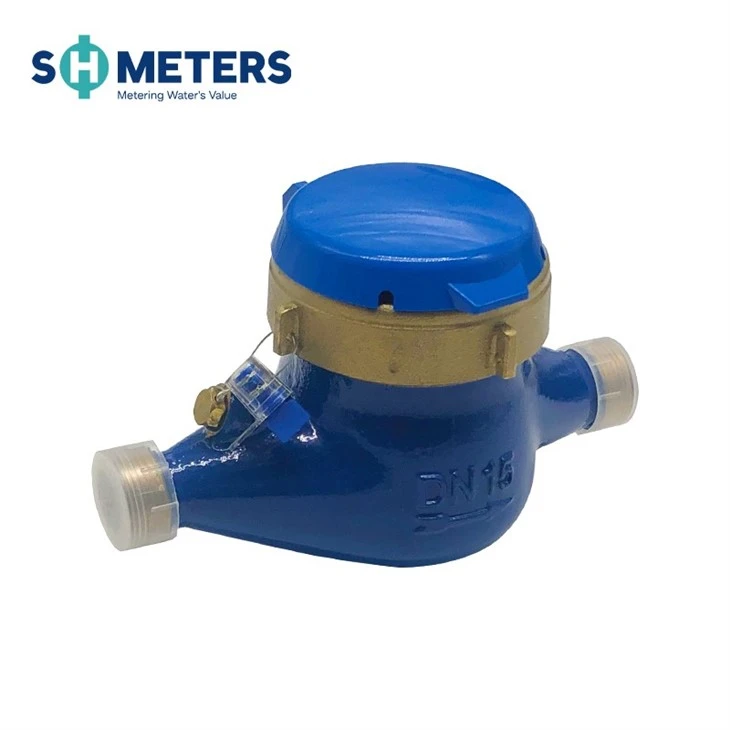

Multi jet mechanical clod water meter, the mechanism is made of 100% raw materials, without any waste, which enhances the wear resistance and ensures the stability of the counting part.
The movement is made of 100% raw material, without any waste, which enhances the wear resistance and ensures the stability of the counting part. The counter is vacuum sealed and the built-in desiccant is a long-drying dial that is not easy to fog. The metering accurately reaches the standard of iso4064, which is ±5% from the large allowable error in the low zone including the small flow rate to the low zone excluding the boundary flow; the large range from the boundary flow including the high flow including the overload flow Allowable error cold water meter is ±2%.
|
DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
50 |
|
Size(inch) |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2" |
|
Length(L) |
165/190 |
190 |
260 |
260 |
300 |
300 |
280 |
|
Width(W) |
98 |
98 |
103.5 |
103.5 |
125 |
125 |
160 |
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
187.5 |
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B |
Flange end |
|
Weight(kgs) |
1.65 |
1.79 |
1.85 |
2.68 |
5.25 |
7.25 |
|
