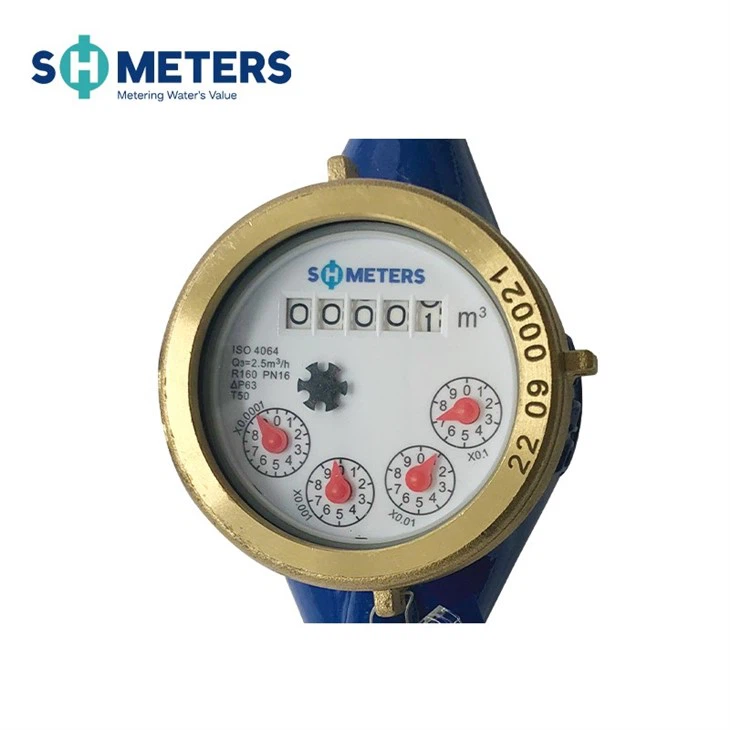

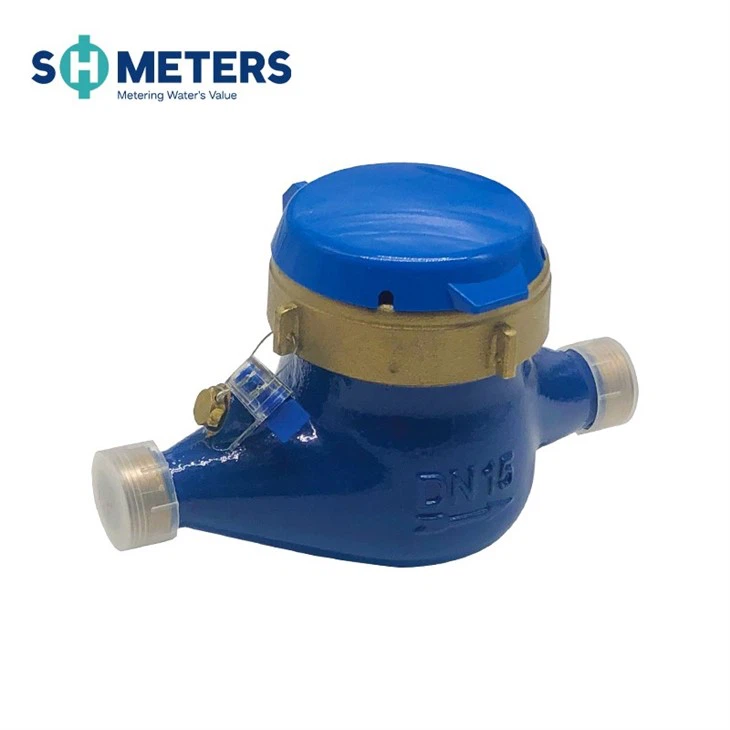

The multi-flow water meter is a water meter that uses the principle of multiple injections and is the most cost-effective and long-lasting flow-measuring instrument. The wide space in the measurement chamber and the negligible contact area between static and moving parts are the main reasons for the high reliability of the design even in hard water.
Water meters using the multi-injection principle are the best cost/performance, long-life flow measurement instruments. The wide gap in the measuring chamber and the contact area between the static and moving parts are negligible, which is the main reason why this design has high reliability even in hard water.
Features
1. Damper can be chosen: dry type, super dry type;
2. Check the valve.
3. Working conditions: Cold/hot water.
4.Water temperature: 0.1-40℃ for cold water meter; 0.1-90℃ for hot water meter.
5.DN15-40mm connection method for screw flange connection for DN50mm and above.
6. Magnetic drive with anti-magnetic function
7. Divided into several streams in the water meter
|
DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
50 |
|
Size(inch) |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2" |
|
Length(L) |
165/190 |
190 |
260 |
260 |
300 |
300 |
280 |
|
Width(W) |
98 |
98 |
103.5 |
103.5 |
125 |
125 |
160 |
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
187.5 |
FAQ
Q. Are you in the factory?
A.Yes. We are a factory. S.H.Meters specializes in producing all kinds of water meters and spare parts. Welcome to visit our factory anytime.
Q. What kind of certification do you have?
A. ISO4064.
Q. How to request a quotation from S.H.Meters?
A. Simply call or send us an E-mail with your purchase request. The detailed requirements (like the type, size, weight, package, and so on) that can be shared will be better for a quick quotation.
Q. What are your quality control procedures?
A. S.H.Meters strictly gets control of quality, which begins with the material purchase and carries through to the end of the production process by the lSO9001 management system. Before shipping, welcome the examination of goods.
Q. Do you offer OEM service?
A.Yes. We have a professional D&D team to follow requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do S.H.Meters products come with a warranty?
A.Yes. We back our products 100% with a generous 1-year warranty.
