Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi jet water meter r160 brass body with output pulse in China. If you're going to wholesale high quality multi jet water meter r160 brass body with output pulse, welcome to get pricelist and quotation from our factory.
Product Description

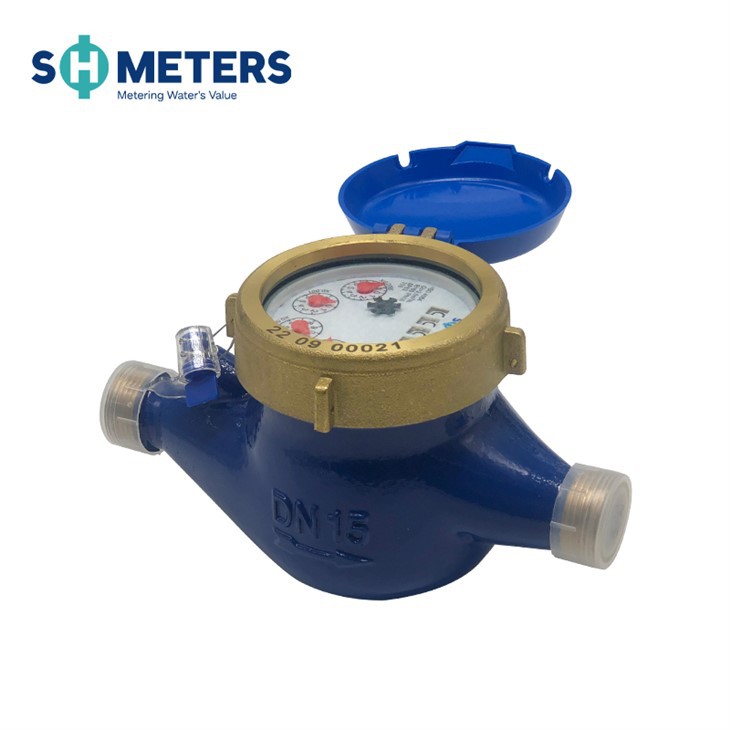

Item: Multi Jet Wet Brass Water Meter
Material: Brass meter body
Size: 15mm~50mm
Standard: ISO4064 Class B dry type, pulse output available.
Application: Measuring the volume of cold potable water passing through the pipeline.
MAIN FEATURE
All the materials in contact with water, consciously selected by the known resistance to corrosion;
can be used safely in water temperatures up to 50ºC(T50);
Super dry register capsule which ensures a clear reading in any operating conditions;
The Impeller is the only moving part in contact with water permitting the most reliable;
The magnetic transmission movement with the maximum reliability;
A nonreturn valve to avoid the reserve flow could be optional;
Metallic can capsule register for IP68 waterproof could be optional.
|

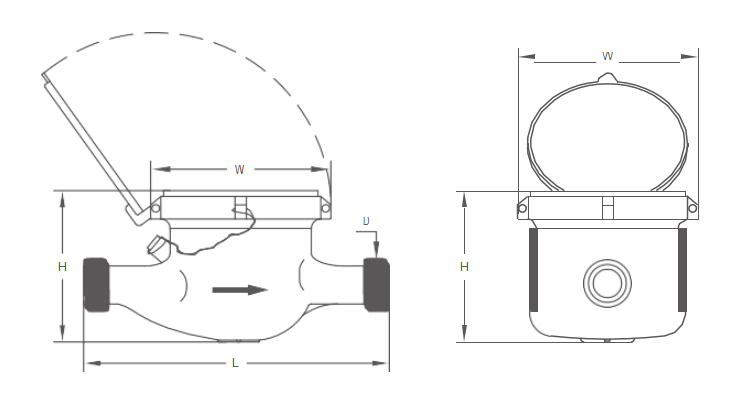

DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
|
|
Size(inch |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
|
Length(L) |
165/190 |
260 |
260 |
300 |
300 |
280 |
|
|
Width(W) |
98 |
98 |
103.5 |
125 |
125 |
160 |
|
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
|
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B |
|
|
Weight(kgs) |
1.65 |
1.79 |
1.85 |
2.68 |
5.25 |
7.25 |
|
